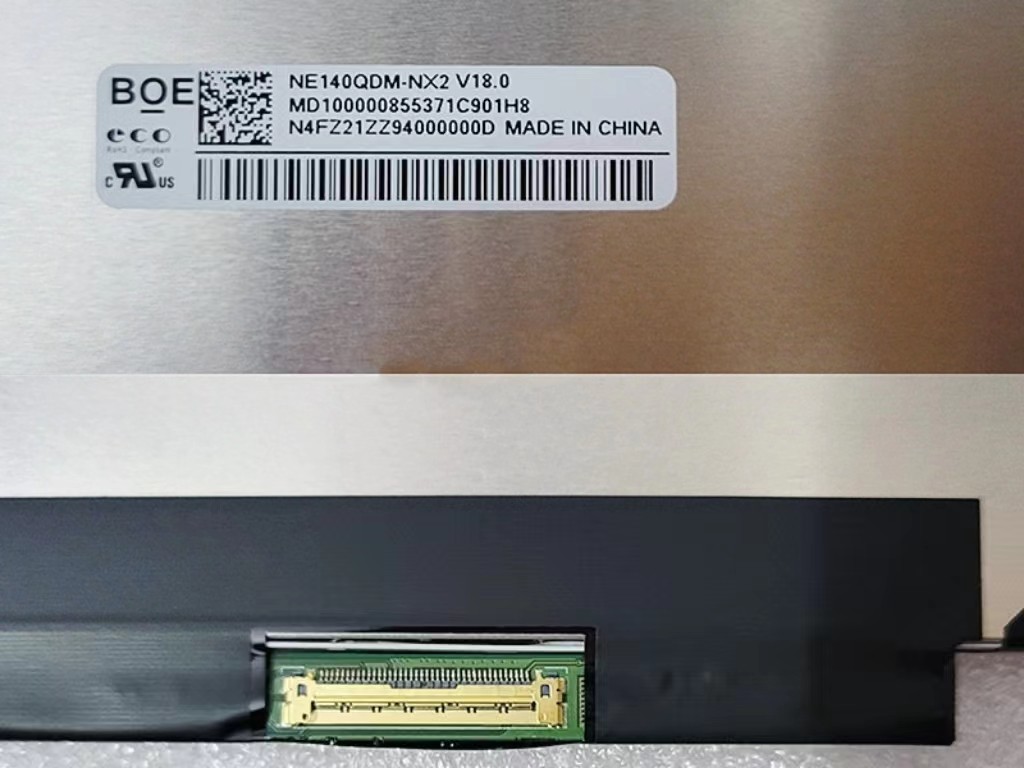

NE140QDM-NX2 BOE 2560(RGB)×1600, 89/89/89/89 INDUSTRIAL LCD DISPLAY

  • 1
  • 2
  • 3

Brand Name : BOE

Model Number : NE140QDM-NX2

Certification : ISO9001

Place of Origin : CHINA

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Delivery Time : 1-2DAYS

Packaging Details : STANDARD PACKING

Brand : BOE

Diagonal Size : 14.0"

Resolution : 2560(RGB)×1600, WQXGA 215PPI

Active Area : 301.824(W)×188.64(H) mm

Viewing Angle : 89/89/89/89 (Typ.)(CR≥10)

Environment : Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

Contact Now

BOE NE140QDM-NX2 Application Features

Basic Information : Brand Model Type Model Alias
  NE140QDM-NX2 Oxide TFT-LCD , LCM -
Reliability : RoHS Operating Temperature Storage Temperature Vibration Resistance
  0 ~ 50 °C -20 ~ 60 °C



BOE NE140QDM-NX2 Mechanical Features

Panel Size : 14.0 inch
Pixel Features : Resolution Pixel Arrangement Dot Pitch (W×H) Pixel Pitch (W×H)
2560(RGB)×1600, WQXGA RGB Vertical Stripe 0.0393×0.1179 mm 0.1179×0.1179 mm [215PPI]
Mechanical Size : Active Area (W×H) Bezel Area (W×H) Outline Dimension (W×H) Outline Depth
301.824×188.64 mm - - -
Outline Features : Form Style Aspect Ratio Orientation Shape Style
Flat Rectangle 16:10 (W : H) Landscape type Slim (PCBA Flat, T≤3.2mm)
Fixation : Without



BOE NE140QDM-NX2 Optical Features

Basic Information : Brightness Operating Mode Contrast Ratio
- ADS, Normally Black, Transmissive 1000:1 (Typ.) (Transmissive)
Viewing Angle(L/R/U/D) Viewing Direction Response Speed
89/89/89/89 (Typ.)(CR≥10) Symmetry 25 (Typ.)(Tr+Td) (ms)
Dispaly Color : Color Temperature Color Amount White color Chromaticity
- 16.7M (8-bit)



BOE NE140QDM-NX2 Interface Features

Signal Electrical : Current Input Voltage Input Consumption
- 3.3V (Typ.) -
Interface Features : Position Type Interface
  Connector eDP (2 Lanes), eDP1.4, HBR2 (5.4G/lane)
Signal Interface : Brand Model Amount Pin Pitch Pins Pin Assignment
I-PEX 20455-040E-76 1 pcs 0.5 mm 40 pins



BOE NE140QDM-NX2 Backlight Features

Backlight Features: Type Position Shape Amount  Life(Hours) Replacement
WLED Edge light type - - 15K(Min.) -
Interface Features : Position Type WLED Driver
- Included in signal interface With LED Driver



whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 301.824(W)×188.64(H) mm, shape stype of Slim (PCBA Flat, T≤3.2mm). As a ADS, Normally Black, Transmissive LCM product, NE140QDM-NX2 can provides 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors. This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. NE140QDM-NX2 utilizes eDP (2 Lanes) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.).
