BOE PV121X0B-N10 Application Details
| Basic Info : | Panel Brand | | Panel Model | PV121X0B-N10 |
| Diagonal Size | 12.1" | Application | |
| Panel Type | a-Si TFT-LCD , CELL | Model Alias | - |
| Reliability : | Operating Temp. | -20 ~ 70 °C | Storage Temp. | -30 ~ 80 °C |
BOE PV121X0B-N10 Mechanical Details
| Pixel Features : | Pixel Format | 1024(RGB)×768 [XGA] | Dot Pitch | 0.080×0.240 mm (H×V) |
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.240×0.240 mm (H×V) [105PPI] |
| Mechanical Size : | Display Area | 245.76×184.32 mm (H×V) | Bezel Area | - |
| Outline Dim. | 252.76×194.42 mm (H×V) | Outline Depth | 1.06±0.1 mm |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 4:3 (H:V) | Plate Thickness | 0.40+0.40 mm |
BOE PV121X0B-N10 Optical Details
| Basic Information : | Brightness | 0 cd/m² | Contrast Ratio | 1200:1 (Typ.) (Transmissive) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Optical Mode | ADS, Normally Black, Transmissive |
| Viewing Direction | Symmetry | Response Time | 30 (Typ.)(Tr+Td) (ms) |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 16.7M (8-bit) |
| Color Temperature | 6485K | White Uniformity | - |
| 1931 Color Gamut : | NTSC Ratio | 73% | sRGB | 93% coverage |
| Adobe RGB | 72% coverage | DCI-P3 | 75% coverage |
| Rec.2020 | 54% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
BOE PV121X0B-N10 Electronics Details
| Frame Frequency : | 60Hz |
| Reverse Scan : | No |
BOE PV121X0B-N10- Interface Details
| Signal Systerm : | LVDS (1 ch, 8-bit) | Logic Voltage | - |
| Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | 235±15mA |
| Consumption | 0.72/0.78/1.65W (Min./Typ./Max.) |
| Interface Features : | Type | Connector | Position | - | |
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| | 9006F20-0048RQ-G4 | | 20 pins | 1 pcs |
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 245.76(W)×184.32(H) mm, outline size of 252.76(W)×194.42(H)×1.06(D) mm, utilizing 0.40+0.40 mm mm plate. As a ADS, Normally Black, Transmissive CELL product, PV121X0B-N10-3850 can provides 1200:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC). This product have no backlight. PV121X0B-N10 utilizes LVDS (1 ch, 8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.).
|
|

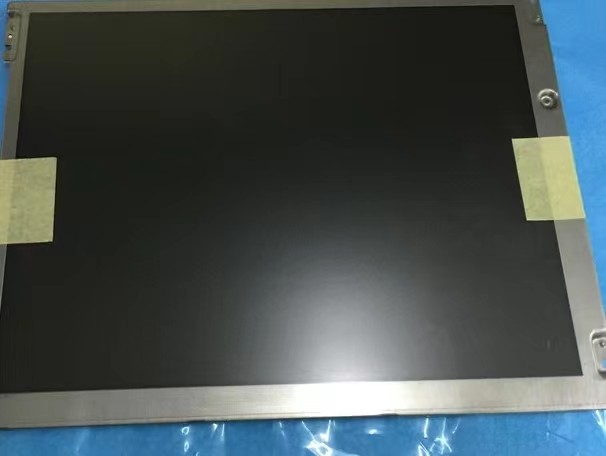

PV121X0B-N10 BOE 12.1" 1024(RGB)×768, 85/85/85/85 (Typ.)(CR≥10 INDUSTRIAL LCD DISPLAY Images
|
