BOE NV156FHM-N4V Application Features
| Basic Information : | Brand | Model | Type | Model Alias |
| | NV156FHM-N4V | a-Si TFT-LCD , LCM | BOE0928 |
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| | 0 ~ 50 °C | -20 ~ 60 °C |
BOE NV156FHM-N4V Mechanical Features
| Panel Size : | 15.6 inch |
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 1920(RGB)×1080, FHD | RGB Vertical Stripe | 0.05975×0.17925 mm | 0.17925×0.17925 mm [141PPI] |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 344.16×193.59 mm | - | 350.66×205.69 mm | 3.0/5.4 (Typ./Max.) mm |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 16:9 (W : H) | Landscape type | Slim (PCBA Bent, T≤3.0mm) |
| Fixation : | Without |
| Other Features : | Panel Cover | Weight | Surface |
| - | 380g (Max.) | Hard coating (3H) |
BOE NV156FHM-N4V Optical Features
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
| 250 cd/m² (Typ.) | ADS, Normally Black, Transmissive | 700:1 (Typ.) (Transmissive) |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed |
| 89/89/89/89 (Typ.)(CR≥10) | Symmetry | 30 (Typ.)(Tr+Td) (ms) |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 6485K | 262K (6-bit) | X:0.313; Y:0.329 |
| 1931 Color Gamut : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 45% | 63% | 47% |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks |
| 47% | 34% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Luminance Variation : | 1.25/1.54 (Max.)(5/13 points) |
BOE NV156FHM-N4V Interface Features
| Signal Electrical : | Current Input | Voltage Input | Consumption |
| 267mA (Max.) | 3.3V (Typ.) | 0.88W (Max.) |
| Interface Features : | Position | Type | Interface |
| | Connector | eDP (2 Lanes), HBR1 (2.7G/lane) |
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| STM | MSAK24025P30G | 1 pcs | 0.5 mm | 30 pins | EDP-30P2L-020V |
BOE NV156FHM-N4V Backlight Features
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
| WLED | Edge light type (Bottom side) | 4 strings | 10S4P | 15K(Min.) | - |
| Interface Features : | Position | Type | WLED Driver |
| - | Included in signal interface | With LED Driver |
| Driver Electrical : | Current Input | Voltage Input | Consumption |
| - | 5.0/12.0/21.0V (Min./Typ./Max.) | 3W (Max.) |
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 344.16(W)×193.59(H) mm, outline size of 350.66(W)×205.69(H)×5.4(D) mm, with surface treament of Hard coating (3H), net weight of 380g (Max.), shape stype of Slim (PCBA Bent, T≤3.0mm). As a ADS, Normally Black, Transmissive LCM product, NV156FHM-N4V can provides 250 cd/m² display brightness 700:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 45% (NTSC). This product adopted 10S4P WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 15K hours, With LED Driver. NV156FHM-N4V utilizes eDP (2 Lanes) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.)
|
|

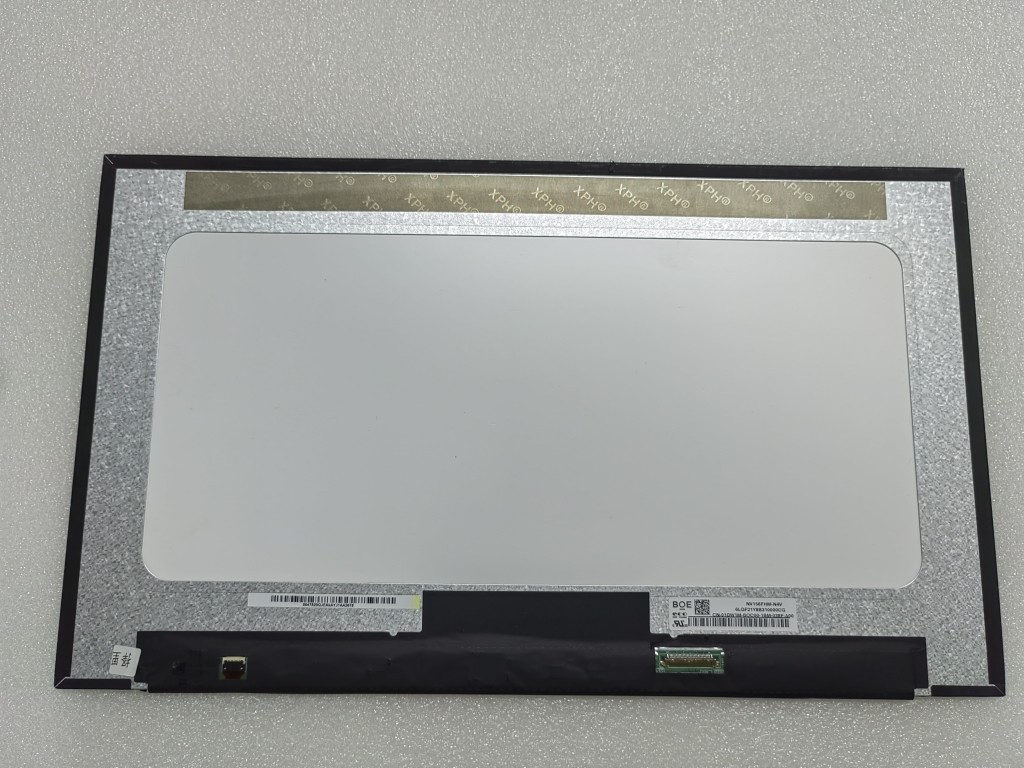

NV156FHM-N4V BOE 15.6" 1920(RGB)×1080, 250 cd/m² INDUSTRIAL LCD DISPLAY Images
|
