NT156WHM-N42 BOE 15.6" 1366(RGB)×768, 220 cd/m² INDUSTRIAL LCD DISPLAY

Sapientia Display Co.,LIMITED
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

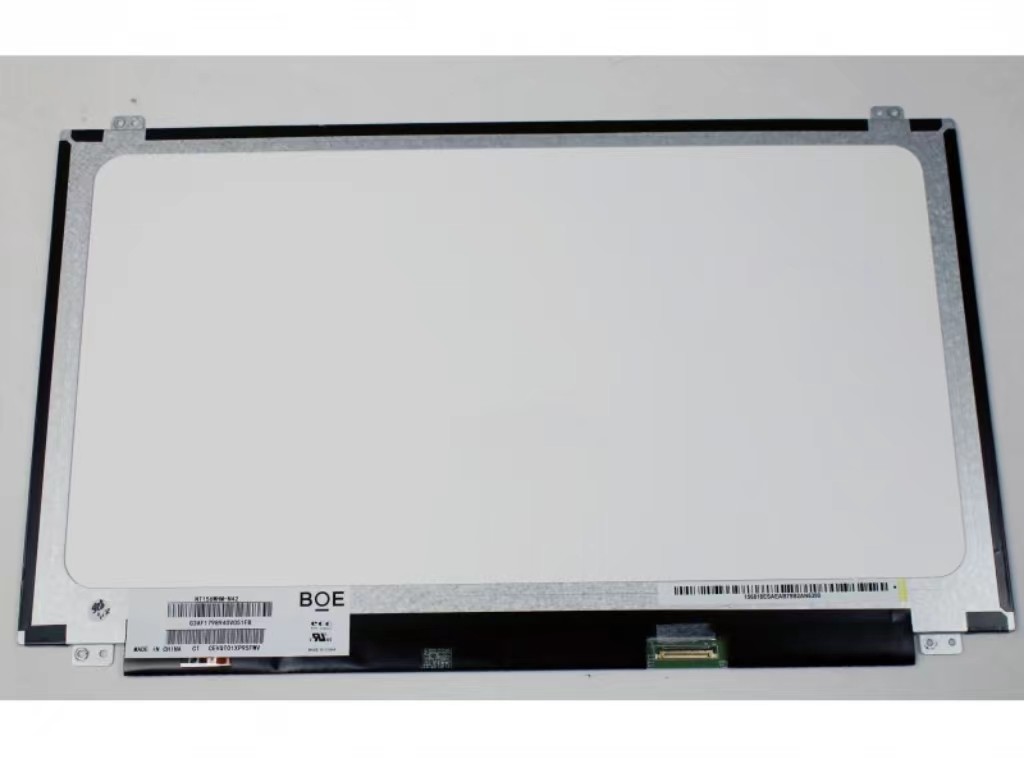

NT156WHM-N42 BOE 15.6" 1366(RGB)×768, 220 cd/m² INDUSTRIAL LCD DISPLAY

  • 1
  • 2
  • 3

Brand Name : BOE

Model Number : NT156WHM-N42

Certification : ISO9001

Place of Origin : CHINA

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Delivery Time : 1-2DAYS

Packaging Details : STANDARD PACKING

Brand : BOE

Diagonal Size : 15.6"

Resolution : 1366(RGB)×768, WXGA 100PPI

Luminance : 220 cd/m²

Viewing Angle : 45/45/20/40 (Typ.)(CR≥10)

Environment : Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

Contact Now

BOE NT156WHM-N42 Application Details

Basic Info : Panel Brand   Panel Model NT156WHM-N42  14 Compatible
Diagonal Size 15.6" Application




  •
Panel Type a-Si TFT-LCD , LCM Model Alias -
Reliability : Operating Temp. 0 ~ 50 °C Storage Temp. -20 ~ 60 °C
RoHS State   Vibration Rating 1.5G (14.7 m/s²)



BOE NT156WHM-N42 Mechanical Details

Pixel Features : Pixel Format 1366(RGB)×768 [WXGA] Dot Pitch 0.084×0.252 mm (H×V)
Configuration RGB Vertical Stripe Pixel Pitch 0.252×0.252 mm (H×V) [100PPI]
Mechanical Size : Display Area 344.232×193.536 mm (H×V) Bezel Area -
Outline Dim. 359.5×223.8 mm (H×V) Outline Depth 3.05/3.2 (Typ./Max.) mm
Outline Features : Form Factor Flat Rectangle Orientation Landscape type
Aspect Ratio 16:9 (H:V) Shape Style Slim (PCBA Flat, T≤3.2mm)
Holes & Brackets : Face mounting holes (8 pcs) on up, down slugs
Other Features : Weight 370g (Max.) Surface Antiglare (Haze 25%), Hard coating (3H)



BOE NT156WHM-N42 Optical Details

Basic Information : Brightness 220 cd/m² (Typ.) Contrast Ratio 500:1 (Typ.) (Transmissive)
Viewing Angle 45/45/20/40 (Typ.)(CR≥10) Optical Mode TN, Normally White, Transmissive
Viewing Direction 6 o'clock Response Time 12 (Typ.)(Tr+Td) (ms)
Color Performance : Chromaticity Wx:0.313; Wy:0.329 Color Numbers 262K (6-bit)
Color Temperature 6485K White Uniformity 1.25/1.54 (Max.)(5/13 points)
1931 Color Gamut : NTSC Ratio 47% sRGB 67% coverage
Adobe RGB 49% coverage DCI-P3 49% coverage
Rec.2020 35% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



BOE NT156WHM-N42 Backlight Details

Back-light Features: Lamp Shape 4 strings Lamp Type WLED Life Time 15K(Min.) (Hours)
Replacement - Amount 9S4P Position Edge light type
Interface Features : Type Included in signal interface Position - Lamp Driver With LED Driver
Driver Electrical : Voltage Input 5.0/12.0/21.0V (Min./Typ./Max.) Current Input -
Consumption 2.6W (Max.)



BOE NT156WHM-N42 Interface Details

Signal Systerm : eDP (1 Lane), eDP1.2, RBR (1.62G/lane) Logic Voltage -
Signal Electrical : Voltage Input 3.3V (Typ.) Current Input -
Consumption 1.02/1.2W (Typ./Max.)
Interface Features : Type Connector Position
Connector Detail : Brand Model Pin Pitch Pins Amount Configuration
UJU IS050-L30B-C10 0.5 mm 30 pins 1 pcs EDP-30P1L-030A



whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 344.232(W)×193.536(H) mm, outline size of 359.5(W)×223.8(H)×3.2(D) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 370g (Max.), shape stype of Slim (PCBA Flat, T≤3.2mm). As a TN, Normally White, Transmissive LCM product, NT156WHM-N42 can provides 220 cd/m² display brightness 500:1 transimissive contrast ratio, 45/45/20/40 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 12 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 45% (NTSC). This product adopted 9S4P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. NT156WHM-N42 utilizes eDP (1 Lane) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.).
