ATNA56WR18 ATNA56WR18 15.6" 3840(RGB)×2160, 440 cd/m² INDUSTRIAL LCD DISPLAY

  • 1
  • 2
  • 3

Brand Name : ATNA56WR18

Model Number : ATNA56WR18

Certification : ISO9001

Place of Origin : CHINA

MOQ : 1PCS

Payment Terms : TT/PAYPAL/WESTERN UNION/ESCROWS

Delivery Time : 1-2DAYS

Packaging Details : STANDARD PACKING

Brand : ATNA56WR18

Diagonal Size : 15.6"

Resolution : 3840(RGB)×2160, UHD 283PPI

Brightness : 440 cd/m²

Viewing Angle : 85/85/85/85 (Typ.)(CR≥10)

Environment : Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -40 ~ 85 °C

Contact Now

Samsung ATNA56WR18 Application Features

Basic Information : Brand Name Model Name Type Model Alias
  ATNA56WR18 AM-OLED , OLED SDC415F
Maximum Ratings : RoHS Operating Temperature Storage Temperature Vibration Level
  -20 ~ 70 °C -40 ~ 85 °C



Samsung ATNA56WR18 Mechanical Features

Screen Size : 15.6"
Pixel Features : Pixel Number Pixel Format Dot Pitch (H×V) Pixel Pitch (H×V)
3840(RGB)×2160, UHD RGB Vertical Stripe 0.02988×0.08964 mm 0.08964×0.08964 mm [283PPI]
Mechanical Size : Display Area (H×V) Bezel Opening (H×V) Overall Dimension (H×V) Overall Depth
344.218×193.622 mm - 348.218×215.662 mm 1.38/2.9 (Typ./Max.) mm
Outline Features : Form Shape Aspect Ratio (H:V) Orientation Shape Style
Flat Rectangle 16:9 Landscape / Portrait Slim (PCBA Flat, T≤3.2mm)
Other Spec : Mass Panel Cover Surface Treatment
200g (Max.) - Glare (Haze 0%)



Samsung ATNA56WR18 Optical Features

Basic Information : Luminance Work Mode Contrast Ratio
440 cd/m² (Typ.) - 100000:1 (Typ.) (Transmissive)
Good View at Viewing Angle Response Time
Symmetry 85/85/85/85 (Typ.)(CR≥10) 1 (Typ.)(Tr+Tf) (ms)
Dispaly Color : Color Temperature: Support Color Color Coordinate
6485K 1.06B (8-bit + FRC) X:0.313; Y:0.329
1931 Color Gamut : NTSC Ratio sRGB Coverage Adobe RGB Coverage
107% 100% 97%
DCI-P3 Coverage Rec.2020 Coverage Remarks
100% 80% sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
White Uniformity : 1.18/1.33 (Typ./Max.)(13 points)



Samsung ATNA56WR18 Interface Features

Signal Electrical : Input Voltage Input Current Power Consumption
3.3V (Typ.) 573±86mA 1.9±0.3W
Interface Features : Signal Type Physical Type Interface Position
eDP (4 Lanes), eDP1.4b, HBR2 (5.4G/lane) Connector
Interface Detail : Brand Name Model Name Amount Pins Pin Pitch Pin Configuration
I-PEX 20455-040E-02 1 pcs 40 pins 0.5 mm



whose pixels are arranged in RGB Vertical Stripe, according to calculation of Panelook it's pixel density is 283 PPI. As for mechanical detail, it features active area of 344.218(W)×193.622(H) mm, outline size of 348.218(W)×215.662(H)×2.9(D) mm, with surface treament of Glare (Haze 0%), net weight of 200g (Max.), shape stype of Slim (PCBA Flat, T≤3.2mm). ATNA56WR18 can provides 440 cd/m² display brightness 100000:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 1 (Typ.)(Tr+Tf) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit + FRC gray scale signal for each dot, thus presenting a palette of 1.06B colors, also with performance of color gamut 100% (DCI-P3). This product emiting itself . ATNA56WR18 utilizes eDP (4 Lanes) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.)



ATNA56WR18 ATNA56WR18 15.6" 3840(RGB)×2160, 440 cd/m² INDUSTRIAL LCD DISPLAY


Buy cheap ATNA56WR18 ATNA56WR18 15.6" 3840(RGB)×2160, 440 cd/m² INDUSTRIAL LCD DISPLAY product

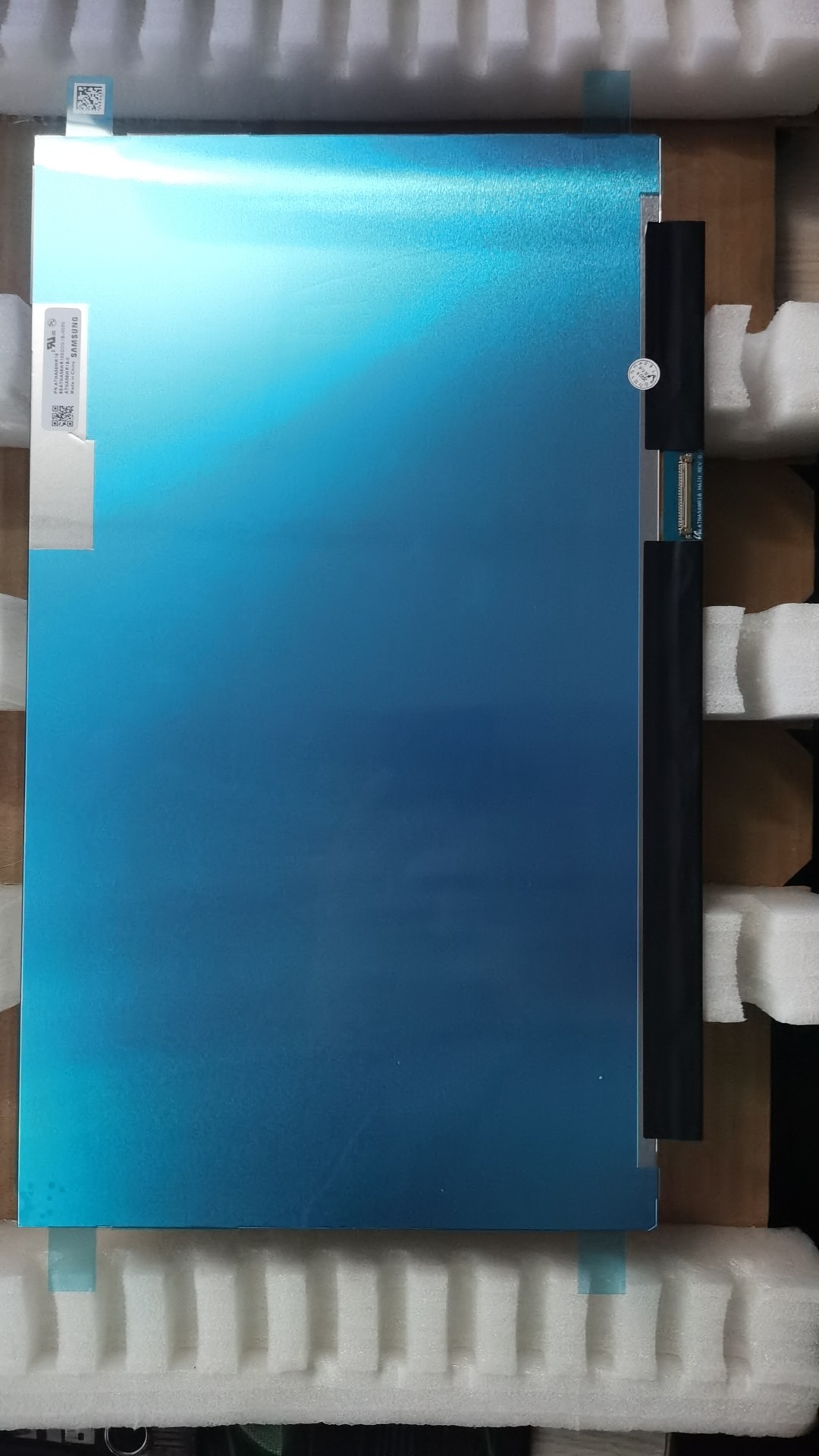

ATNA56WR18 ATNA56WR18 15.6" 3840(RGB)×2160, 440 cd/m² INDUSTRIAL LCD DISPLAY Images
