B140QAN03.H AUO 14.0" 2560(RGB)×1600 89/89/89/89 (Typ.)(CR≥10) INDUSTRIAL LCD DISPLAY

Brand Name : AUO

Model Number : B140QAN03.H

Certification : ISO9001

Place of Origin : CHINA

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Delivery Time : 1-2DAYS

Packaging Details : STANDARD PACKING

Brand : AUO

Diagonal Size : 14.0"

Resolution : 2560(RGB)×1600 215PPI

Viewing Angle : 89/89/89/89 (Typ.)(CR≥10)

Environment : Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

Contact Now

AUO B140QAN03.H Application Details

Basic Information :	Brand		Model	B140QAN03.H
	Type	LCM LTPS TFT-LCD	Used For
	Screen Size	14.0"	Alias	-
Environment :	Storage Temp.	-20 ~~ 60 °C	Operating Temp.	0 ~~ 50 °C

AUO B140QAN03.H Mechanical Details

Pixel Features :	Resolution	2560(RGB)×1600	Dot Pitch(mm)	0.03927×0.11781 (H×V)
Pixel Features :	Pixel Format	RGB Vertical Stripe	Pixel Pitch(mm)	0.11781×0.11781 (H×V) [215PPI]
Mechanical Size :	Active Area(mm)	301.594(H) × 188.496(V)	Bezel Area(mm)	-
Outline Features :	Form Style	Flat Rectangle	Outline Shape
Outline Features :	Aspect Ratio	16:10 (H:V)	Orientation

AUO B140QAN03.H Optical Details

Basic Information :	Luminance(cd/m²)	-	Contrast Ratio	1000:1 (Typ.) (Transmissive)
	Viewing Angle	89/89/89/89 (Typ.)(CR≥10)	Display Mode	AHVA, Normally Black, Transmissive
	Best View on	Symmetry	Response(ms)	-
Color Performance :	White Coordinate	-	Display Colors	16.7M (8-bit)

whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 301.594(W)×188.496(H) mm. As a AHVA, Normally Black, Transmissive LCM product, B140QAN03.H can provides 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry . Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors. This product adopted WLED as it's backlight systerm which was placed as Edge light type. B140QAN03.H utilizes eDP as it's signal inputting systerm. For more latest product detail of B140QAN03.H we strongly recommend that you should refer to datasheet listed on Panelook.com or contact with AUO.

B140QAN03.H AUO 14.0" 2560(RGB)×1600 89/89/89/89 (Typ.)(CR≥10) INDUSTRIAL LCD DISPLAY

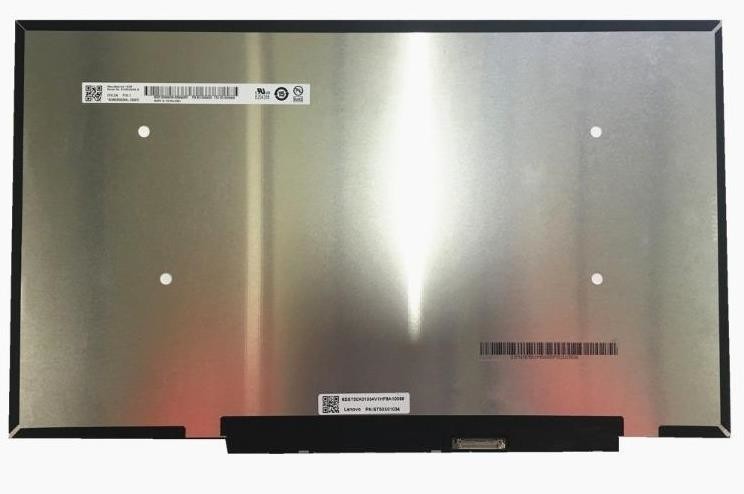

B140QAN03.H AUO 14.0" 2560(RGB)×1600 89/89/89/89 (Typ.)(CR≥10) INDUSTRIAL LCD DISPLAY Images
