LG Display LM215WF3-SLC1 Mechanical Details
| Pixel Features : | Resolution | 1920(RGB)×1080, FHD | Dot Pitch(mm) | 0.0825×0.2475 (H×V) |
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.2475×0.2475 (H×V) [102PPI] |
| Mechanical Size : | Active Area(mm) | 475.2(H) × 267.3(V) | Bezel Area(mm) | 478.8(H) × 271.3(V) |
| Outline Dim.(mm) | 495.6(H) × 292.2(V) | Depth(mm) | 7.8/10.7 (Typ./Max.) |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | Normal bezel |
| Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type |
| Mounting : | Side mounting holes (4-M3) on left, right bezel |
| Other Spec : | Weight | 1.19/1.25Kgs (Typ./Max.) | Treatment | Antiglare, Hard coating (3H) |
LG Display LM215WF3-SLC1 Optical Details
| Basic Information : | Luminance(cd/m²) | 250 (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Display Mode | IPS, Normally Black, Transmissive |
| Best View on | Symmetry | Response(ms) | 14 (Typ.)(G to G) |
| Color Performance : | White Coordinate | X:0.313; Y:0.329 | Display Colors | 16.7M (6-bit + Hi-FRC) |
| Color Temperature | 6485K | White Uniformity | 1.33 (Max.)(9 points) |
| 1931 Color Gamut : | NTSC Ratio | 75% | sRGB | 96% coverage |
| Adobe RGB | 74% coverage | DCI-P3 | 77% coverage |
| Rec.2020 | 56% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
LG Display LM215WF3-SLC1 Interface Details
| Signal Electrical : | Voltage Supply | 5.0V (Typ.) | Current Supply | 700/805mA (Typ./Max.)(60Hz) |
| Consumption | 3.5/4.03W (Typ./Max.) |
| Signal Type : | LVDS (2 ch, 8-bit) | Signal Voltage | - |
| Interface Features : | Position | | Type | Connector |
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| UJU | IS100-L30O-C23 | 1 pcs | 30 pins | 1.0 mm | LVDS-30P2C8B-160C |
LG Display LM215WF3-SLC1 Backlight Details
| Backlight Features: | Shape | 4 strings | Type | WLED | Position | Edge light type (Bottom side) |
| Replacement | - | Quantity | 13S4P | Life Time | 30K(Min.) (Hours) |
| Lamp Electrical : | Voltage Supply | 40.3±2.6V | Current Supply | 90/95mA (Typ./Max.) |
| Consumption | 14.5W (Typ.) |
| Interface Features : | Position | | Type | Connector |
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| YEONHO | 10019HR-H06B | 1 pcs | 6 pins | 1.0 mm | BLE-6PINS-CCAACC |
| Backlight Driver : | No |
LG Display LM215WF3-SLC1 Application Details
| Basic Information : | Brand | | Model | LM215WF3-SLC1 |
| Type | LCM a-Si TFT-LCD | Used For | |
| Screen Size | 21.5" | Alias | LM215WF3 (SL)(C1) |
| Environment : | Storage Temp. | -20 ~~ 60 °C | Operating Temp. | 0 ~~ 50 °C |
| RoHS | | Vibration | - |
| Typical Features : | |
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 475.2(W)×267.3(H) mm, outline size of 495.6(W)×292.2(H)×10.7(D) mm, viewing area size of 478.8(W)×271.3(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 1.19/1.25Kgs (Typ./Max.). As a IPS, Normally Black, Transmissive LCM product, LM215WF3-SLC1 can provides 250 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 14 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted 13S4P WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 30K hours, external backlight driver is additionally needed. LM215WF3-SLC1 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0V (Typ.). It's typical vertical frame rate (Fv) is 75Hz. For more latest product detail of LM215WF3-SLC1 We strongly recommend that you should refer to datasheet listed on Panelook.com or contact with LG Display or it's distributor. All specification details are inputted by Panelook engineers according to datasheet, but we cannot guarantee the spec listed is entirely correct.
|
|

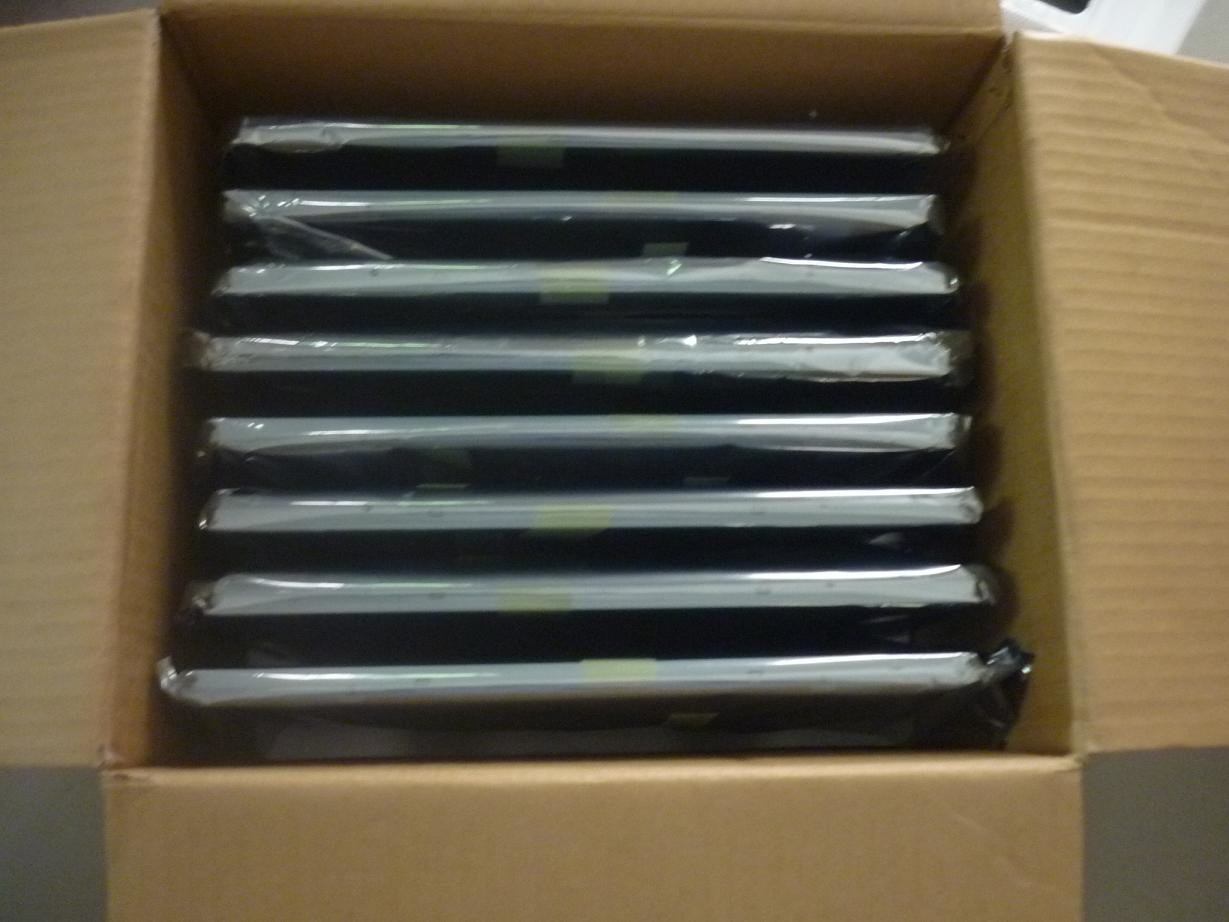

LM215WF3-SLC1 LG Display 21.5" 1920(RGB)×1080, FHD 102PPI 250 cd/m² INDUSTRIAL LCD DISPLAY Images
|
