LG Display LM270WF7-SLD1 Mechanical Details
| Pixel Features : | Pixel Format | 1920(RGB)×1080 [FHD] | Dot Pitch | 0.1038×0.3114 mm (H×V) |
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.3114×0.3114 mm (H×V) [81PPI] |
| Mechanical Size : | Display Area | 597.888×336.312 mm (H×V) | Bezel Area | 601.5×339.95 mm (H×V) |
| Outline Dim. | 611.5×355.8 mm (H×V) | Outline Depth | 9.5/14.0 (Typ./Max.) mm |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 16:9 (H:V) | Shape Style | Normal bezel |
| Holes & Brackets : | Without |
| Other Features : | Weight | 2.87/3.01Kgs (Typ./Max.) | Surface | Antiglare (Haze 25%), Hard coating (3H) |
LG Display LM270WF7-SLD1 Optical Details
| Basic Information : | Brightness | 300 cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Optical Mode | IPS, Normally Black, Transmissive |
| Viewing Direction | Symmetry | Response Time | 14 (Typ.)(G to G) (ms) |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 16.7M (6-bit + Hi-FRC) |
| Color Temperature | 6485K | White Uniformity | 1.33 (Max.)(9 points) |
| 1931 Color Gamut : | NTSC Ratio | 72% | sRGB | 95% coverage |
| Adobe RGB | 74% coverage | DCI-P3 | 75% coverage |
| Rec.2020 | 54% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
LG Display LM270WF7-SLD1 Backlight Details
| Back-light Features: | Lamp Shape | 4 strings | Lamp Type | WLED | Life Time | 30K(Min.) (Hours) |
| Replacement | - | Amount | 17S4P | Position | Edge light type (Bottom side) |
| Lamp Electrical : | Voltage Input | 51.0±3.4V | Current Input | 75/80mA (Typ./Max.) |
| Consumption | 15.2/16.4W (Typ./Max.) |
| Interface Features : | Type | Connector | Position | | Lamp Driver | No |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JST | BM06B-SHJS-TB(HF) | 1.0 mm | 6 pins | 1 pcs | BLE-6PINS-CCAACC |
LG Display LM270WF7-SLD1 Interface Details
| Signal Systerm : | LVDS (2 ch, 8-bit) | Logic Voltage | - |
| Signal Electrical : | Voltage Input | 5.0V (Typ.) | Current Input | 470/585mA (Typ./Max.) |
| Consumption | 2.35/2.92W (Typ./Max.) |
| Interface Features : | Type | Connector | Position | | |
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| UJU | IS100-L30O-C23 | 1.0 mm | 30 pins | 1 pcs | LVDS-30P2C8B-170C |
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 597.888(W)×336.312(H) mm, outline size of 611.5(W)×355.8(H)×14(D) mm, viewing area size of 601.5(W)×339.95(H) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 2.87/3.01Kgs (Typ./Max.). As a IPS, Normally Black, Transmissive LCM product, LM270WF7-SLD1 can provides 300 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 14 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted 17S4P WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 30K hours, external backlight driver is additionally needed. LM270WF7-SLD1 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz. For more latest product detail of LM270WF7-SLD1 We strongly recommend that you should refer to datasheet listed on Panelook.com or contact with LG Display or it's distributor.
|
|

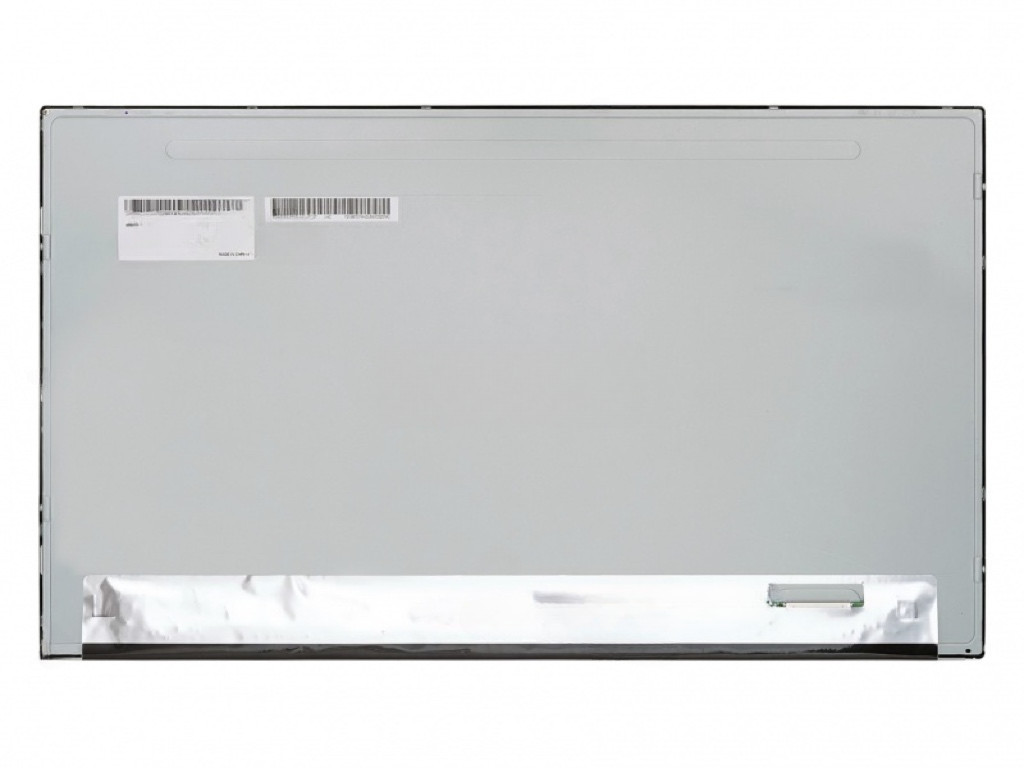

LM270WF7-SLD1 LG Display 27" 1920(RGB)×1080, FHD 81PPI 300 cd/m² INDUSTRIAL LCD DISPLAY Images
|
