G057AGE-T01 Innolux 5.7" 320(RGB)×240 500 cd/m² INDUSTRIAL LCD DISPLAY

Brand Name : INNOLUX

Model Number : G057AGE-T01

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Supply Ability : 500PCS

Delivery Time : 1-2 DAYS

Packaging Details : STANDARD PACKING

MODEL NUMBER : G057AGE-T01

BRAND : INNOLUX

SIZE : 5.7INCH

BRIGHTNESS : 500CD/M2

Lamp Type : WLED

RESOLUTION : 320(RGB)×240, QVGA, 70PPI

VIEWING ANGLEG : 80/80/70/70 (Typ.)(CR≥10)

TEMPERATURE RANGE : Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -30 ~ 85 °C

Contact Now

Innolux G057AGE-T01 Application Details

Basic Information :
Brand

G057AGE-T01Model
Type
a-Si TFT-LCD , LCM
Used For

5.7 inchScreen Size
Alias
-
Environment :
Storage Temp.
-30 ~ 85 °C
Operating Temp.
-30 ~ 85 °C
RoHS

1.5G (14.7 m/s²)Vibration



Innolux G057AGE-T01 Mechanical Details

Pixel Features :
Resolution
320(RGB)×240, QVGA
Dot Pitch(mm)
0.120×0.360 (H×V)
Pixel Format
RGB Vertical Stripe
Pixel Pitch(mm)
0.360×0.360 (H×V) [70PPI]
Mechanical Size :
Active Area(mm)
115.2(H) × 86.4(V)
Bezel Area(mm)
118.2(H) × 89.4(V)
Outline Dim.(mm)
144(H) × 104.6(V)
Depth(mm)
12.3±0.5
Outline Features :
Form Style
Flat Rectangle
Shape Style

Aspect Ratio
4:3 (H:V)
Orientation
Landscape type
Mounting :
Side mounting holes (4-Φ2.6); Rear mounting holes (4-Φ2.6)
Other Spec :
Weight
155/170g (Typ./Max.)
Treatment
Antiglare (Haze 25%)



Innolux G057AGE-T01 Optical Details

Basic Information :
Luminance(cd/m²)
500 (Typ.)
Contrast Ratio
800:1 (Typ.) (Transmissive)
Viewing Angle
80/80/70/70 (Typ.)(CR≥10)
Display Mode
TN, Normally White, Transmissive
Best View on
-
Response(ms)
15/35 (Typ.)(Tr/Td)
Color Performance :
White Coordinate
Wx:0.313; Wy:0.329
Display Colors
262K (6-bit)
Color Temperature
6485K
White Uniformity
1.25/1.40 (Typ./Max.)(5 points)
1931 Color Gamlt :
NTSC Ratio
54%
sRGB
75% coverage
Adobe RGB
57% coverage
DCI-P3
56% coverage
Rec.2020
40% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



Innolux G057AGE-T01 Interface Detail

Signal Electrical :
Voltage Supply
3.3V (Typ.)
Current Supply
151/181mA (Typ./Max.)
Consumption
0.5W (Typ.)
Signal Type :
TTL (1 ch, 6-bit)
Logic Voltage
-
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
HRS
FH12-33S-0.5SH
0.5 mm
33 pins
1 pcs
DRGB-33P1C6B-020A



Innolux G057AGE-T01 Backlight Details

Backlight Features :
Type
WLED
Quantity
-
Position
Edge light type
Replacement
-
Shape
-
Life Time
50K(Min.) (Hours)
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
JST
SM06B-SRKS-G-TB
1.0 mm
6 pins
1 pcs

Backlight Driver :
With LED Driver
Driver Electrical :
Voltage Supply
12.0V (Typ.)
Current Supply
0.23/0.26/0.28A (Min./Typ./Max.)
Consumption
2.45W (Typ.)



Innolux G057AGE-T01 Packing Details

Package Box : Quantity Weight Box Size
60 pcs / box 30 Kgs 540×450×275 mm (L×W×H)



FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.

G057AGE-T01 Innolux 5.7" 320(RGB)×240 500 cd/m² INDUSTRIAL LCD DISPLAY


Product Tags:

CCFL CSTN LCD Panel



VGA Lcd Video Panel


Buy cheap G057AGE-T01 Innolux 5.7" 320(RGB)×240 500 cd/m² INDUSTRIAL LCD DISPLAY product

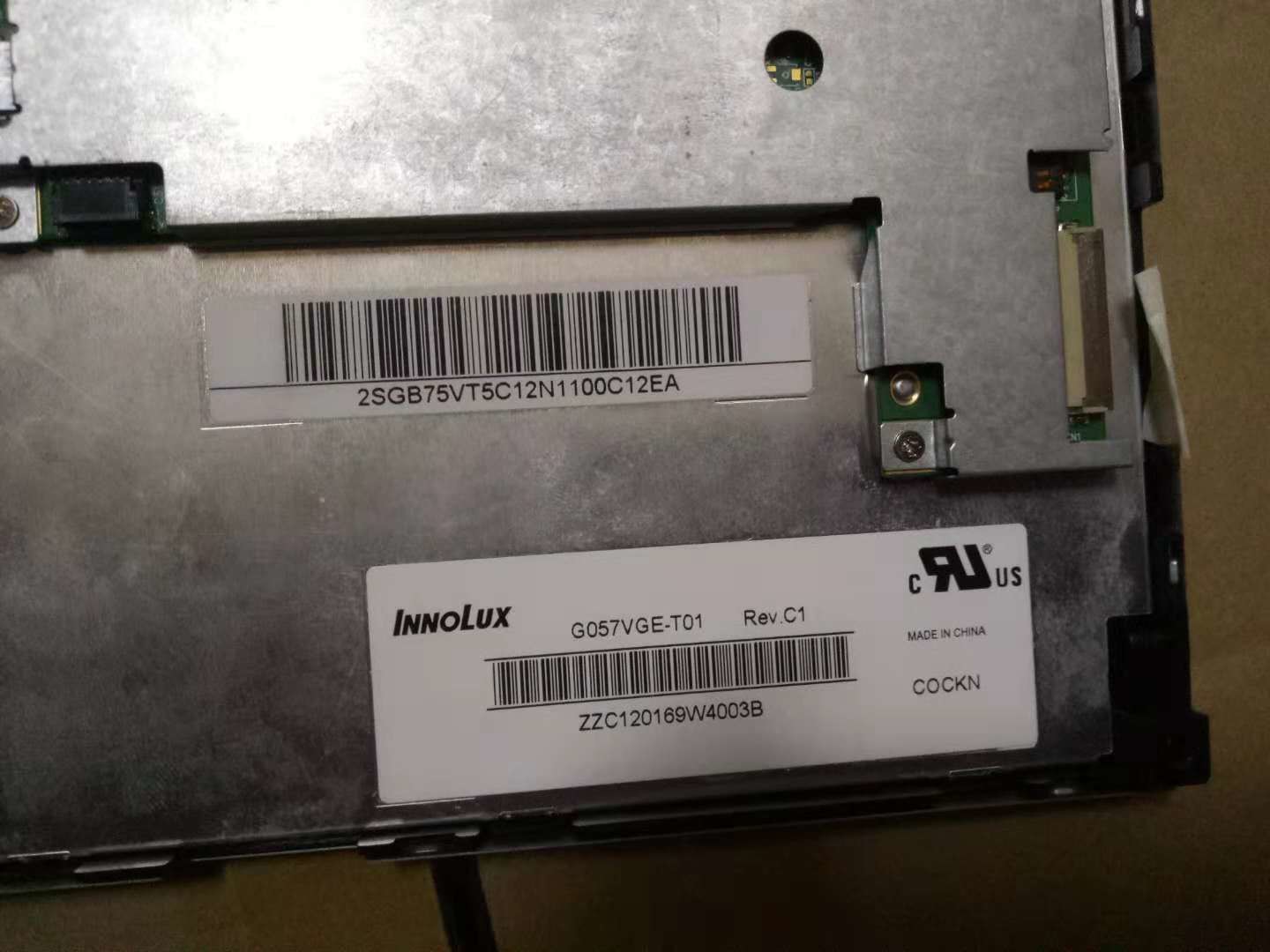

G057AGE-T01 Innolux 5.7" 320(RGB)×240 500 cd/m² INDUSTRIAL LCD DISPLAY Images
