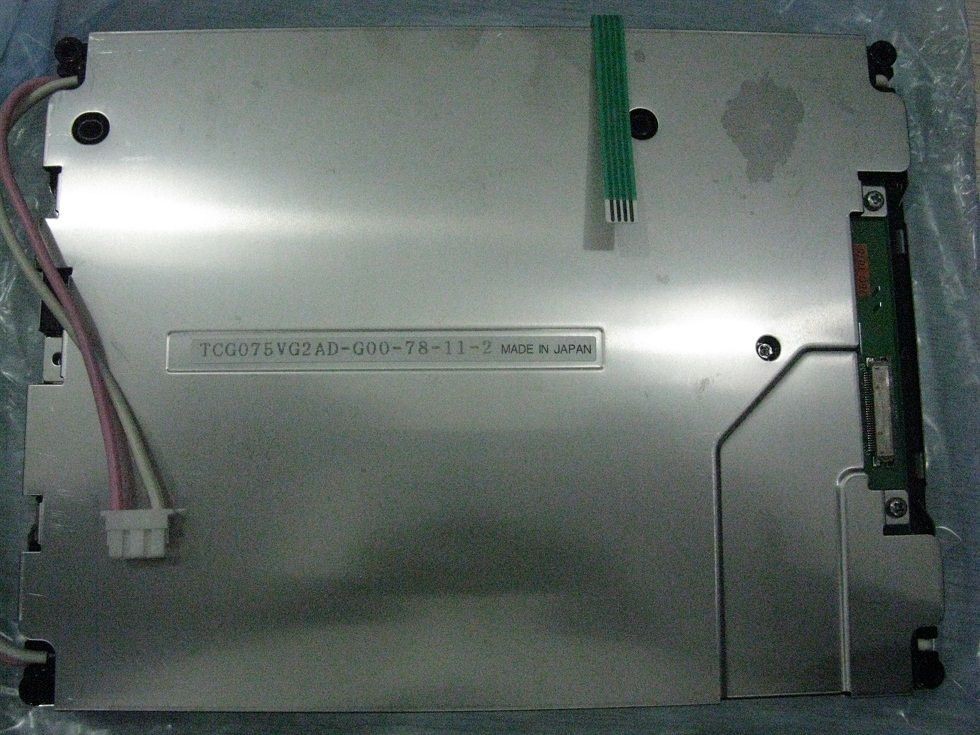

TCG075VG2AD-G00 Kyocera 7.5INCH LCM 640×480RGB 300NITS CCFL TTL INDUSTRIAL LCD DISPLAY

  • 1
  • 2
  • 3

Brand Name : Kyocera

Model Number : TCG075VG2AD-G00

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/WESTERNUNION/ESCROW

Supply Ability : 100PCS

Delivery Time : 1-2day

Packaging Details : STANDARD PACKING

MODEL NUMBER : TCG075VG2AD-G00

BRAND : Kyocera

SIZE : 7.5INCH

RESOLUTION : 640×480RGB

BRIGHTNESS : 300 cd/m² (Typ.)

Backlight : 2 pcs CCFL , 58K hours , No Driver

Screen Type : LCM, a-Si TFT-LCD

TEMPERATURE RANGE : Storage Temp.: -30 ~ 80 °C

Contact Now

Kyocera TCG075VG2AD-G00 Application Details

Basic Information : Brand   Model TCG075VG2AD-G00
Type LCM a-Si TFT-LCD Used For
Screen Size 7.5" Alias -
Environment : Storage Temp. -30 ~~ 80 °C Operating Temp. -10 ~~ 70 °C
RoHS   Vibration -



Kyocera TCG075VG2AD-G00 Mechanical Details

Pixel Features : Resolution 640(RGB)×480, VGA Dot Pitch(mm) 0.079×0.237 (H×V)
Pixel Format RGB Vertical Stripe Pixel Pitch(mm) 0.237×0.237 (H×V) [107PPI]
Mechanical Size : Active Area(mm) 151.68(H) × 113.76(V) Bezel Area(mm) 156.3(H) × 118.4(V)
Outline Dim.(mm) 184(H) × 139.8(V) Depth(mm) 14.5/16.3 (Typ./Max.)
Outline Features : Form Style Flat Rectangle Outline Shape
Aspect Ratio 4:3 (H:V) Orientation Landscape type
Touch Panel : Touch Points 1 point Touch Panel 4-wire Resistive Touch
TP Controller Without touch controller Touch Signal -
Mounting : Rear mounting holes (4-Φ2.5)
Other Spec : Weight 440g (Typ.) Treatment -



Kyocera TCG075VG2AD-G00 Optical Details

Basic Information : Luminance(cd/m²) 300 (Typ.) Contrast Ratio 450:1 (Typ.) (Transmissive)
Viewing Angle 70/70/50/70 (Typ.)(CR≥5)  Display Mode TN, Normally White, Transmissive
Best View on - Response(ms) 5/15 (Typ.)(Tr/Td)
Color Performance : White Coordinate X:0.310; Y:0.320 Display Colors 262K (6-bit)
Color Temperature 6737K White Uniformity -
1931 Color Gamlt : NTSC Ratio 52% sRGB 72% coverage
Adobe RGB 54% coverage DCI-P3 54% coverage
Rec.2020 39% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



Kyocera TCG075VG2AD-G00 Electronics Details

Frame Rate : 60Hz
Reverse Scan : Yes (U/D, L/R)
Power Consumption : 5.06W (Typ.)
Time Controller (T-CON) : Embedded T-CON



Kyocera TCG075VG2AD-G00 Interface Details

Signal Electrical : Voltage Supply 3.3V (Typ.) Current Supply 290/435mA (Typ./Max.)
Consumption 957mW
Signal Type : Parallel RGB (1 ch, 6-bit) Signal Voltage 0≤VIL≤0.3VDD; 0.7VDD≤VIH≤VDD
Interface Features : Position - Type Connector
Interface Detail : Brand Model Quantity Pins Pitch Pin Configuration
Kyocera Elco 08-6210-033-340-800+ 1 pcs 33 pins 0.5 mm DRGB-33P1C6B-020A



Kyocera TCG075VG2AD-G00 Backlight Details

Backlight Features: Shape Straight Type CCFL Position Edge light type (Top and Bottom)
Replacement - Quantity 2 pcs Life Time 58K(Typ.) (Hours)
Lamp Electrical : Voltage Supply 440V (Typ.) Current Supply 2.0/6.0mA (Min./Max.)
Frequency 40/100KHz (Min./Max.) Startup Voltage -
Consumption 4.1W (Typ.)
Interface Features : Position - Type Connector
Interface Detail : Brand Model Quantity Pins Pitch Pin Configuration
JST BHR-03VS-1 2 pcs 3 pins 4.0 mm BLL-3PINS-HNL
Backlight Driver : No




FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.







TCG075VG2AD-G00 Kyocera 7.5INCH LCM 640×480RGB 300NITS CCFL TTL INDUSTRIAL LCD DISPLAYTCG075VG2AD-G00 Kyocera 7.5INCH LCM 640×480RGB 300NITS CCFL TTL INDUSTRIAL LCD DISPLAY
