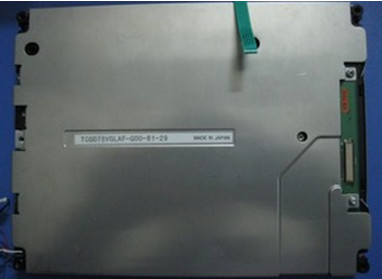

TCG075VGLAF-G00 Kyocera 7.5INCH LCM 640×480RGB 220NITS WLED TTL INDUSTRIAL LCD DISPLAY

  • 1
  • 2
  • 3

Brand Name : Kyocera

Model Number : TCG075VGLAF-G00

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/WESTERNUNION/ESCROW

Supply Ability : 50PCS

Delivery Time : 1-2day

Packaging Details : STANDARD PACKING

BRAND : Kyocera

MODEL NUMBER : TCG075VGLAF-G00

SIZE : 7.5INCH

RESOLUTION : 640×480RGB

BRIGHTNESS : 220 cd/m² (Typ.)

Signal Interface : Parallel RGB (1 ch, 6-bit) , 33 pins Connector

Lamp Type : 4 strings WLED , 50K hours , Without Driver

TEMPERATURE RANGE : Operating Temp.: -20 ~ 70 °C

Contact Now

Kyocera TCG075VGLAF-G00 Application Features

Basic Information : Brand Model Type Model Alias
  TCG075VGLAF-G00 a-Si TFT-LCD , LCM -
Reliability : RoHS Operating Temperature Storage Temperature Vibration Resistance
  -20 ~ 70 °C -30 ~ 80 °C -



Kyocera TCG075VGLAF-G00 Mechanical Features

Panel Size : 7.5 inch
Pixel Features : Resolution Pixel Arrangement Dot Pitch (W×H) Pixel Pitch (W×H)
640(RGB)×480, VGA RGB Vertical Stripe 0.079×0.237 mm 0.237×0.237 mm [107PPI]
Mechanical Size : Active Area (W×H) Bezel Area (W×H) Outline Dimension (W×H) Outline Depth
151.68×113.76 mm 153.7×115.8 mm 184×139.8 mm 14.5 (Tpy.) mm
Outline Features : Form Style Aspect Ratio Orientation Shape Style
Flat Rectangle 4:3 (W : H) Landscape type
Touchscreen : Touch Points TP Controller Signal Type Touch Tech
- - - 4-wire Resistive Touch
Fixation : Rear mounting holes
Other Features : Panel Cover Weight Surface
- 440g Glare (Haze 0%)



Kyocera TCG075VGLAF-G00 Optical Features

Basic Information : Brightness Operating Mode Contrast Ratio
220 cd/m² (Typ.) TN, Normally White, Transmissive 450:1 (Typ.) (Transmissive)
Viewing Angle(L/R/U/D) Viewing Direction Response Speed
70/70/50/70 (Typ.)(CR≥5) - 5/15 (Typ.)(Tr/Td) (ms)
Dispaly Color : Color Temperature Color Amount White color Chromaticity
5598K 262K (6-bit) X:0.330; Y:0.350
1931 Color Gamlt : NTSC Ratio sRGB Coverage Adobe RGB Coverage
47% 65% 49%
DCI-P3 Coverage Rec.2020 Coverage Remarks
48% 35% sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



Kyocera TCG075VGLAF-G00 Electronics Features

Frame Rate : 60Hz
Reverse Scan : Yes (U/D, L/R)



Kyocera TCG075VGLAF-G00 Interface Features

Signal Electrical : Current Input Voltage Input Consumption
290/435mA (Typ./Max.) 3.3V (Typ.) -
Voltage for Display Signals : 0≤VIL≤0.3VDD; 0.7VDD≤VIH≤VDD
Interface Features : Position Type Interface
- Connector Parallel RGB (1 ch, 6-bit)
Signal Interface : Brand Model Amount Pin Pitch Pins Pin Assignment
Kyocera Elco 08-6210-033-340-800+ 1 pcs 0.5 mm 33 pins DRGB-33P1C6B-020A



Kyocera TCG075VGLAF-G00 Backlight Features

Backlight Features: Type Position Shape Amount  Life(Hours) Replacement
WLED Edge light type 4 strings 4 strings 50K(Typ.) -
WLED Electrical : Current Input Voltage Input Consumption
25mA (Typ.) 23.1/25.9V (Typ./Max.)
Interface Features : Position Type WLED Driver
- Connector No
Interface Detail Brand Model Amount Pin Pitch Pins Pin Assignment
JST SHLP-08V-S-B 1 pcs 1.0 mm 8 pins BLE-8PINS-AAAACCCC




FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.





TCG075VGLAF-G00 Kyocera 7.5INCH LCM 640×480RGB 220NITS WLED TTL INDUSTRIAL LCD DISPLAYTCG075VGLAF-G00 Kyocera 7.5INCH LCM 640×480RGB 220NITS WLED TTL INDUSTRIAL LCD DISPLAY
