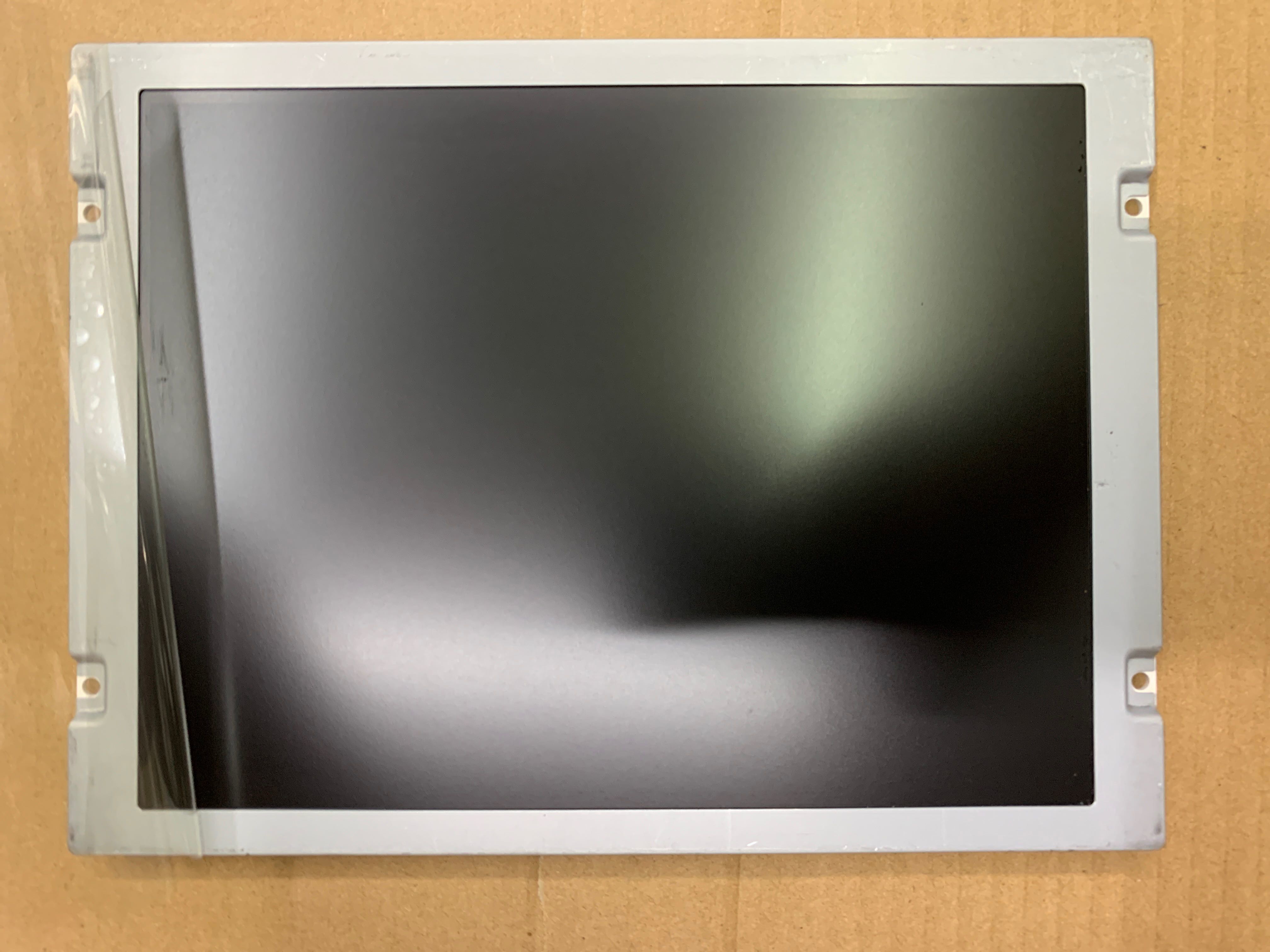

T-55786GD084J-LW-AHN Kyocera 8.4INCH LCM 800×600RGB 1200NITS WLED LVDS INDUSTRIAL LCD DISPLAY

  • 1
  • 2
  • 3

Brand Name : Kyocera

Model Number : T-55786GD084J-LW-AHN

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/WESTERNUNION/ESCROW

Supply Ability : 100PCS

Delivery Time : 1-2day

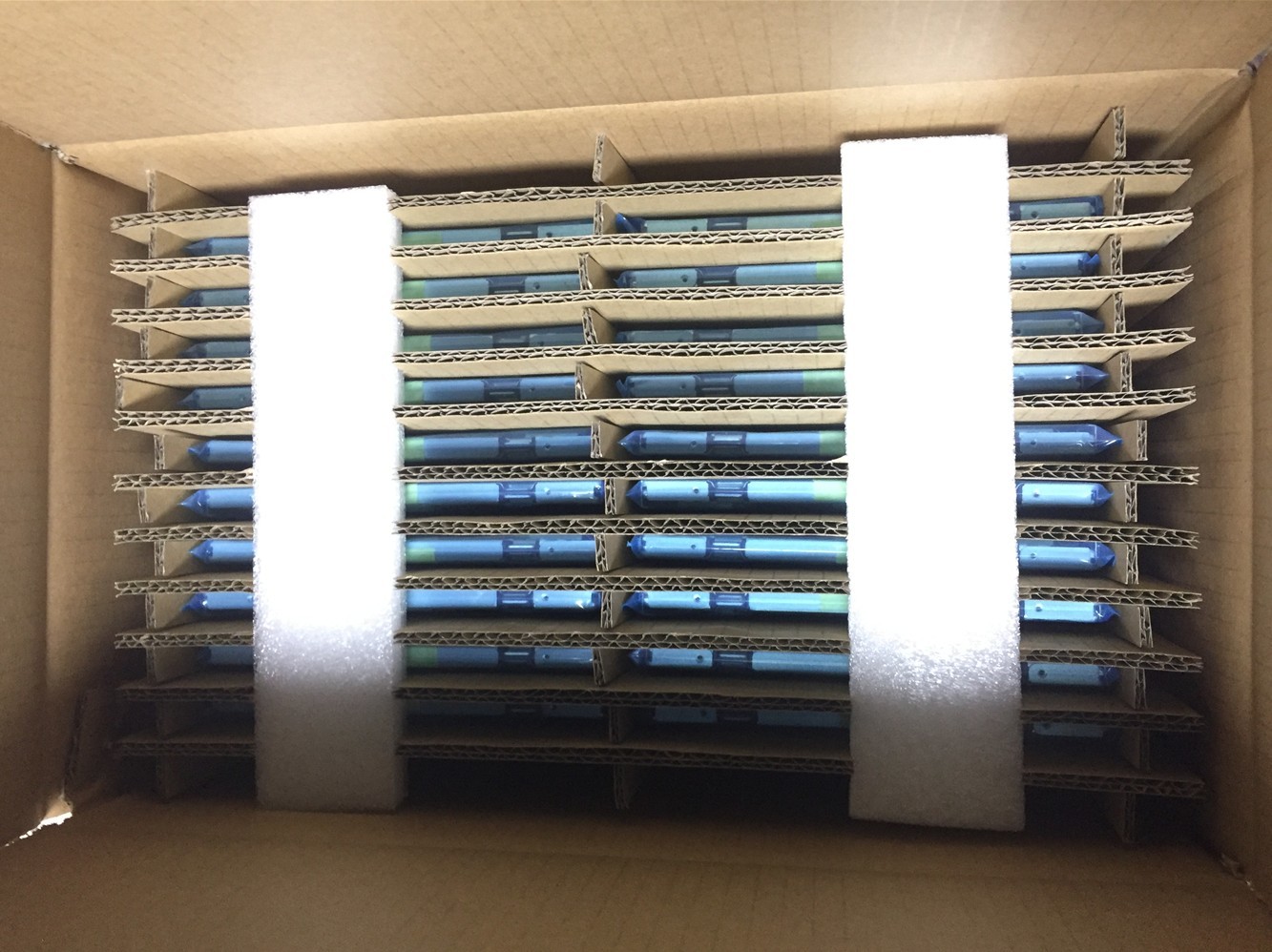

Packaging Details : STANDARD PACKING

MODEL NUMBER : T-55786GD084J-LW-AHN

BRAND : Kyocera

SIZE : 8.4INCH

RESOLUTION : 800×600RGB

BRIGHTNESS : 1200 cd/m² (Typ.)

Signal Type : LVDS (1 ch, 8-bit) , 30 pins Connector

Backlight : 6S4P WLED , 70K hours , With LED Driver

TEMPERATURE RANGE : Storage Temp.: -30 ~ 80 °C

Contact Now

OPTREX T-55786GD084J-LW-AHN Application Features

Basic Information : Brand Name Model Name  1 Compatible Type Model Alias
  T-55786GD084J-LW-AHN a-Si TFT-LCD , LCM TCG084SVLQEPNN-AN40
Maximum Ratings : RoHS Operating Temperature Storage Temperature Vibration Level
  -30 ~ 80 °C -30 ~ 80 °C -



OPTREX T-55786GD084J-LW-AHN Mechanical Features

Screen Size : 8.4"
Pixel Features : Pixel Number Pixel Format Dot Pitch (H×V) Pixel Pitch (H×V)
800(RGB)×600, SVGA RGB Vertical Stripe 0.071×0.213 mm 0.213×0.213 mm [119PPI]
Mechanical Size : Display Area (H×V) Bezel Opening (H×V) Overall Dimension (H×V) Overall Depth
170.4×127.8 mm 173.9×131.9 mm 199.5×149 mm 11.5±0.5 mm
Outline Features : Form Shape Aspect Ratio (H:V) Orientation Shape Style
Flat Rectangle 4:3 Landscape type
Other Spec : Mass Panel Cover Surface Treatment
365g (Typ.) - Antiglare
Holes & Brackets : Face mounting holes (4-Φ3.4); Side mounting holes (4-M2) on left, right bezel



OPTREX T-55786GD084J-LW-AHN Optical Features

Basic Information : Luminance Work Mode Contrast Ratio
1200 cd/m² (Typ.) AWV, Normally Black, Transmissive 750:1 (Typ.) (Transmissive)
Good View at Viewing Angle Response Time
Symmetry 85/85/85/85 (Typ.)(CR≥10) 18/12 (Typ.)(Tr/Td) (ms)
Dispaly Color : Color Temperature: Support Color Color Coordinate
6043K 16.2M (6-bit + FRC) X:0.320; Y:0.345
1931 Color Gamlt : NTSC Ratio sRGB Coverage Adobe RGB Coverage
51% 71% 53%
DCI-P3 Coverage Rec.2020 Coverage Remarks
52% 38% sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Performance : 3D Technology Outdoor Visibility Reflectance
- Sunlight Readable -



OPTREX T-55786GD084J-LW-AHN Electronics Features

Refresh Rate : 60Hz
Reverse Scan : No



OPTREX T-55786GD084J-LW-AHN Backlight Features

Back-light Features: Type Position Life(Hours) Amount  Shape Replacement
WLED Edge light type 70K(Typ.) 6S4P 4 strings -
Interface Features : WLED Driver State Physical Type Interface Position
With LED Driver Included in panel signal interface -
WLED Driver Electrical : Input Voltage Input Current Power Consumption
12.0±1.2V 740/1050mA (Typ./Max.) -



OPTREX T-55786GD084J-LW-AHN Interface Features

Signal Electrical : Input Voltage Input Current Power Consumption
3.3V (Typ.) 270/350mA (Typ./Max.) -
Interface Features : Signal Type Physical Type Interface Position
LVDS (1 ch, 8-bit) Connector -
Interface Detail : Brand Name Model Name Amount Pins Pin Pitch Pin Configuration
JAE FI-X30SSLA-HF 1 pcs 30 pins 1.0 mm LVDS-30P1C8B-272A



FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
