T-55786GD084J-LW-AGN Kyocera 8.4INCH LCM 800×600RGB 600NITS WLED LVDS INDUSTRIAL LCD DISPLAY

Sapientia Display Co.,LIMITED
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

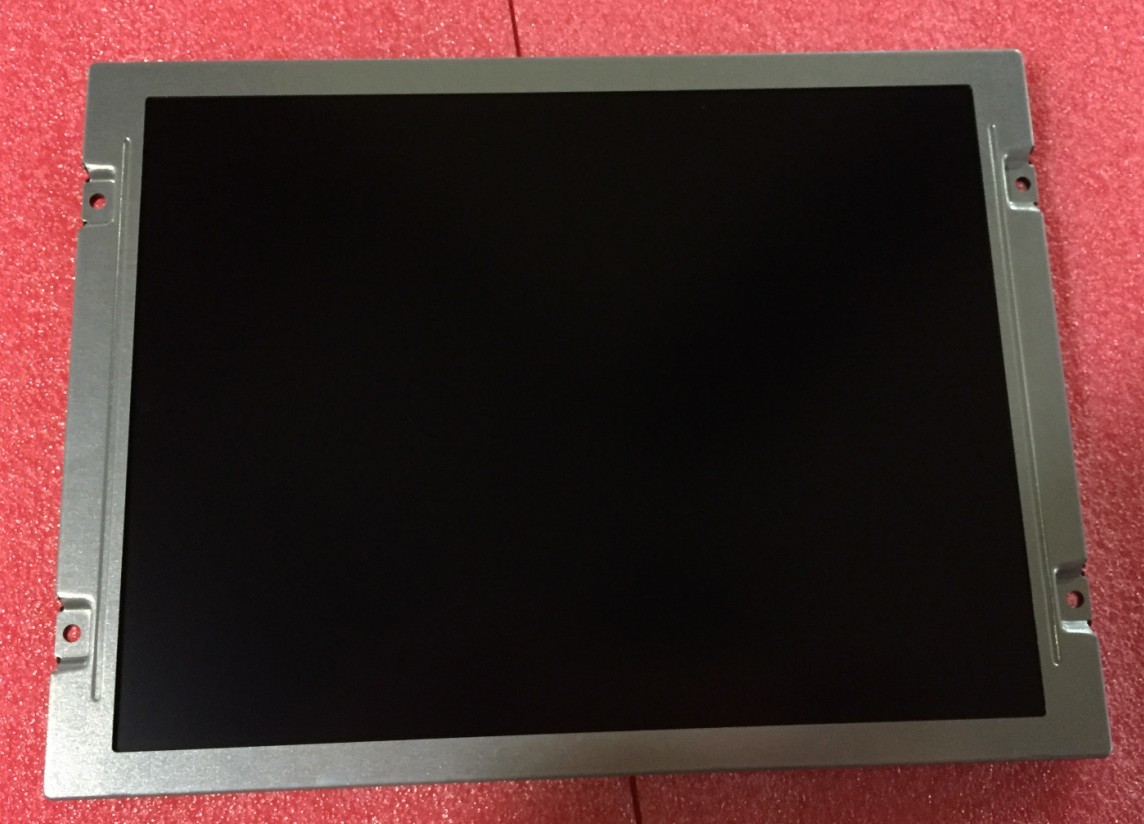

T-55786GD084J-LW-AGN Kyocera 8.4INCH LCM 800×600RGB 600NITS WLED LVDS INDUSTRIAL LCD DISPLAY

  • 1
  • 2
  • 3

Brand Name : Kyocera

Model Number : T-55786GD084J-LW-AGN

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/WESTERNUNION/ESCROW

Supply Ability : 50PCS

Delivery Time : 1-2day

Packaging Details : STANDARD PACKING

MODEL NUMBER : T-55786GD084J-LW-AGN

BRAND : Kyocera

SIZE : 8.4INCH

RESOLUTION : 800×600RGB

BRIGHTNESS : 600 cd/m² (Typ.)

Signal Interface : LVDS (1 ch, 8-bit) , 30 pins Connector

Lamp Type : 8S2P WLED , 70K hours , With LED Driver

TEMPERATURE RANGE : Operating Temp.: -30 ~ 80 °C

Contact Now

OPTREX T-55786GD084J-LW-AGN Application Details

Basic Information : Brand   Model T-55786GD084J-LW-AGN
Type LCM a-Si TFT-LCD Used For
Screen Size 8.4" Alias TCG084SVLQEPNN-AN30
Environment : Storage Temp. -30 ~~ 80 °C Operating Temp. -30 ~~ 80 °C
RoHS   Vibration -



OPTREX T-55786GD084J-LW-AGN Mechanical Details

Pixel Features : Resolution 800(RGB)×600, SVGA Dot Pitch(mm) 0.071×0.213 (H×V)
Pixel Format RGB Vertical Stripe Pixel Pitch(mm) 0.213×0.213 (H×V) [119PPI]
Mechanical Size : Active Area(mm) 170.4(H) × 127.8(V) Bezel Area(mm) 173.9(H) × 131.9(V)
Outline Dim.(mm) 199.5(H) × 149(V) Depth(mm) 11.5±0.5
Outline Features : Form Style Flat Rectangle Outline Shape
Aspect Ratio 4:3 (H:V) Orientation Landscape type
Mounting : Face mounting holes (4-Φ3.4); Side mounting holes (4-M2) on left, right bezel
Other Spec : Weight 350g (Typ.) Treatment Antiglare



OPTREX T-55786GD084J-LW-AGN Optical Details

Basic Information : Luminance(cd/m²) 600 (Typ.) Contrast Ratio 750:1 (Typ.) (Transmissive)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10)  Display Mode AWV, Normally Black, Transmissive
Best View on Symmetry Response(ms) 18/12 (Typ.)(Tr/Td)
Color Performance : White Coordinate X:0.320; Y:0.345 Display Colors 16.2M (6-bit + FRC)
Color Temperature 6043K White Uniformity -
1931 Color Gamlt : NTSC Ratio 51% sRGB 71% coverage
Adobe RGB 53% coverage DCI-P3 53% coverage
Rec.2020 38% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



OPTREX T-55786GD084J-LW-AGN Electronics Details

Frame Rate : 60Hz
Reverse Scan : No



OPTREX T-55786GD084J-LW-AGN Interface Details

Signal Electrical : Voltage Supply 3.3V (Typ.) Current Supply 270/350mA (Typ./Max.)
Signal Type : LVDS (1 ch, 8-bit) Signal Voltage -
Interface Features : Position - Type Connector
Interface Detail : Brand Model Quantity Pins Pitch Pin Configuration
JAE FI-X30SSLA-HF 1 pcs 30 pins 1.0 mm LVDS-30P1C8B-272A



OPTREX T-55786GD084J-LW-AGN Backlight Details

Backlight Features: Shape 2 strings Type WLED Position Edge light type
Replacement - Quantity 8S2P Life Time 70K(Typ.) (Hours)
Interface Features : Position - Type Included in panel signal interface
Backlight Driver : With LED Driver
Driver Electrical : Voltage Supply 12.0±1.2V Current Supply 520/780mA (Typ./Max.)



OPTREX T-55786GD084J-LW-AGN Packing Details

Package Box : Quantity Weight Box Size
20 pcs / box - 495×410×331 mm (L×W×H)




FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours
