TCG104VG2AA-A00 Kyocera 10.4INCH LCM 640×480RGB 450NITS CCFL TTL INDUSTRIAL LCD DISPLAY

Product Categories
Sapientia Display Co.,LIMITED
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

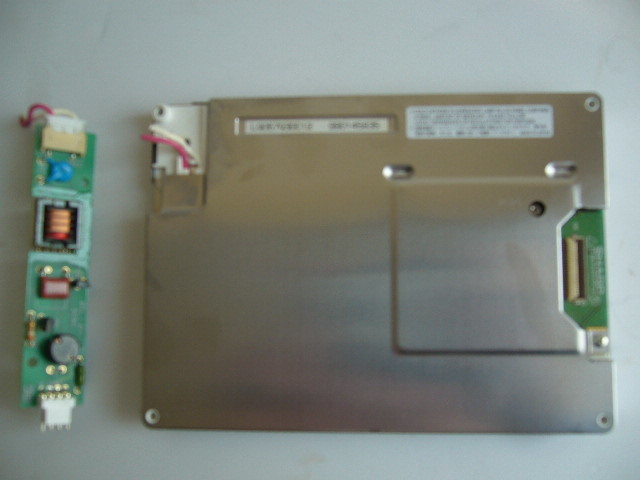

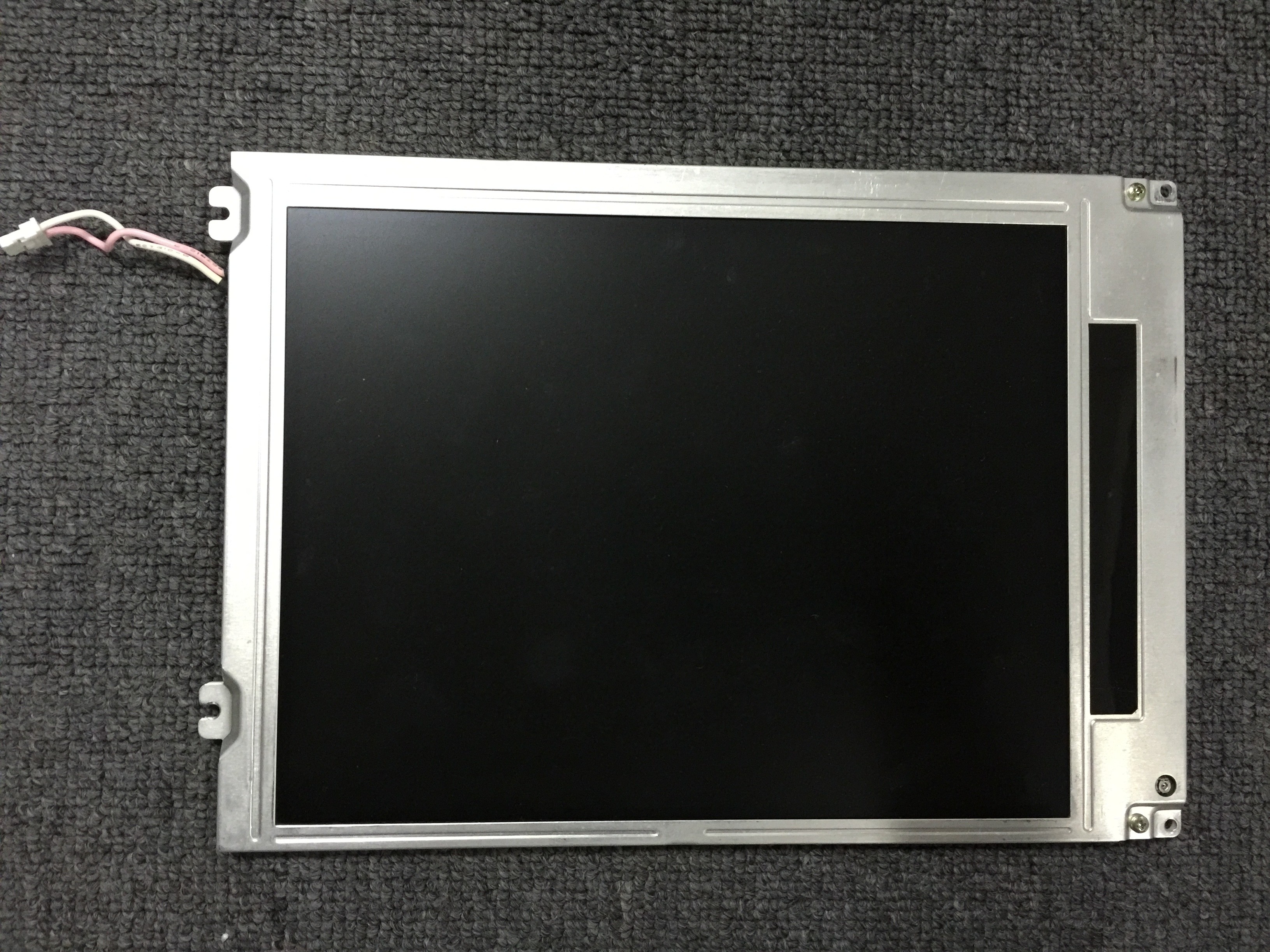

TCG104VG2AA-A00 Kyocera 10.4INCH LCM 640×480RGB 450NITS CCFL TTL INDUSTRIAL LCD DISPLAY

  • 1
  • 2
  • 3

Brand Name : Kyocera

Model Number : TCG104VG2AA-A00

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/WESTERNUNION/ESCROW

Supply Ability : 100PCS

Delivery Time : 1-2day

Packaging Details : STANDARD PACKING

BRAND : Kyocera

MODEL NUMBER : TCG104VG2AA-A00

SIZE : 10.4INCH

RESOLUTION : 640×480RGB

BRIGHTNESS : 450 cd/m² (Typ.)

Interface Type : Parallel RGB (1 ch, 6-bit) , 31 pins Connector

Light Source : CCFL [2 pcs] , 50K hours , Optional

TEMPERATURE RANGE : Operating Temperature: -10 ~ 70 °C

Contact Now

Kyocera TCG104VG2AA-A00 Application Details

Basic Information : Brand   Model TCG104VG2AA-A00 3 Compatible
Type LCM a-Si TFT-LCD Used For
Screen Size 10.4" Alias -
Environment : Storage Temp. -20 ~~ 80 °C Operating Temp. -10 ~~ 70 °C
RoHS   Vibration -



Kyocera TCG104VG2AA-A00 Mechanical Details

Pixel Features : Resolution 640(RGB)×480, VGA Dot Pitch(mm) 0.110×0.330 (H×V)
Pixel Format RGB Vertical Stripe Pixel Pitch(mm) 0.330×0.330 (H×V) [76PPI]
Mechanical Size : Active Area(mm) 211.2(H) × 158.4(V) Bezel Area(mm) 213.2(H) × 160.4(V)
Outline Dim.(mm) 243(H) × 185.1(V) Depth(mm) 10.5±0.5
Outline Features : Form Style Flat Rectangle Outline Shape
Aspect Ratio 4:3 (H:V) Orientation Landscape type
Mounting : Face mounting holes (2-Φ3.5, 2-R1.75) on left, right bezel
Other Spec : Weight 520g Treatment Antiglare



Kyocera TCG104VG2AA-A00 Optical Details

Basic Information : Luminance(cd/m²) 450 (Typ.) Contrast Ratio 750:1 (Typ.) (Transmissive)
Viewing Angle 85/85/85/85 (Typ.)(CR≥5)  Display Mode AWV, Normally Black, Transmissive
Best View on Symmetry Response(ms) 14/9 (Typ.)(Tr/Td)
Color Performance : White Coordinate X:0.300; Y:0.310 Display Colors 262K (6-bit)
Color Temperature 7525K White Uniformity 1.43 (Max.)(5 points)
1931 Color Gamlt : NTSC Ratio 52% sRGB 71% coverage
Adobe RGB 54% coverage DCI-P3 53% coverage
Rec.2020 39% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



Kyocera TCG104VG2AA-A00 Electronics Details

Frame Rate : 60Hz
Reverse Scan : Yes (180°)



Kyocera TCG104VG2AA-A00 Interface Details

Signal Electrical : Voltage Supply 3.3/5.0V (Typ.)(VDD) Current Supply 495mA (Typ.)(3.3V)
Signal Type : Parallel RGB (1 ch, 6-bit) Signal Voltage 0≤VIL≤0.3VDD; 0.7VDD≤VIH≤VDD
Interface Features : Position - Type Connector
Interface Detail : Brand Model Quantity Pins Pitch Pin Configuration
HRS DF9C-31P-1V 1 pcs 31 pins 1.0 mm DRGB-31P1C6B-010F



Kyocera TCG104VG2AA-A00 Backlight Details

Backlight Features: Shape Straight Type CCFL Position Edge light type (Top side)
Replacement - Quantity 2 pcs Life Time 50K(Typ.) (Hours)
Lamp Electrical : Voltage Supply 490V (Typ.) Current Supply 2.0/5.0/6.0mA (Min./Typ./Max.)
Frequency 40/100KHz (Min./Max.) Startup Voltage 830/1325V (Max.)(Ta=+25/0℃)
Interface Features : Position   Type Connector
Interface Detail : Brand Model Quantity Pins Pitch Pin Configuration
JST BHR-03VS-1 1 pcs 3 pins 4.0 mm BLL-3PINS-LHH
Backlight Driver : Optional
