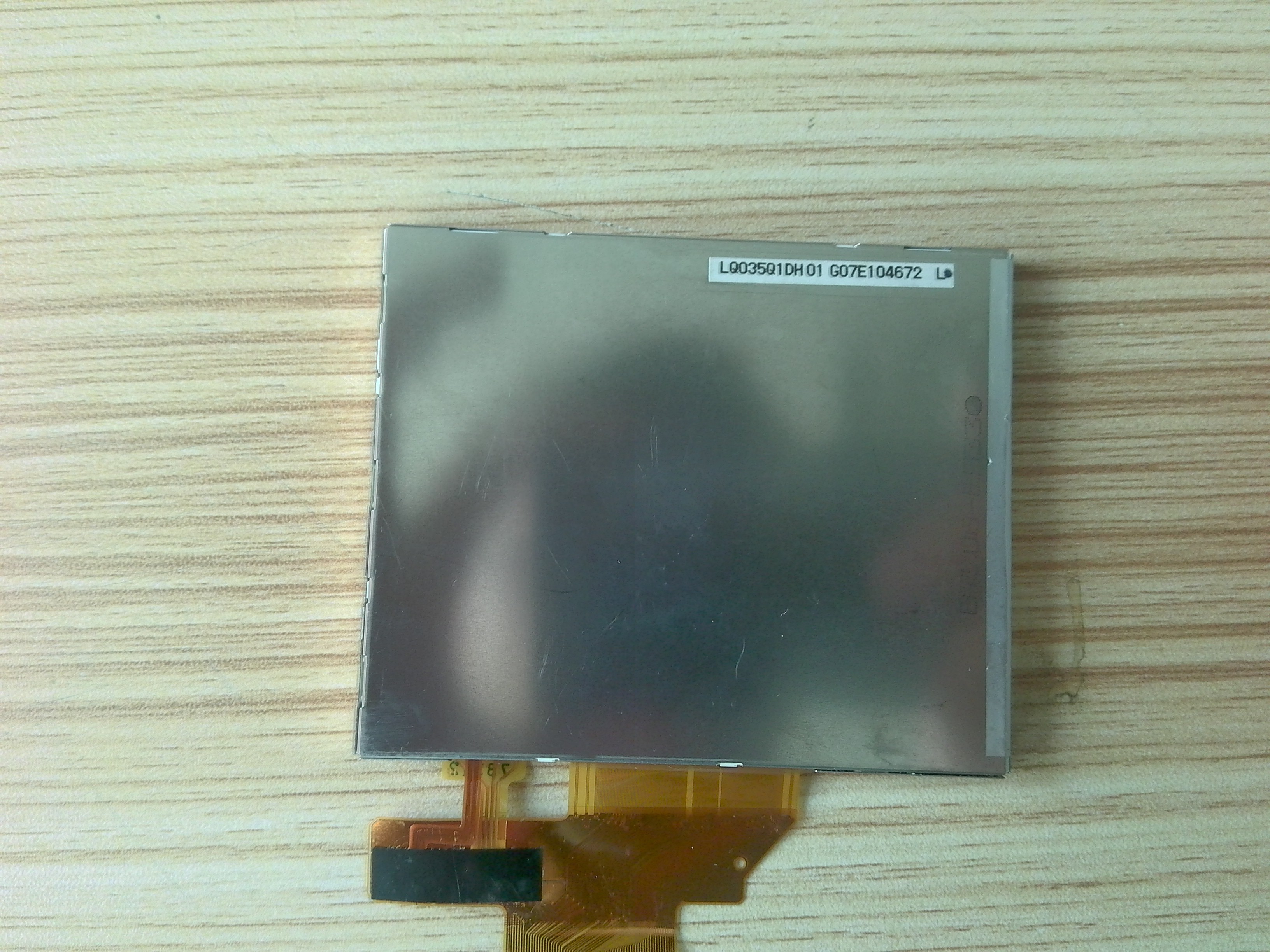

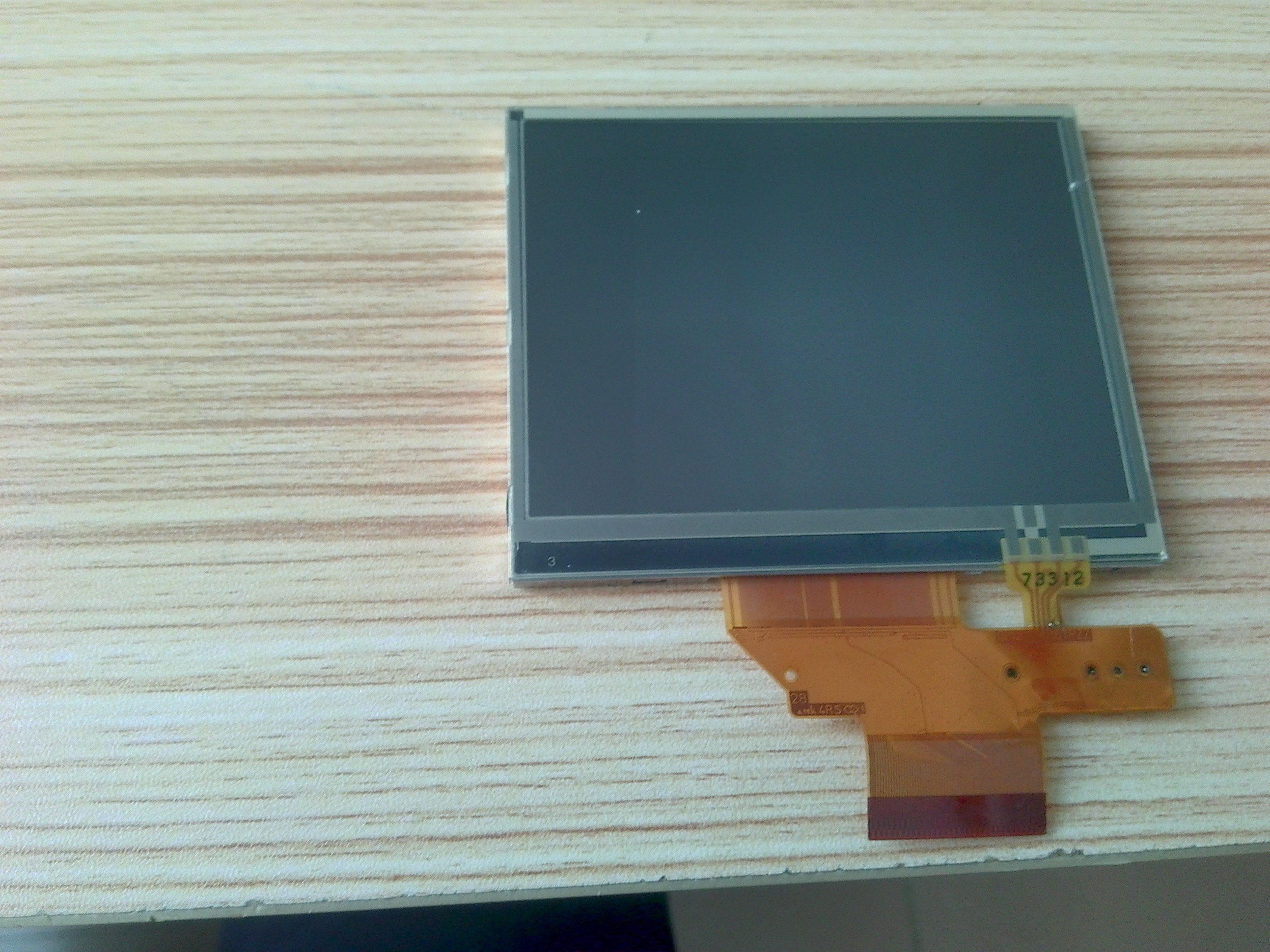

3.5" LCM 320×240RGB 400cd/m² LQ035Q1DH01 Sharp TFT LCD Display

Name: 35quot LCM 320240RGB 400cdm LQ035Q1DH01 Sharp TFT LCD Display
Brand: SHARP
Price: 1 USD

Buy cheap 3.5" LCM 320×240RGB 400cd/m² LQ035Q1DH01 Sharp TFT LCD Display product

Brand Name : SHARP

Model Number : LQ035Q1DH01

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/WESTERN UNION/ESCROW

Supply Ability : 100PCS

Delivery Time : 1-2 DAYS

Packaging Details : 120 pcs / box 9.8 Kgs 575×360×225 mm (L×W×H)

Model Name : LQ035Q1DH01

Screen Size : 3.5 inch

Luminance : 400 (Typ.)(cd/m²)

Backlight : 7S1P WLED , No Driver

Signal Type : Parallel RGB (1 ch, 6-bit) + SPI , 67 pins FPC

Pixel Number : 320(RGB)×240 (QVGA) 115PPI

Viewing Angle : 45/45/20/55 (Typ.)

Max. Ratings : Storage Temp.: -30 ~ 85 °C Operating Temp.: -10 ~ 70 °C

Contact Now

Sharp LQ035Q1DH01 Mechanical Features

Panel Size :	3.5 inch
Pixel Features :	Resolution	Pixel Arrangement	Dot Pitch (W×H)	Pixel Pitch (W×H)
Pixel Features :	320(RGB)×240, QVGA	RGB Vertical Stripe	0.0735×0.2205 mm	0.2205×0.2205 mm [115PPI]
Mechanical Size :	Active Area (W×H)	Bezel Area (W×H)	Outline Dimension (W×H)	Outline Depth
Mechanical Size :	70.56×52.92 mm	-	76.9×63.9 mm	4.5±0.2 mm
Outline Features :	Form Style	Aspect Ratio	Orientation	Shape Style
Outline Features :	Flat Rectangle	4:3 (W : H)	Landscape type
Touchscreen :	Touch Points	TP Controller	Signal Type	Touch Tech
Touchscreen :	-	-	-	4-wire Resistive Touch
Other Features :	Panel Cover	Weight	Surface
Other Features :	-	43.0g (Typ.)	Antiglare, Hard coating (2H)

Sharp LQ035Q1DH01 Backlight Features

Backlight Features:	Type	Position	Shape	Amount	Life(Hours)	Replacement
Backlight Features:	WLED	Edge light type	1 string	7S1P	-	-
WLED Electrical :	Current Input		Voltage Input			Consumption
WLED Electrical :	20mA (Typ.)		22.4/24.5V (Typ./Max.)			448mW (Typ.)
Interface Features :	Position	Type	WLED Driver
Interface Features :	-	Included in panel signal interface	No

Sharp LQ035Q1DH01 Interface Features

Signal Electrical :	Current Input		Voltage Input			Consumption
Signal Electrical :	0.35/8.5mA (Typ.)(IVDDIO/IVCI)		3.3/3.3V (Typ.)(VDDIO/VCI)			-
Interface Features :	Position	Type	Interface
Interface Features :	-	FPC	Parallel RGB (1 ch, 6-bit) + SPI
Signal Interface :	Brand	Model	Amount	Pin Pitch	Pins	Pin Assignment
Signal Interface :			1 pcs	0.3 mm	67 pins

Sharp LQ035Q1DH01 Optical Features

Basic Information :	Brightness	Operating Mode	Contrast Ratio
	400 cd/m² (Typ.)	TN, Normally White, Transmissive	300:1 (Typ.) (Transmissive)
	Viewing Angle(L/R/U/D)	Viewing Direction	Response Speed
	45/45/20/55 (Typ.)(CR≥10)	6 o'clock	30/30 (Typ.)(Tr/Td) (ms)
Dispaly Color :	Color Temperature	Color Amount	White color Chromaticity
Dispaly Color :	6551K	262K (6-bit)	X:0.310; Y:0.340
