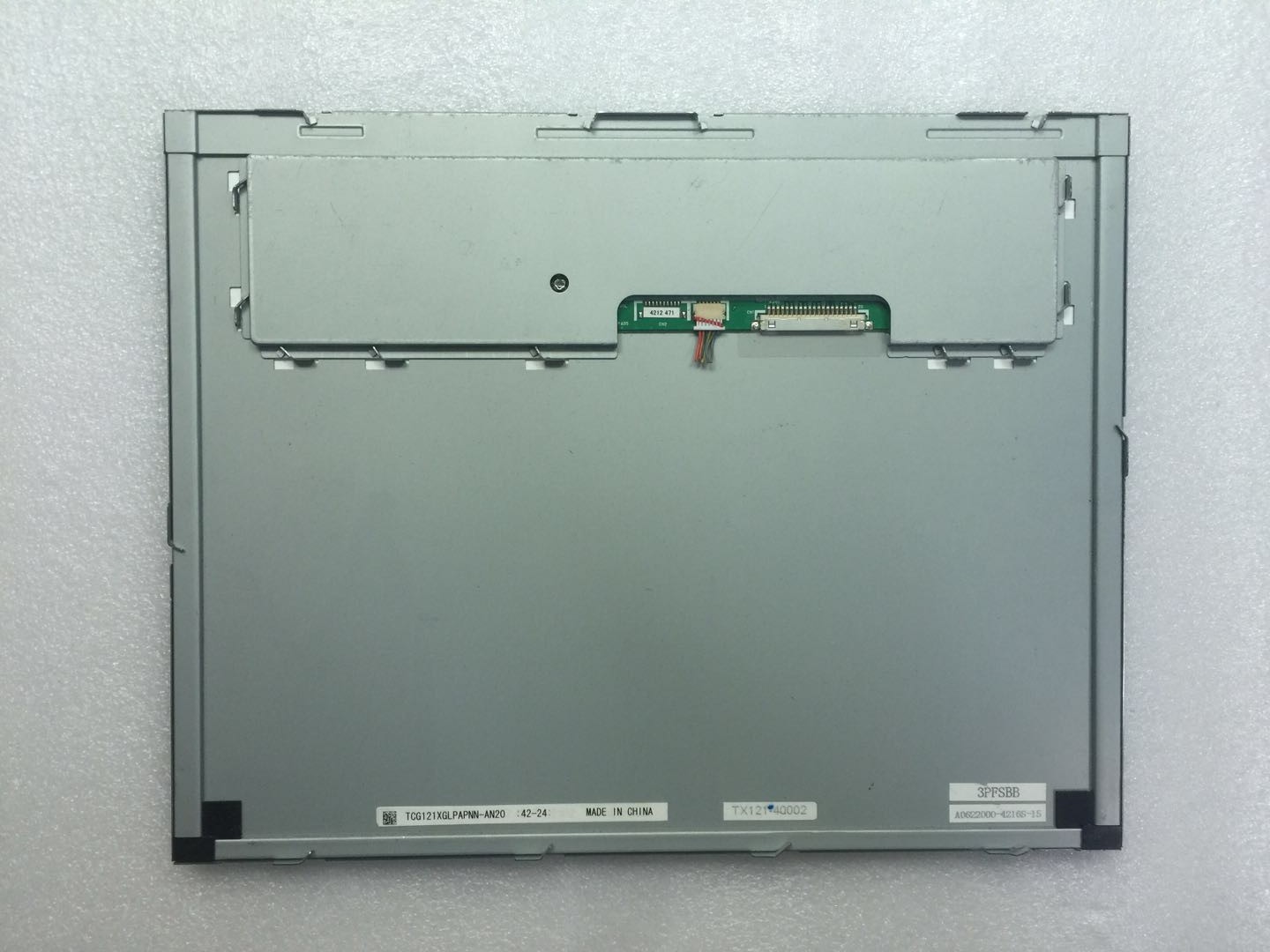

TCG121WXLPAPNN-AN20-SA Kyocera 12.1INCH LCM 1280×800RGB 500NITS WLED LVDS INDUSTRIAL LCD DISPLAY

  • 1
  • 2
  • 3

Brand Name : Kyocera

Model Number : TCG121WXLPAPNN-AN20-SA

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/WESTERNUNION/ESCROW

Supply Ability : 50PCS

Delivery Time : 1-2day

Packaging Details : STANDARD PACKING

BRAND : Kyocera

MODEL NUMBER : TCG121WXLPAPNN-AN20-SA

SIZE : 12.1INCH

RESOLUTION : 1280×800RGB

BRIGHTNESS : 500 cd/m² (Typ.)

Signal Interface : LVDS (1 ch, 8-bit) , 20 pins Connector

Lamp Type : WLED , 50K hours , With LED Driver

Environment : Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C

Contact Now

Kyocera TCG121WXLPAPNN-AN20-SA Application Details

Basic Info : Panel Brand   Panel Model TCG121WXLPAPNN-AN20-SA
Diagonal Size 12.1" Application
Panel Type a-Si TFT-LCD , LCM Model Alias -
Reliability : Operating Temp. -20 ~ 70 °C Storage Temp. -30 ~ 80 °C
RoHS State   Vibration Rating -



Kyocera TCG121WXLPAPNN-AN20-SA Mechanical Details

Pixel Features : Pixel Format 1280(RGB)×800 [WXGA] Dot Pitch 0.068×0.204 mm (H×V)
Configuration RGB Vertical Stripe Pixel Pitch 0.204×0.204 mm (H×V) [124PPI]
Mechanical Size : Display Area 261.12×163.2 mm (H×V) Bezel Area 264.1×166.2 mm (H×V)
Outline Dim. 277.7×182.5 mm (H×V) Outline Depth 9.8 (Typ.) mm
Outline Features : Form Factor Flat Rectangle Orientation Landscape type
Aspect Ratio 16:10 (H:V) Shape Style
Holes & Brackets : Side mounting holes (4-M2) on left, right bezel
Other Features : Weight 680g (Typ.) Surface Antiglare



Kyocera TCG121WXLPAPNN-AN20-SA Optical Details

Basic Information : Brightness 500 cd/m² (Typ.) Contrast Ratio 750:1 (Typ.) (Transmissive)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10) Optical Mode AWV, Normally Black, Transmissive
Viewing Direction Symmetry Response Time 18/12 (Typ.)(Tr/Td) (ms)
Color Performance : Chromaticity Wx:0.315; Wy:0.345 Color Numbers 16.2M (6-bit + FRC)
Color Temperature 6274K White Uniformity -
1931 Color Gamlt : NTSC Ratio 49% sRGB 68% coverage
Adobe RGB 51% coverage DCI-P3 51% coverage
Rec.2020 36% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



Kyocera TCG121WXLPAPNN-AN20-SA Electronics Details

Frame Frequency : 60Hz
Reverse Scan : Yes (180°)



Kyocera TCG121WXLPAPNN-AN20-SA Backlight Details

Back-light Features: Lamp Shape - Lamp Type WLED Life Time 50K(Typ.) (Hours)
Replacement - Amount - Position Edge light type
Interface Features : Type Connector Position - Lamp Driver With LED Driver
Interface Detail : Brand Model Pin Pitch Pins Amount Configuration
JST SM08B-SHLS-G-TF(LF)(SN) 1.0 mm 8 pins 1 pcs
Driver Electrical : Voltage Input 12.0V (Typ.) Current Input 460/600mA (Typ./Max.)



Kyocera TCG121WXLPAPNN-AN20-SA Interface Details

Signal Systerm : LVDS (1 ch, 8-bit) Logic Voltage -
Signal Electrical : Voltage Input 3.3V (Typ.) Current Input 375/490mA (Typ./Max.)
Interface Features : Type Connector Position -
Connector Detail : Brand Model Pin Pitch Pins Amount Configuration
HRS DF19L-20P-1H(54) 1.0 mm 20 pins 1 pcs



FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
