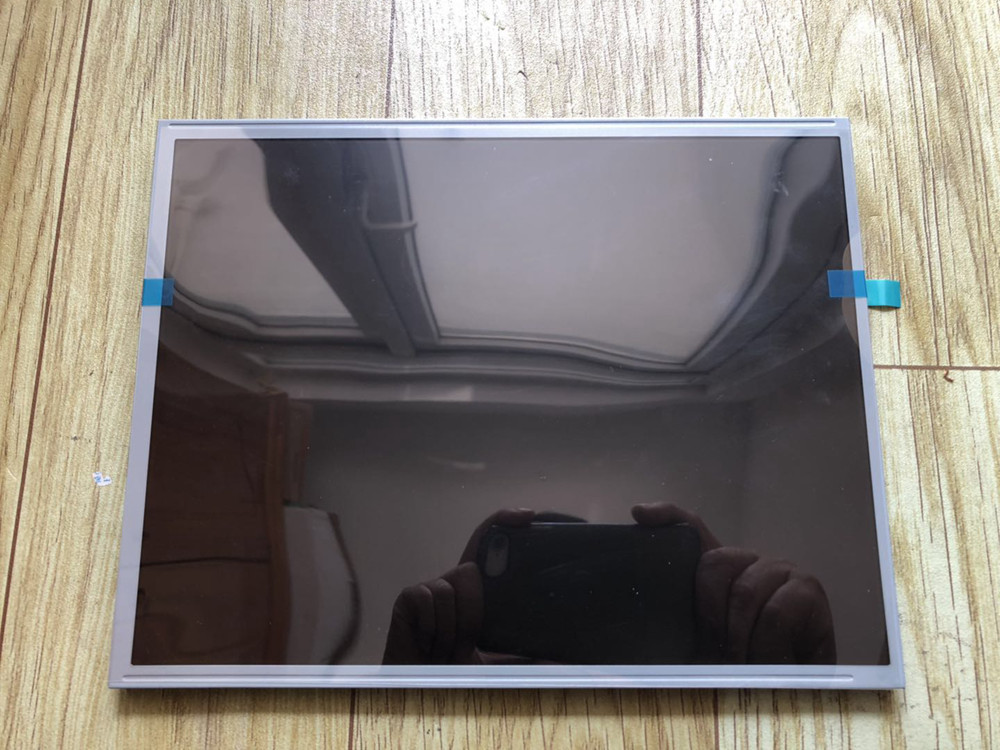

TCG121WXGLPAPCx-AC50-S Kyocera 12.1INCH LCM 1280×800RGB 750NITS WLED LVDS INDUSTRIAL LCD DISPLAY

  • 1
  • 2
  • 3

Brand Name : Kyocera

Model Number : TCG121WXGLPAPCx-AC50-S

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/WESTERNUNION/ESCROW

Supply Ability : 50PCS

Delivery Time : 1-2day

Packaging Details : STANDARD PACKING

MODEL NUMBER : TCG121WXGLPAPCx-AC50-S

BRAND : Kyocera

SIZE : 12.1INCH

RESOLUTION : 1280×800RGB

BRIGHTNESS : 750 cd/m² (Typ.)

Signal Interface : LVDS (1 ch, 6/8-bit) , 20 pins Connector

Lamp Type : 4 strings WLED , 60K hours , Without Driver

TEMPERATURE RANGE : Operating Temp.: -30 ~ 80 °C ; Storage Temp.: -30 ~ 80 °C

Contact Now

Kyocera TCG121WXGLPAPCx-AC50-S Application Details

Basic Info : Panel Brand   Panel Model TCG121WXGLPAPCx-AC50-S
Diagonal Size 12.1" Application




  •
Panel Type a-Si TFT-LCD , LCM Model Alias -
Reliability : Operating Temp. -30 ~ 80 °C Storage Temp. -30 ~ 80 °C
RoHS State   Vibration Rating -



Kyocera TCG121WXGLPAPCx-AC50-S Mechanical Details

Pixel Features : Pixel Format 1280(RGB)×800 [WXGA] Dot Pitch 0.068×0.204 mm (H×V)
Configuration RGB Vertical Stripe Pixel Pitch 0.204×0.204 mm (H×V) [124PPI]
Mechanical Size : Display Area 261.12×163.2 mm (H×V) Bezel Area -
Outline Dim. 303×205 mm (H×V) Outline Depth 13.5±1 mm
Outline Features : Form Factor Flat Rectangle Orientation Landscape type
Aspect Ratio 16:10 (H:V) Shape Style
Touch Screen : Touch Points 10 points TP Signal USB
TP Controller With touch controller Touchscreen PCAP
Holes & Brackets : Side mounting holes (4-M2) on left, right bezel
Other Features : Weight TBD Surface Antiglare, Hard coating (6H)
Panel Cover With Strengthened Cover Glass



Kyocera TCG121WXGLPAPCx-AC50-S Optical Details

Basic Information : Brightness 750 cd/m² (Typ.) Contrast Ratio 1000:1 (Typ.) (Transmissive)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10) Optical Mode AWV, Normally Black, Transmissive
Viewing Direction Symmetry Response Time 18/12 (Typ.)(Tr/Td) (ms)
Color Performance : Chromaticity Wx:0.300; Wy:0.335 Color Numbers 262K/16.7M (6-bit / 8-bit)
Color Temperature 7136K White Uniformity -
1931 Color Gamlt : NTSC Ratio 50% sRGB 70% coverage
Adobe RGB 53% coverage DCI-P3 52% coverage
Rec.2020 38% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Dispaly Performance : Outdoor Visibility Sunlight Readable Transmittance -



Kyocera TCG121WXGLPAPCx-AC50-S Electronics Details

Frame Frequency : 60Hz
Reverse Scan : Yes (180°)



Kyocera TCG121WXGLPAPCx-AC50-S Backlight Details

Back-light Features: Lamp Shape 4 strings Lamp Type WLED Life Time 60K(Typ.) (Hours)
Replacement - Amount 4 strings Position Edge light type
Lamp Electrical : Voltage Input 31.7/36.1V (Typ./Max.) Current Input 85mA (Typ.)
Interface Features : Type Connector Position - Lamp Driver No
Interface Detail : Brand Model Pin Pitch Pins Amount Configuration
JST SM08B-SHLS-G-TF(LF)(SN) 1.0 mm 8 pins 1 pcs BLE-8PINS-AAAACCCC



Kyocera TCG121WXGLPAPCx-AC50-S Interface Details

Signal Systerm : LVDS (1 ch, 6/8-bit) Logic Voltage -
Signal Electrical : Voltage Input 3.3V (Typ.) Current Input 375/490mA (Typ./Max.)
Interface Features : Type Connector Position -
Connector Detail : Brand Model Pin Pitch Pins Amount Configuration
JAE FI-SE20P-HFE 1.25 mm 20 pins 1 pcs LVDS-20P1C8B-170A
