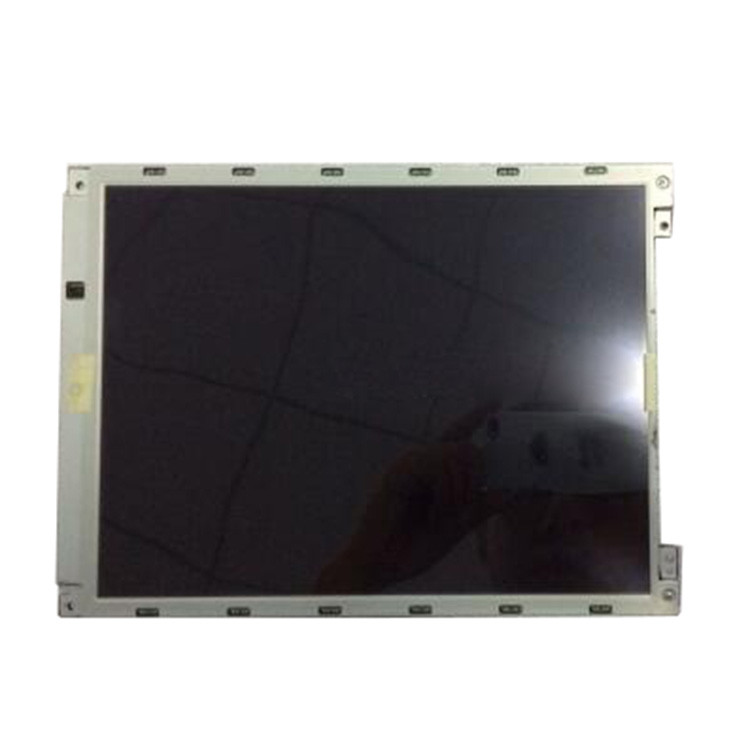

TCG121XGLPAPNN-AN20-SA Kyocera 12.1INCH LCM 1024×768RGB 400NITS WLED LVDS INDUSTRIAL LCD DISPLAY

  • 1
  • 2
  • 3

Brand Name : Kyocera

Model Number : TCG121XGLPAPNN-AN20-SA

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/WESTERNUNION/ESCROW

Supply Ability : 100PCS

Delivery Time : 1-2day

Packaging Details : STANDARD PACKING

BRAND : Kyocera

MODEL NUMBER : TCG121XGLPAPNN-AN20-SA

SIZE : 12.1INCH

RESOLUTION : 1024×768RGB

BRIGHTNESS : 400 cd/m² (Typ.)

Interface Type : LVDS (1 ch, 6/8-bit) , 20 pins Connector

Light Source : WLED , 50K hours , With LED Driver

Environment : Operating Temperature: -30 ~ 80 °C ; Storage Temperature: -30 ~ 80 °C

Contact Now

Kyocera TCG121XGLPAPNN-AN20-SA Application Features

Basic Information : Brand Model Type Model Alias
  TCG121XGLPAPNN-AN20-SA a-Si TFT-LCD , LCM -
Reliability : RoHS Operating Temperature Storage Temperature Vibration Resistance
  -30 ~ 80 °C -30 ~ 80 °C -



Kyocera TCG121XGLPAPNN-AN20-SA Mechanical Features

Panel Size : 12.1 inch
Pixel Features : Resolution Pixel Arrangement Dot Pitch (W×H) Pixel Pitch (W×H)
1024(RGB)×768, XGA RGB Vertical Stripe 0.080×0.240 mm 0.240×0.240 mm [105PPI]
Mechanical Size : Active Area (W×H) Bezel Area (W×H) Outline Dimension (W×H) Outline Depth
245.76×184.32 mm 249.0×187.5 mm 260.5×203.4 mm 10.3±0.5 mm
Outline Features : Form Style Aspect Ratio Orientation Shape Style
Flat Rectangle 4:3 (W : H) Landscape type
Fixation : Side mounting holes (6-M3) on left, right bezel
Other Features : Panel Cover Weight Surface
- 670g Antiglare



Kyocera TCG121XGLPAPNN-AN20-SA Optical Features

Basic Information : Brightness Operating Mode Contrast Ratio
400 cd/m² (Typ.) AWV, Normally Black, Transmissive 750:1 (Typ.) (Transmissive)
Viewing Angle(L/R/U/D) Viewing Direction Response Speed
85/85/85/85 (Typ.)(CR≥10) Symmetry 18/12 (Typ.)(Tr/Td) (ms)
Dispaly Color : Color Temperature Color Amount White color Chromaticity
7203K 262K/16.2M (6-bit / 6-bit + FRC) X:0.300; Y:0.330
1931 Color Gamlt : NTSC Ratio sRGB Coverage Adobe RGB Coverage
48% 67% 50%
DCI-P3 Coverage Rec.2020 Coverage Remarks
50% 36% sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



Kyocera TCG121XGLPAPNN-AN20-SA Electronics Features

Frame Rate : 60Hz
Reverse Scan : Yes (180°)



Kyocera TCG121XGLPAPNN-AN20-SA Interface Features

Signal Electrical : Current Input Voltage Input Consumption
300/390mA (Typ./Max.) 3.3V (Typ.) -
Interface Features : Position Type Interface
- Connector LVDS (1 ch, 6/8-bit)
Signal Interface : Brand Model Amount Pin Pitch Pins Pin Assignment
I-PEX 20186-020E-11F 1 pcs 1.25 mm 20 pins LVDS-20P1C8B-010H



Kyocera TCG121XGLPAPNN-AN20-SA Backlight Features

Backlight Features: Type Position Shape Amount  Life(Hours) Replacement
WLED Edge light type - - 50K(Typ.) -
Interface Features : Position Type WLED Driver
- Connector With LED Driver
Interface Detail Brand Model Amount Pin Pitch Pins Pin Assignment
JST SM06B-SHLS-G-TF(LF)(SN) 1 pcs 1.0 mm 6 pins
Driver Electrical : Current Input Voltage Input Consumption
480/560mA (Typ./Max.) 12.0V (Typ.) -



FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
