TCG121XGLPAPNN-AN20-S Kyocera 12.1INCH LCM 1024×768RGB 500NITS WLED LVDS INDUSTRIAL LCD DISPLAY

Product Categories
Sapientia Display Co.,LIMITED
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

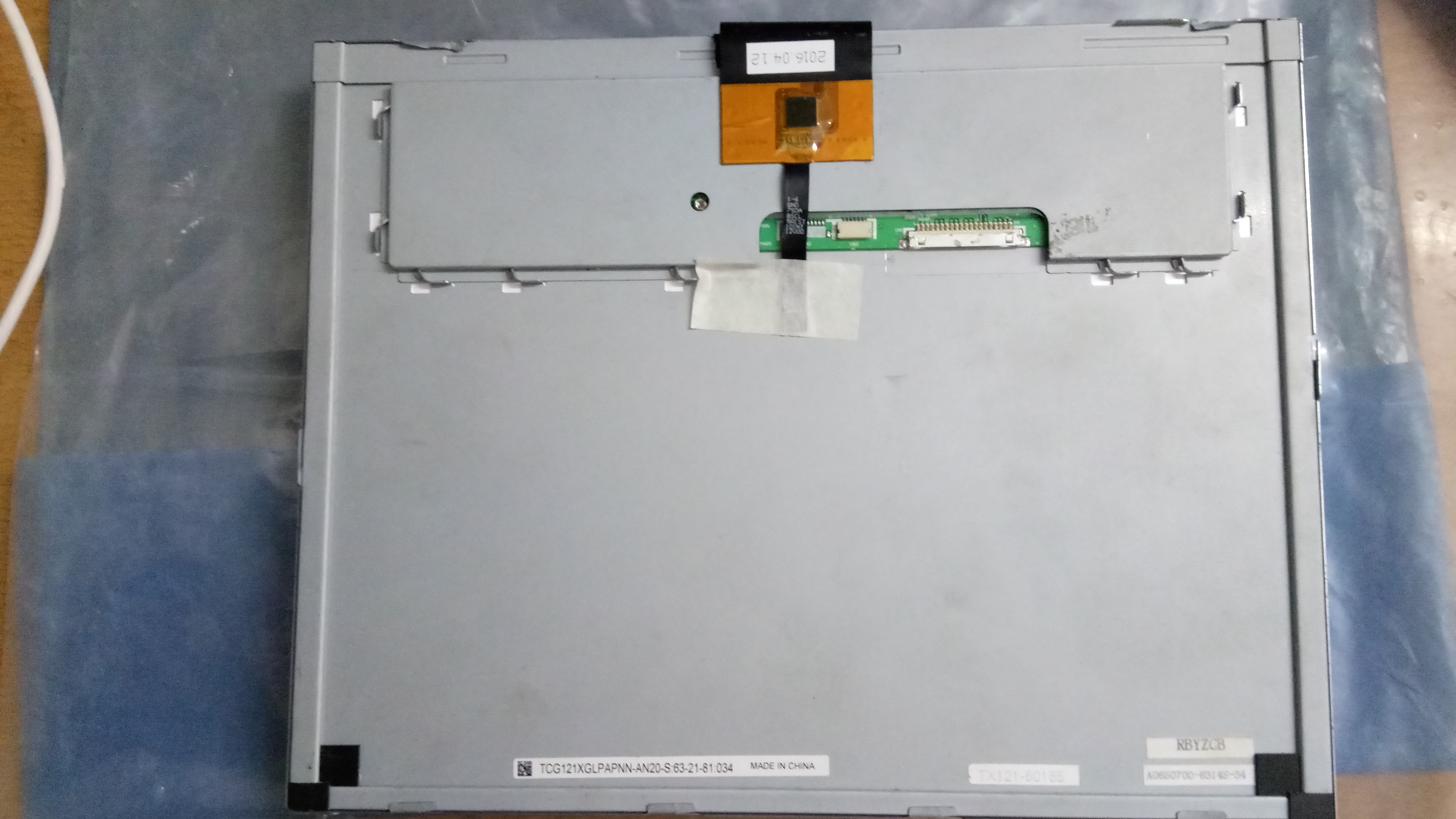

TCG121XGLPAPNN-AN20-S Kyocera 12.1INCH LCM 1024×768RGB 500NITS WLED LVDS INDUSTRIAL LCD DISPLAY

  • 1
  • 2
  • 3

Brand Name : Kyocera

Model Number : TCG121XGLPAPNN-AN20-S

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/WESTERNUNION/ESCROW

Supply Ability : 100PCS

Delivery Time : 1-2day

Packaging Details : STANDARD PACKING

BRAND : Kyocera

MODEL NUMBER : TCG121XGLPAPNN-AN20-S

SIZE : 12.1INCH

RESOLUTION : 1024×768RGB

BRIGHTNESS : 500 cd/m² (Typ.)

Signal Type : LVDS (1 ch, 6/8-bit) , 20 pins Connector

Backlight : WLED , 50K hours , With LED Driver

Max. Ratings : Storage Temp.: -30 ~ 80 °C Operating Temp.: -30 ~ 80 °C

Contact Now

Kyocera TCG121XGLPAPNN-AN20-S Application Details

Basic Detail : Manufacturer   Model Name TCG121XGLPAPNN-AN20-S
Panel Type a-Si TFT-LCD , LCM Another Name -
Panel Size 12.1 inch Designed For
Maximum Ratings : OP Temperature -30 ~ 80 °C ST Temperature -30 ~ 80 °C
Vibration Level - RoHS



Kyocera TCG121XGLPAPNN-AN20-S Optical Details

Basic Information : Luminance 500 cd/m² (Typ.) Contrast Ratio 750 : 1 (Typ.) (Transmissive)
Good View at Symmetry Response Speed 18/12 (Typ.)(Tr/Td) (ms)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10)  Operating Mode AWV, Normally Black, Transmissive
Color Performance : Chromaticity Wx:0.300; Wy:0.330 Support Color 262K/16.2M (6-bit / 6-bit + FRC)
Color Temperature 7203K White Uniformity -
1931 Color Gamlt : NTSC Ratio 51% sRGB 71% coverage
Adobe RGB 53% coverage DCI-P3 53% coverage
Rec.2020 38% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



Kyocera TCG121XGLPAPNN-AN20-S Mechanical Details

Pixel Features : Number of Pixel 1024(RGB)×768 [XGA] Arrangement RGB Vertical Stripe
Dot Pitch(W×H) 0.080×0.240 mm Pixel Pitch(W×H) 0.240×0.240 mm [105PPI]
Physical Size : Active Viewing 245.76(W)×184.32(H) mm Overall Dim. 260.5(W)×203.4(H) mm
Bezel Opening 249.0(W)×187.5(H) mm Overall Depth 10.3±0.5 mm
Outline Features : Form Shape Flat Rectangle Orientation Landscape type
Aspect Ratio(W:H) 4:3 Shape Style
Fixation : Side mounting holes (6-M3) on left, right bezel
Other Detail : Mass 670g Surface Antiglare



Kyocera TCG121XGLPAPNN-AN20-S Electronics Details

Refresh Rate : 60Hz
Reverse Scan : Yes (180°)



Kyocera TCG121XGLPAPNN-AN20-S Interface Details

Signal Electrical : Input Current 300/390mA (Typ./Max.) Input Voltage 3.3V (Typ.)
Consumption - Signal Interface LVDS (1 ch, 6/8-bit)
Interface Features : Position - Physical Type Connector
Signal Interface : Brand Model Amount Pin Pitch Pin Amount Pin Assignment
I-PEX 20186-020E-11F 1 pcs 1.25 mm 20 pins LVDS-20P1C8B-010H



Kyocera TCG121XGLPAPNN-AN20-S Lightting Details

Lamp Features: Lamp Shape - Lamp Type WLED Position Edge light type
Exchange - Amount - Life 50K(Typ.) (Hours)
Interface Features : Position - Physical Type Connector
Interface Detail : Brand Model Amount Pin Pitch Pin Amount Pin Assignment
JST SM06B-SHLS-G-TF(LF)(SN) 1 pcs 1.0 mm 6 pins
Backlight Driver : With LED Driver
Driver Electrical : Input Current 480/560mA (Typ./Max.) Input Voltage 12.0V (Typ.)



FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.





TCG121XGLPAPNN-AN20-S Kyocera 12.1INCH LCM 1024×768RGB 500NITS WLED LVDS INDUSTRIAL LCD DISPLAYTCG121XGLPAPNN-AN20-S Kyocera 12.1INCH LCM 1024×768RGB 500NITS WLED LVDS INDUSTRIAL LCD DISPLAY
