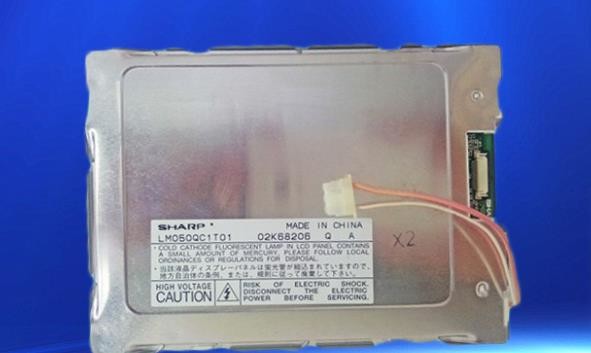

5" LCM 320×240RGB 100cd/m² LM050QC1T01 Sharp TFT LCD Display

Name: 5quot LCM 320240RGB 100cdm LM050QC1T01 Sharp TFT LCD Display
Brand: SHARP
Price: 1 USD

Buy cheap 5" LCM 320×240RGB 100cd/m² LM050QC1T01 Sharp TFT LCD Display product

Brand Name : SHARP

Model Number : LM050QC1T01

Certification : ISO9001

MOQ : 1PCS

Payment Terms : TT/PAYPAL/WESTERN UNION/ESCROW

Supply Ability : 200PCS

Delivery Time : 1-2 DAYS

Packaging Details : STANDARD PACKING

Screen Size : 5.0 inch

Model Name : LM050QC1T01

Outline(mm) : 134 × 100 (H×V×D)

Luminance : 100 cd/m² (Typ.)

Pixel Number : 320(RGB)×240 (QVGA) 80PPI

Backlight : 1 pcs CCFL , 25K hours , No Driver

Signal Type : Parallel Data (8-bit) , 20 pins Connector

Max. Ratings : Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 40 °C

Contact Now

Sharp LM050QC1T01 Optical Features

Basic Information :	Luminance (cd/m²)	Viewing Angle (L/R/U/D)	Response Time (ms)
	100 (Typ.)	35/35/15/25 (Typ.)(CR≥5)	230/120 (Typ.)(Tr/Td)
	Best View on	Display Mode	Contrast Ratio
	-	STN, Normally Black, Transmissive	30 : 1 (Typ.) (Transmissive)
Dispaly Color :	Color Temperature	Display Colors	White Coordinate
Dispaly Color :	6551K	Color	X:0.310; Y:0.340

Sharp LM050QC1T01 Mechanical Features

Panel Size :	5.0"
Pixel Features :	Pixel Format	Pixel Configuration	Pixel Pitch (mm)	Dot Pitch (mm)
Pixel Features :	320(RGB)×240 [QVGA]	RGB Vertical Stripe	0.315×0.315 [80PPI]	0.105×0.315
Mechanical Size :	Active Area (mm)	Bezel Area (mm)	Outline Dimension (mm)	Outline Depth (mm)
Mechanical Size :	100.8(H) × 75.6(V)	105.2(H) × 80.0(V)	134(H) × 100(V)	8.5 mm
Outline Features :	Form Factor	Orientation	Aspect Ratio	Shape Style
Outline Features :	Flat Rectangle	Landscape type	4:3 (H:V)
Other Detail :	Weight	Panel Cover	Treatment
Other Detail :	145g	-	-

Sharp LM050QC1T01 Interface Features

Panel Driving Electrical :	Voltage Supply		Current Supply			Power
Panel Driving Electrical :	3.3V (Typ.)		0.6mA (Typ.)			-
Interface Features :	Position	Signal				Type
Interface Features :	-	Parallel Data (8-bit)				Connector
Connector Detail :	Brand	Model	Pin Pitch	Pin Amount	Quantity	Configuration
Connector Detail :	IRISO	IMSA-9632S-20A-T	0.5 mm	20 pins	1 pcs

Sharp LM050QC1T01 Backlight Features

Lamp Features:	Type	Position	Quantity	Shape	Life(Hours)	Lamp Exchange
Lamp Features:	CCFL	Edge light type	1 pcs	Straight	25K(Min.)	-
CCFL Electrical :	Voltage Supply		Current Supply			Power
	305±30V		5.0/5.5mA (Typ./Max.)			1.53W (Typ.)
	Operating Frequency			Kick-off Voltage
	30/100KHz (Min./Max.)			520/780V (Min.)(Ta=+25/0℃)
Interface Features :	Position	Backlight Driver				Type
Interface Features :	-	No				Connector
Interface Detail :	Brand	Model	Pin Pitch	Pin Amount	Quantity	Configuration
Interface Detail :	JST	BHR-03VS-1	4.0 mm	3 pins	1 pcs	BLL-3PINS-HNL

LM050QC1T01 supports display 320(RGB)×240 (QVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 100.8(W)×75.6(H) mm, outline size of 134(W)×100(H) mm, viewing area size of 105.2(W)×80.0(H) mm, net weight of 145g. As a STN, Normally Black, Transmissive LCM product, LM050QC1T01 can provides 100 cd/m² display brightness 30:1 transimissive contrast ratio, 35/35/15/25 (Typ.)(CR≥5) (L/R/U/D) viewing angle , and response time of 230/120 (Typ.)(Tr/Td) ms., thus presenting a palette of Color colors. This product adopted 1 pcs CCFL as it's backlight systerm which was placed as Edge light type and have a working life time of 25K hours, external backlight driver is additionally needed.
