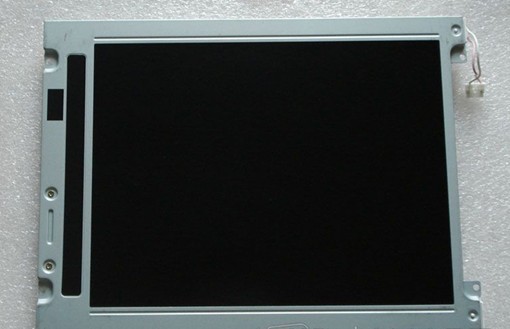

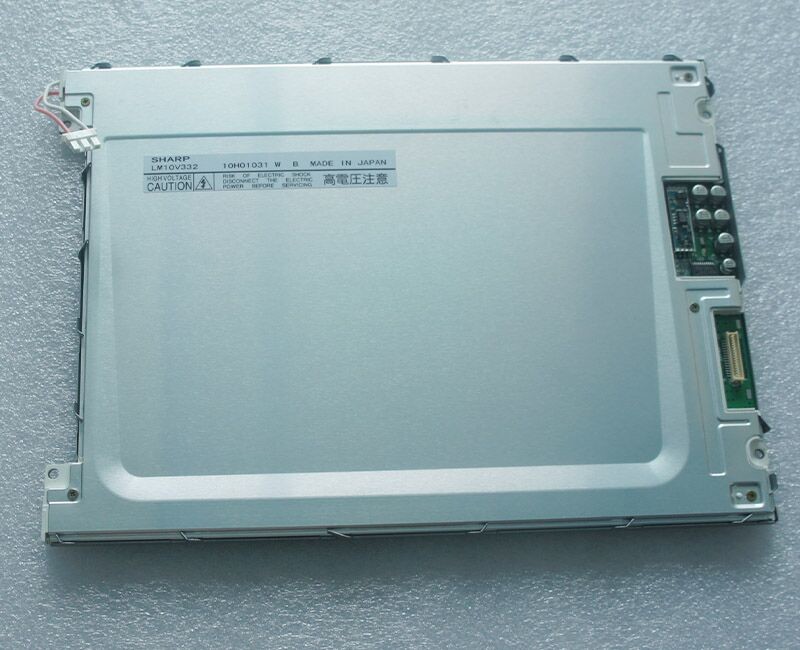

10.4" LCM 640×480RGB 160cd/m² LM10V332 Sharp TFT LCD Display

Name: 104quot LCM 640480RGB 160cdm LM10V332 Sharp TFT LCD Display
Brand: SHARP
Price: 1 USD

Buy cheap 10.4" LCM 640×480RGB 160cd/m² LM10V332 Sharp TFT LCD Display product

Brand Name : SHARP

Model Number : LM10V332

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/WESTERN UNION/ESCROW

Supply Ability : 300PCS

Delivery Time : 1-2 DAYS

Packaging Details : STANDARD PACKING

Panel Model : LM10V332

Panel Size : 10.4INCH

Resolution : 640(RGB)×480, VGA, 76PPI

Brightness : 160 cd/m² (Typ.)

Bezel Opening : 215.4(W)×162.4(H) mm

Lamp Type : 1 pcs CCFL , 40K hours , Without Driver

Environment : Operating Temp.: 0 ~ 40 °C ; Storage Temp.: -25 ~ 60 °C

Viewing Angle : 30/30/25/15 (Typ.)

Contact Now

Sharp LM10V332 Mechanical Features

Panel Size :	10.4 inch
Pixel Features :	Resolution	Pixel Arrangement	Dot Pitch (W×H)	Pixel Pitch (W×H)
Pixel Features :	640(RGB)×480, VGA	RGB Vertical Stripe	0.110×0.330 mm	0.330×0.330 mm [76PPI]
Mechanical Size :	Active Area (W×H)	Bezel Area (W×H)	Outline Dimension (W×H)	Outline Depth
Mechanical Size :	211.2×158.4 mm	215.4×162.4 mm	246×193.6 mm	8.5 (Max.) mm
Outline Features :	Form Style	Aspect Ratio	Orientation	Shape Style
Outline Features :	Flat Rectangle	4:3 (W : H)	Landscape type
Fixation :	Face mounting holes (4-Φ3.5) on left, right bezel
Other Features :	Panel Cover	Weight	Surface
Other Features :	-	450g (Typ.)	-

Sharp LM10V332 Optical Features

Basic Information :	Brightness	Operating Mode	Contrast Ratio
	160 cd/m² (Typ.)	STN, Normally Black, Transmissive	50:1 (Typ.) (Transmissive)
	Viewing Angle(L/R/U/D)	Viewing Direction	Response Speed
	30/30/25/15 (Typ.)(CR≥5)	-	220/80 (Typ.)(Tr/Td) (ms)
Dispaly Color :	Color Temperature	Color Amount	White color Chromaticity
Dispaly Color :	9154K	Color	X:0.275; Y:0.320

Sharp LM10V332 Interface Features

Signal Electrical :	Current Input		Voltage Input			Consumption
Signal Electrical :	90/135mA (Typ./Max.)		5.0V (Typ.)			450/680mW (Typ./Max.)
Interface Features :	Position	Type	Interface
Interface Features :	-	Connector	Parallel Data (8-bit)
Signal Interface :	Brand	Model	Amount	Pin Pitch	Pins	Pin Assignment
Signal Interface :	HRS	DF9B-31P-1V	1 pcs	1.0 mm	31 pins

Sharp LM10V332 Backlight Features

Backlight Features:	Type	Position	Shape	Amount	Life(Hours)	Replacement
Backlight Features:	CCFL	Edge light type (Top side)	Straight	1 pcs	40K(Typ.)	-
CCFL Electrical :	Current Input		Voltage Input			Consumption
	5.5mA (Typ.)		520V (Typ.)			2.86W (Typ.)
	Turn-on Voltage		Lamp Frequency
	760/1300V (Max.)(Ta=+25/0℃)		40/70KHz (Min./Max.)
Interface Features :	Position	Type	CCFL Driver
Interface Features :	-	Connector	No
Interface Detail	Brand	Model	Amount	Pin Pitch	Pins	Pin Assignment
Interface Detail	JST	BHR-03VS-1	1 pcs	4.0 mm	3 pins	BLL-3PINS-HNL

LM10V332 supports display 640(RGB)×480 (VGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 211.2(W)×158.4(H) mm, outline size of 246(W)×193.6(H) mm, viewing area size of 215.4(W)×162.4(H) mm, net weight of 450g (Typ.). As a STN, Normally Black, Transmissive LCM product, LM10V332 can provides 160 cd/m² display brightness 50:1 transimissive contrast ratio, 30/30/25/15 (Typ.)(CR≥5) (L/R/U/D) viewing angle , and response time of 220/80 (Typ.)(Tr/Td) ms., thus presenting a palette of Color colors. This product adopted 1 pcs CCFL as it's backlight systerm which was placed as Edge light type (Top side) and have a working life time of 40K hours, external backlight driver is additionally needed. LM10V332 utilizes Parallel Data (8-bit) as it's signal inputting systerm, which connected by 31 pins Connector with power supply voltage of 5.0V (Typ.).
