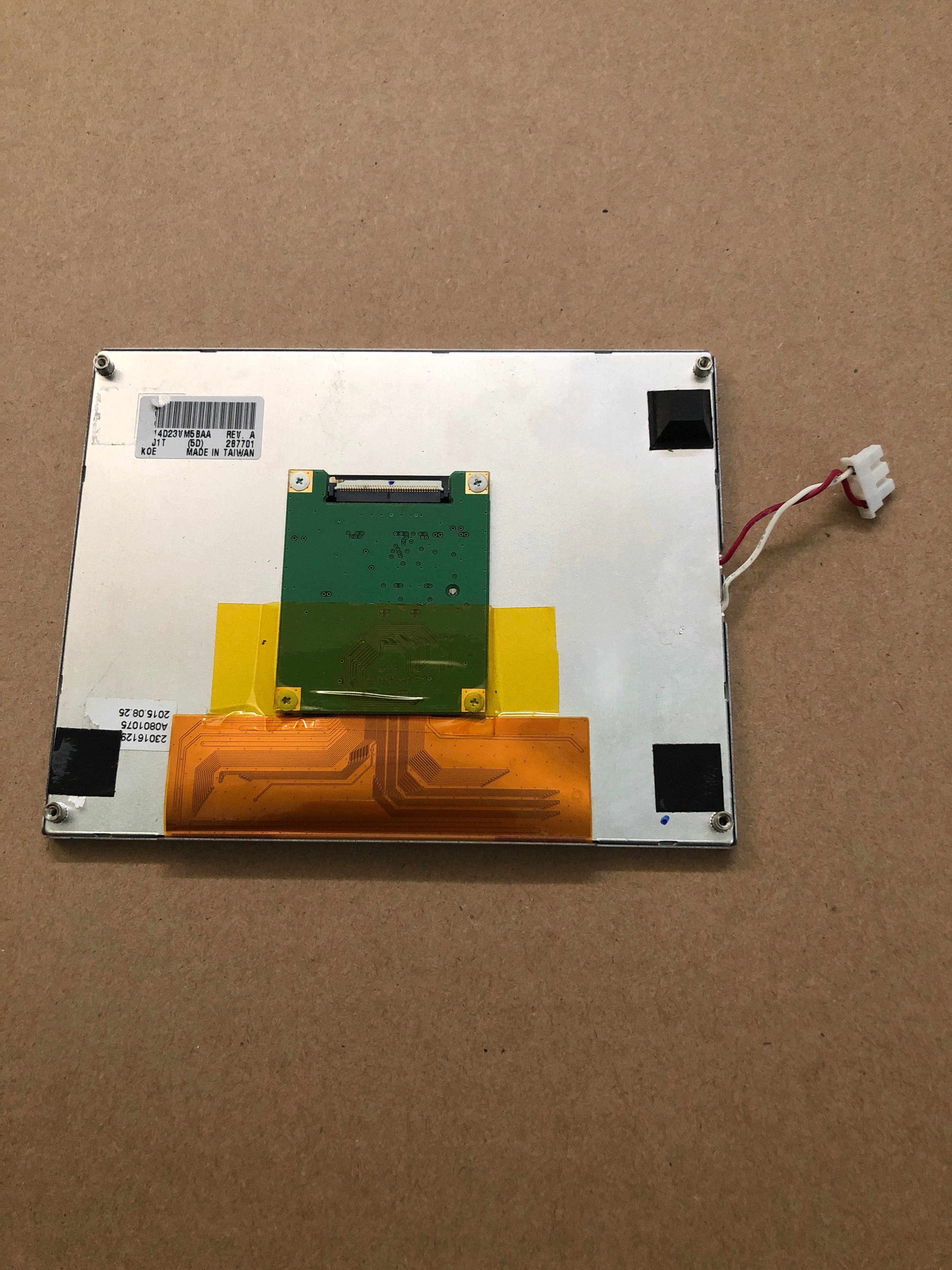

TCG057VGLCA-G00 Kyocera 5.7INCH LCM 640×480RGB 300NITS WLED TTL INDUSTRIAL LCD DISPLAY

Name: TCG057VGLCAG00 Kyocera 57INCH LCM 640480RGB 300NITS WLED TTL INDUSTRIAL LCD DISPLAY
Brand: Kyocera
Price: 1 USD

Buy cheap TCG057VGLCA-G00 Kyocera 5.7INCH LCM 640×480RGB 300NITS WLED TTL INDUSTRIAL LCD DISPLAY product

Brand Name : Kyocera

Model Number : TCG057VGLCA-G00

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/WESTERNUNION/ESCROW

Supply Ability : 50PCS

Delivery Time : 1-2day

Packaging Details : STANDARD PACKING

BRAND : Kyocera

MODEL NUMBER : TCG057VGLCA-G00

SIZE : 5.7INCH

RESOLUTION : 640×480RGB

BRIGHTNESS : 300 cd/m² (Typ.)

Signal Interface : Parallel RGB (1 ch, 6-bit) , 33 pins Connector

Lamp Type : WLED , 50K hours , Without Driver

Environment : Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C

Contact Now

Kyocera TCG057VGLCA-G00 Application Details

Basic Information :	Brand TCG057VGLCA-G00Model Type a-Si TFT-LCD , LCM Used For 5.7 inchScreen Size Alias -
Environment :	Storage Temp. -30 ~ 80 °C Operating Temp. -20 ~ 70 °C RoHS -Vibration

Kyocera TCG057VGLCA-G00 Mechanical Details

Pixel Features :	Resolution 640(RGB)×480, VGA Dot Pitch(mm) 0.060×0.180 (H×V) Pixel Format RGB Vertical Stripe Pixel Pitch(mm) 0.180×0.180 (H×V) [141PPI]
Mechanical Size :	Active Area(mm) 115.2(H) × 86.4(V) Bezel Area(mm) 118.4(H) × 89.6(V) Outline Dim.(mm) 144(H) × 104.8(V) Depth(mm) 13.0±0.5
Outline Features :	Form Style Flat Rectangle Shape Style Aspect Ratio 4:3 (H:V) Orientation Landscape type
Mounting :	Rear mounting holes (4-Φ2.6)
Other Spec :	Weight 210g (Typ.) Treatment Glare (Haze 0%)

Kyocera TCG057VGLCA-G00 Optical Details

Basic Information :	Luminance(cd/m²) 300 (Typ.) Contrast Ratio 500:1 (Typ.) (Transmissive) Viewing Angle 80/80/80/80 (Typ.)(CR≥5) Display Mode TN, Normally White, Transmissive Best View on - Response(ms) 10/25 (Typ.)(Tr/Td)
Color Performance :	White Coordinate Wx:0.340; Wy:0.360 Display Colors 262K (6-bit) Color Temperature 5208K White Uniformity -
1931 Color Gamlt :	NTSC Ratio 50% sRGB 67% coverage Adobe RGB 52% coverage DCI-P3 52% coverage Rec.2020 38% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

Kyocera TCG057VGLCA-G00 Electronics Details

Frame Rate :	55Hz
Reverse Scan :	Yes (U/D, L/R)
Time Controller (T-CON) :	Embedded T-CON

Kyocera TCG057VGLCA-G00 Interface Detail

Signal Electrical :	Voltage Supply 3.3V (Typ.) Current Supply 150/195mA (Typ./Max.)
Signal Type :	Parallel RGB (1 ch, 6-bit) Logic Voltage 0≤VIL≤0.3VDD; 0.7VDD≤VIH≤VDD
Interface Features :	Position - Type Connector
Interface Detail :	Brand Model Pitch Pins Quantity Pin Configuration IRISO IMSA-9632S-33Z02-GF1 0.5 mm 33 pins 1 pcs DRGB-33P1C6B-020A

Kyocera TCG057VGLCA-G00 Backlight Details

Backlight Features :	Type WLED Quantity - Position Edge light type Replacement - Shape - Life Time 50K(Typ.) (Hours)
Lamp Electrical :	Voltage Supply 23.1/25.9V (Typ./Max.) Current Supply 25mA (Typ.)
Interface Features :	Position - Type Connector
Interface Detail :	Brand Model Pitch Pins Quantity Pin Configuration JST SHLP-06V-S-B 1.0 mm 6 pins 1 pcs BLE-6PINS-AAACCC
Backlight Driver :	No
