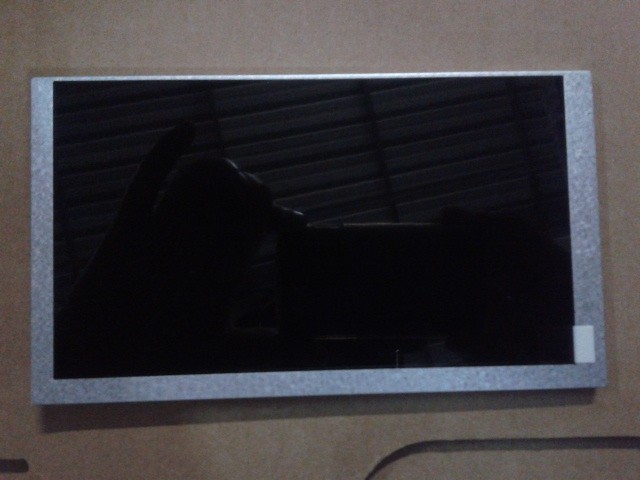

TCG070WVLPAAFA-AA00 Kyocera 7INCH LCM 800×480RGB 270NITS WLED TTL INDUSTRIAL LCD DISPLAY

Name: TCG070WVLPAAFAAA00 Kyocera 7INCH LCM 800480RGB 270NITS WLED TTL INDUSTRIAL LCD DISPLAY
Brand: Kyocera
Price: 1 USD

Buy cheap TCG070WVLPAAFA-AA00 Kyocera 7INCH LCM 800×480RGB 270NITS WLED TTL INDUSTRIAL LCD DISPLAY product

Brand Name : Kyocera

Model Number : TCG070WVLPAAFA-AA00

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/WESTERNUNION/ESCROW

Supply Ability : 200PCS

Delivery Time : 1-2day

Packaging Details : STANDARD PACKING

BRAND : Kyocera

MODEL NUMBER : TCG070WVLPAAFA-AA00

SIZE : 7INCH

RESOLUTION : 800×480RGB

BRIGHTNESS : 270 cd/m² (Typ.)

Interface Type : Parallel RGB (1 ch, 6-bit) , 40 pins Connector

Light Source : WLED , 100K hours , W/O Driver

Environment : Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C

Contact Now

Kyocera TCG070WVLPAAFA-AA00 Application Features

Basic Information :	Brand Name	Model Name	Type	Model Alias
Basic Information :		TCG070WVLPAAFA-AA00	a-Si TFT-LCD , LCM	-
Maximum Ratings :	RoHS	Operating Temperature	Storage Temperature	Vibration Level
Maximum Ratings :		-20 ~ 70 °C	-30 ~ 80 °C	-

Kyocera TCG070WVLPAAFA-AA00 Mechanical Features

Screen Size :	7.0"
Pixel Features :	Pixel Number	Pixel Format	Dot Pitch (H×V)	Pixel Pitch (H×V)
Pixel Features :	800(RGB)×480, WVGA	RGB Vertical Stripe	0.0635×0.1905 mm	0.1905×0.1905 mm [133PPI]
Mechanical Size :	Display Area (H×V)	Bezel Opening (H×V)	Overall Dimension (H×V)	Overall Depth
Mechanical Size :	152.4×91.44 mm	-	165×104.4 mm	10.0±0.6 mm
Outline Features :	Form Shape	Aspect Ratio (H:V)	Orientation	Shape Style
Outline Features :	Flat Rectangle	15:9	Landscape type
Touch Panel :	Touch Points	Signal Type	Controller	Technology
Touch Panel :	-	-	Without touch controller	4-wire Resistive Touch
Other Spec :	Mass	Panel Cover	Surface Treatment
Other Spec :	250g (Typ.)	-	Antiglare
Holes & Brackets :	Without

Kyocera TCG070WVLPAAFA-AA00 Optical Features

Basic Information :	Luminance	Work Mode	Contrast Ratio
	270 cd/m² (Typ.)	TN, Normally White, Transmissive	1000:1 (Typ.) (Transmissive)
	Good View at	Viewing Angle	Response Time
	12 o'clock	80/80/60/80 (Typ.)(CR≥10)	5/25 (Typ.)(Tr/Td) (ms)
Dispaly Color :	Color Temperature:	Support Color	Color Coordinate
Dispaly Color :	8405K	262K (6-bit)	X:0.290; Y:0.305
1931 Color Gamlt :	NTSC Ratio	sRGB Coverage	Adobe RGB Coverage
	49%	68%	51%
	DCI-P3 Coverage	Rec.2020 Coverage	Remarks
	51%	36%	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
White Uniformity :	1.43 (Max.)(5 points)

Kyocera TCG070WVLPAAFA-AA00 Electronics Features

Refresh Rate :	60Hz
Reverse Scan :	Yes (180°)
Time Controller (T-CON) :	Embedded T-CON

Kyocera TCG070WVLPAAFA-AA00 Backlight Features

Back-light Features:	Type	Position	Life(Hours)	Amount	Shape	Replacement
Back-light Features:	WLED	Edge light type	100K(Typ.)	-	-	-
WLED Electrical :	Input Voltage		Input Current			Power Consumption
WLED Electrical :	12.0/14.1V (Typ./Max.)		60mA (Typ.)
Interface Features :	WLED Driver State			Physical Type		Interface Position
Interface Features :	No			Included in panel signal interface		-

Kyocera TCG070WVLPAAFA-AA00 Interface Features

Signal Electrical :	Input Voltage		Input Current			Power Consumption
Signal Electrical :	3.3V (Typ.)		180/235mA (Typ./Max.)			0.594W (Typ.)
Voltage for Display Signals :	0≤VIL≤0.3VDD; 0.7VDD≤VIH≤VDD
Interface Features :	Signal Type			Physical Type		Interface Position
Interface Features :	Parallel RGB (1 ch, 6-bit)			Connector		-
Interface Detail :	Brand Name	Model Name	Amount	Pins	Pin Pitch	Pin Configuration
Interface Detail :	IRISO	IMSA-9681S-40A-GF	1 pcs	40 pins	0.5 mm
