LP156WHA-SPA1 LG Display 15.6" 1366(RGB)×768 400 cd/m² INDUSTRIAL LCD DISPLAY

Product Categories

Sapientia Display Co.,LIMITED

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

LP156WHA-SPA1 LG Display 15.6" 1366(RGB)×768 400 cd/m² INDUSTRIAL LCD DISPLAY

Name: LP156WHASPA1 LG Display 156quot 1366RGB768 400 cdm INDUSTRIAL LCD DISPLAY
Brand: LG Display
Price: 1 USD

Buy cheap LP156WHA-SPA1 LG Display 15.6" 1366(RGB)×768 400 cd/m² INDUSTRIAL LCD DISPLAY product

Brand Name : LG Display

Model Number : LP156WHA-SPA1

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Supply Ability : 100PCS

Delivery Time : 1-2 DAYS

Packaging Details : STANDARD PACKING

MODEL NUMBER : LP156WHA-SPA1

BRAND : LG Display

SIZE : 15.6 inch

BRIGHTNESS : 400CD/M2

Lamp Type : WLED

RESOLUTION : 1366(RGB)×768, WXGA, 100PPI

VIEWING ANGLEG : 85/85/85/85 (Typ.)(CR≥10)

TEMPERATURE RANGE : Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

Contact Now

LG Display LP156WHA-SPA1 Application Details

Basic Information :	Brand		Model	LP156WHA-SPA1 23 Compatible
	Type	LCM a-Si TFT-LCD	Used For

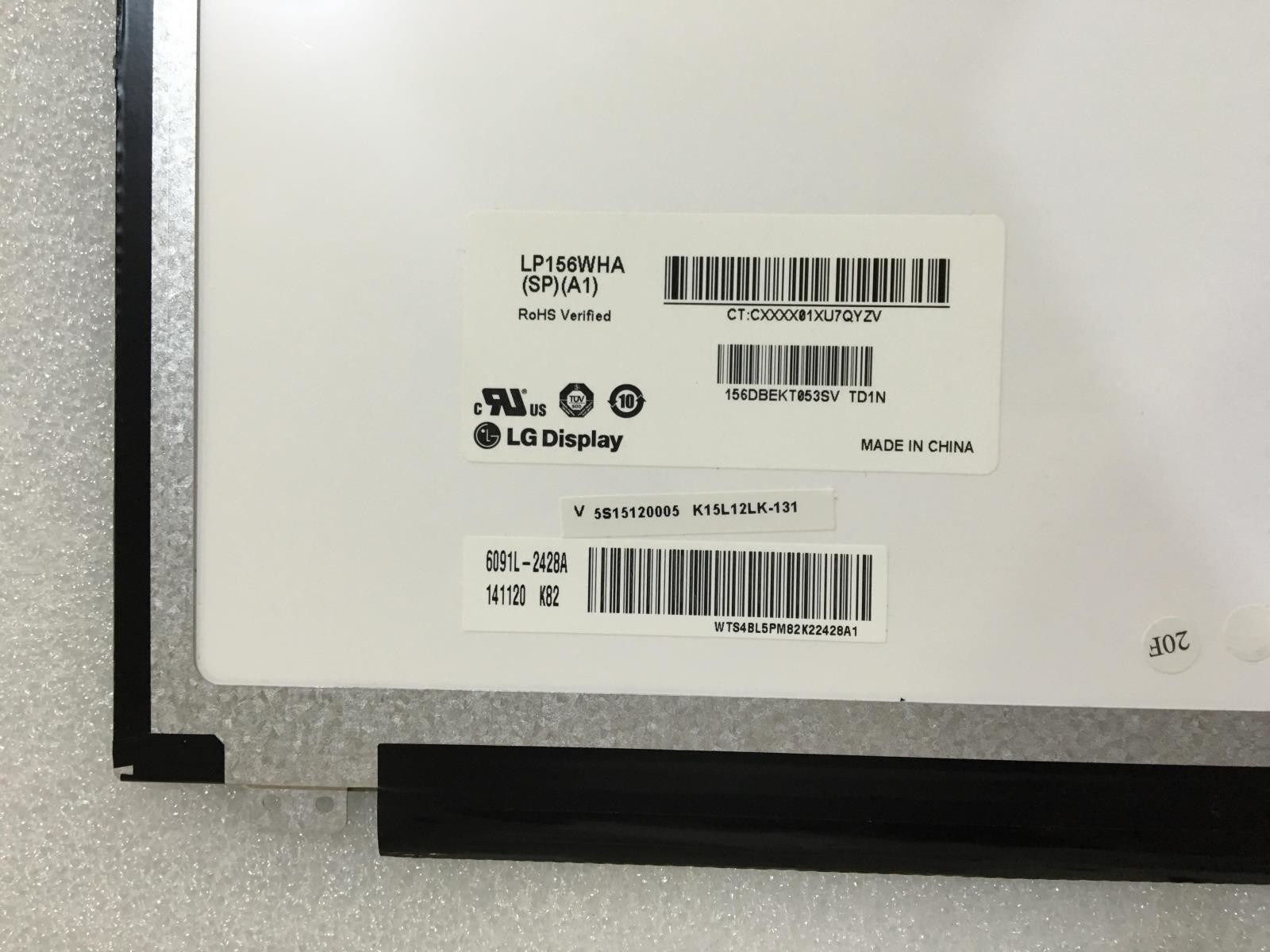

	Screen Size	15.6"	Alias	LP156WHA (SP)(A1), LGD03E7
Environment :	Storage Temp.	-20 ~~ 60 °C	Operating Temp.	0 ~~ 50 °C

LG Display LP156WHA-SPA1 Mechanical Details

Pixel Features :	Resolution	1366(RGB)×768, WXGA	Dot Pitch(mm)	0.084×0.252 (H×V)
Pixel Features :	Pixel Format	RGB Vertical Stripe	Pixel Pitch(mm)	0.252×0.252 (H×V) [100PPI]
Mechanical Size :	Active Area(mm)	344.232(H) × 193.536(V)	Bezel Area(mm)	347.5(H) × 196.8(V)
Mechanical Size :	Outline Dim.(mm)	359.5(H) × 223.5(V)	Depth(mm)	3.5/3.8 (Typ./Max.)
Outline Features :	Form Style	Flat Rectangle	Outline Shape	Flat (PCBA Flat, T3.4~4.0mm)
Outline Features :	Aspect Ratio	16:9 (H:V)	Orientation	Landscape type
Mounting :	Face mounting holes (8 pcs) on up, down slugs
Other Spec :	Weight	410/420g (Typ./Max.)	Treatment	Glare (Haze 0%), Hard coating (3H)

LG Display LP156WHA-SPA1 Optical Details

Basic Information :	Luminance(cd/m²)	400 (Typ.)	Contrast Ratio	800:1 (Typ.) (Transmissive)
	Viewing Angle	85/85/85/85 (Typ.)(CR≥10)	Display Mode	AH-IPS, Normally Black, Transmissive
	Best View on	Symmetry	Response(ms)	35 (Typ.)(Tr/Td)
Color Performance :	White Coordinate	X:0.313; Y:0.329	Display Colors	262K (6-bit)
Color Performance :	Color Temperature	6485K	White Uniformity	1.40/1.60 (Typ./Max.)(13 points)
1931 Color Gamlt :	NTSC Ratio	47%	sRGB	66% coverage
	Adobe RGB	49% coverage	DCI-P3	49% coverage
	Rec.2020	35% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

LG Display LP156WHA-SPA1 Interface Details

Signal Electrical :	Voltage Supply	3.3V (Typ.)		Current Supply	288/311mA (Typ./Max.)
Signal Electrical :	Consumption	0.95/1.09W (Typ./Max.)
Signal Type :	eDP (1 Lane), HBR1 (2.7G/lane)			Signal Voltage	-
Interface Features :	Position			Type	Connector
Interface Detail :	Brand	Model	Quantity	Pins	Pitch	Pin Configuration
Interface Detail :	JAE	HD2S030HA1	1 pcs	30 pins	0.5 mm	EDP-30P1L-030A

LG Display LP156WHA-SPA1 Backlight Details

Backlight Features:	Shape	4 strings	Type	WLED	Position	Edge light type
Backlight Features:	Replacement	-	Quantity	4 strings	Life Time	12K(Min.) (Hours)
Interface Features :	Position	-		Type	Included in panel signal interface
Backlight Driver :	With LED Driver
Driver Electrical :	Voltage Supply	7.0/12.0/20.0V (Min./Typ./Max.)		Current Supply	342/393mA (Typ./Max.)
Driver Electrical :	Consumption	4.1/4.72W (Typ./Max.)

LG Display LP156WHA-SPA1 Packing Details

Package Box :	Quantity	Weight	Box Size
Package Box :	20 pcs / box	-	478×365×328 mm (L×W×H)

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
