LM171WX3-TLC2 LG Display 17.1" 1440(RGB)×900 250 cd/m² INDUSTRIAL LCD DISPLAY

Brand Name : LG Display

Model Number : LM171WX3-TLC2

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Supply Ability : 100PCS

Delivery Time : 1-2 DAYS

Packaging Details : STANDARD PACKING

MODEL NUMBER : LM171WX3-TLC2

BRAND : LG Display

SIZE : 17.1INCH

BRIGHTNESS : 250CD/M2

Lamp Type : WLED

RESOLUTION : 1440(RGB)×900 (WXGA+) 99PPI

VIEWING ANGLEG : 85/85/65/85 (Typ.)(CR≥10

TEMPERATURE RANGE : Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

Contact Now

LG Display LM171WX3-TLC2 Application Details

Basic Detail : Manufacturer   Model Name LM171WX3-TLC2  4 Compatible
Panel Type a-Si TFT-LCD , LCM Another Name LM171WX3 (TL)(C2)
Panel Size 17.1 inch Designed For
Maximum Ratings : OP Temperature 0 ~ 50 °C ST Temperature -20 ~ 60 °C



LG Display LM171WX3-TLC2 Optical Details

Basic Information : Luminance 250 cd/m² (Typ.) Contrast Ratio 800 : 1 (Typ.) (Transmissive)
Good View at 6 o'clock Response Speed 2/6 (Typ.)(Tr/Td) (ms)
Viewing Angle 85/85/65/85 (Typ.)(CR≥10)  Operating Mode TN, Normally White, Transmissive
Color Performance : Chromaticity Wx:0.313; Wy:0.329 Support Color 16.7M (6-bit + Hi-FRC)
Color Temperature 6485K White Uniformity 1.33 (Max.)(9 points)
1931 Color Gamlt : NTSC Ratio 60% sRGB 84% coverage
Adobe RGB 63% coverage DCI-P3 62% coverage
Rec.2020 45% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



LG Display LM171WX3-TLC2 Mechanical Details

Pixel Features : Number of Pixel 1440(RGB)×900 [WXGA+] Arrangement RGB Vertical Stripe
Dot Pitch(W×H) 0.085×0.255 mm Pixel Pitch(W×H) 0.255×0.255 mm [99PPI]
Physical Size : Active Viewing 367.2(W)×229.5(H) mm Overall Dim. 389.2(W)×254.5(H) mm
Bezel Opening 370.6(W)×232.9(H) mm Overall Depth 11.5±0.5 mm
Outline Features : Form Shape Flat Rectangle Orientation Landscape type
Aspect Ratio(W:H) 16:10 Shape Style Normal bezel
Fixation : Side mounting holes (4-M3) on left, right bezel
Other Detail : Mass 1.36/1.43Kgs (Typ./Max.) Surface Antiglare (Haze 12%), Hard coating (3H)



LG Display LM171WX3-TLC2 Interface Details

Signal Electrical : Input Current 575/878mA (Typ./Max.) Input Voltage 5.0V (Typ.)
Consumption 2.88/3.3W (Typ./Max.) Signal Interface LVDS (2 ch, 8-bit)
Interface Features : Position - Physical Type Connector
Signal Interface : Brand Model Amount Pin Pitch Pin Amount Pin Assignment
UJU IS100-L30O-C23 1 pcs 1.0 mm 30 pins LVDS-30P2C8B-160C



LG Display LM171WX3-TLC2 Lightting Details

Lamp Features: Lamp Shape Straight Lamp Type CCFL Position Edge light type (Top and Bottom)
Exchange - Amount 2 pcs Life 40K(Min.) (Hours)
Lamp Electrical : Input Current 2.5/8.0/9.0mA (Min./Typ./Max.) Input Voltage 615/645/815V (Min./Typ./Max.)
Frequency 40/60/70KHz (Min./Typ./Max.) Turn-on Voltage 1000/1250V (Max.)(Ta=+25/0℃)
Consumption 10.32/11.35W (Typ./Max.)
Interface Features : Position - Physical Type Connector
Interface Detail : Brand Model Amount Pin Pitch Pin Amount Pin Assignment
JST BDBR-03(4.0)V-1S 2 pcs 4.0 mm 3 pins BLL-3PINS-HNL
Backlight Driver : No



LG Display LM171WX3-TLC2 Packing Details

Package Box : Amount Size (L×W×H) Weight
12 pcs / box 359×330×458 mm -



FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.

LM171WX3-TLC2 LG Display 17.1" 1440(RGB)×900 250 cd/m² INDUSTRIAL LCD DISPLAY


Product Tags:

WLED TTL Industrial Lcd Display



CCFL CSTN LCD Panel



VGA Lcd Video Panel


Buy cheap LM171WX3-TLC2 LG Display 17.1" 1440(RGB)×900 250 cd/m² INDUSTRIAL LCD DISPLAY product

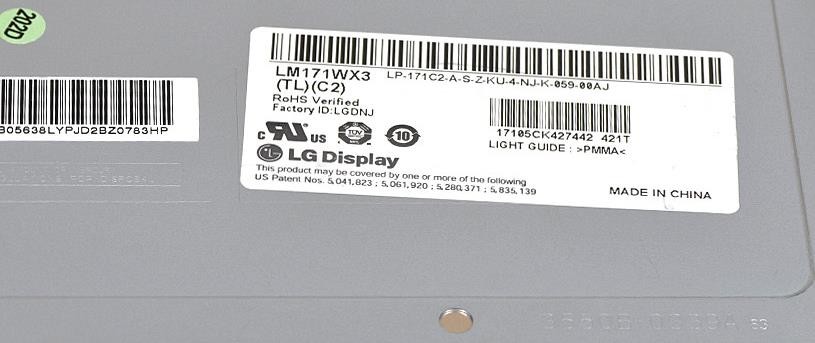

LM171WX3-TLC2 LG Display 17.1" 1440(RGB)×900 250 cd/m² INDUSTRIAL LCD DISPLAY Images
