LD470DUN-TFC1 LG Display 47" 1920(RGB)×1080 450 cd/m² INDUSTRIAL LCD DISPLAY

Name: LD470DUNTFC1 LG Display 47quot 1920RGB1080 450 cdm INDUSTRIAL LCD DISPLAY
Brand: LG Display
Price: 1 USD

Buy cheap LD470DUN-TFC1 LG Display 47" 1920(RGB)×1080 450 cd/m² INDUSTRIAL LCD DISPLAY product

Brand Name : LG Display

Model Number : LD470DUN-TFC1

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Supply Ability : 100PCS

Delivery Time : 1-2 DAYS

Packaging Details : STANDARD PACKING

MODEL NUMBER : LD470DUN-TFC1

BRAND : LG Display

SIZE : 47INCH

BRIGHTNESS : 450CD/M2

Lamp Type : WLED

RESOLUTION : 1920(RGB)×1080, FHD, 46PPI

VIEWING ANGLEG : 89/89/89/89 (Typ.)(CR≥10)

TEMPERATURE RANGE : Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

Contact Now

LG Display LD470DUN-TFC1 Application Features

Basic Information :	Brand Name	Model Name	Type	Model Alias

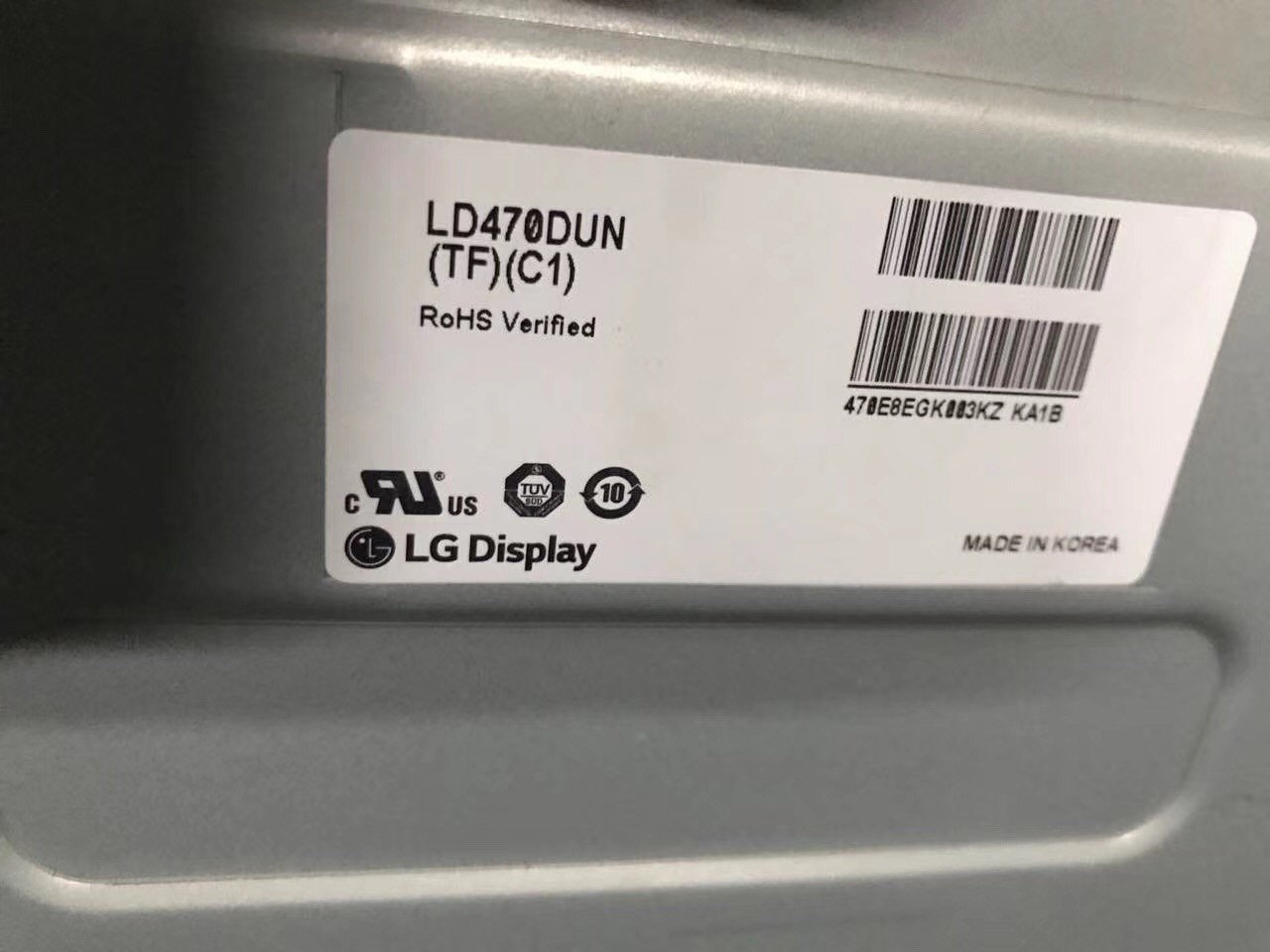

Basic Information :		LD470DUN-TFC1	a-Si TFT-LCD , LCM	LD470DUN (TF)(C1)
Maximum Ratings :	RoHS	Operating Temperature	Storage Temperature	Vibration Level
Maximum Ratings :		0 ~ 50 °C	-20 ~ 60 °C

LG Display LD470DUN-TFC1 Mechanical Features

Screen Size :	47"
Pixel Features :	Pixel Number	Pixel Format	Dot Pitch (H×V)	Pixel Pitch (H×V)
Pixel Features :	1920(RGB)×1080, FHD	RGB Vertical Stripe	0.1805×0.5415 mm	0.5415×0.5415 mm [46PPI]
Mechanical Size :	Display Area (H×V)	Bezel Opening (H×V)	Overall Dimension (H×V)	Overall Depth
Mechanical Size :	1039.68×584.82 mm	1039.98×585.12 mm	1044.9×590 mm	36.8/52.8 (Typ./Max.) mm
Outline Features :	Form Shape	Aspect Ratio (H:V)	Orientation	Videowall Seam
Outline Features :	Flat Rectangle	16:9	Landscape / Portrait	5.2 mm (Active to Active)
Other Spec :	Mass	Panel Cover	Surface Treatment
Other Spec :	12.2/12.81Kgs (Typ./Max.)	-	Antiglare (Haze 10%), Hard coating (3H)

LG Display LD470DUN-TFC1 Optical Features

Basic Information :	Luminance	Work Mode	Contrast Ratio
	450 cd/m² (Typ.)	S-IPS, Normally Black, Transmissive	1200:1 (Typ.) (Transmissive)
	Good View at	Viewing Angle	Response Time
	Symmetry	89/89/89/89 (Min.)(CR≥10)	12 (Typ.)(G to G) (ms)
Dispaly Color :	Color Temperature:	Support Color	Color Coordinate
Dispaly Color :	9972K	1.06B (8-bit + Dithering)	X:0.279; Y:0.292
1931 Color Gamlt :	NTSC Ratio	sRGB Coverage	Adobe RGB Coverage
	72%	98%	75%
	DCI-P3 Coverage	Rec.2020 Coverage	Remarks
	75%	54%	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
White Uniformity :	1.25/1.43 (Typ./Max.)(9 points)

LG Display LD470DUN-TFC1 Backlight Features

Back-light Features:	Type	Position	Life(Hours)	Amount	Shape	Replacement
Back-light Features:	WLED	Direct light type	50K(Typ.)	-	-	-
Interface Features :	WLED Driver State			Physical Type		Interface Position
Interface Features :	With LED Driver			Connector		-
Interface Detail	Brand Name	Model Name	Amount	Pins	Pin Pitch	Pin Configuration
Interface Detail	YEONHO	20022WR-H14B2	1 pcs	14 pins	2.0 mm
WLED Driver Electrical :	Input Voltage		Input Current			Power Consumption
WLED Driver Electrical :	24.0±1.2V		4.44/5.05A (Typ./Max.)			106.47/121.22W (Typ./Max.)

LG Display LD470DUN-TFC1 Interface Features

Signal Electrical :	Input Voltage		Input Current			Power Consumption
Signal Electrical :	12.0V (Typ.)		0.92/1.19A (Typ./Max.)			10.9/14.17W (Typ./Max.)
Interface Features :	Signal Type			Physical Type		Interface Position
Interface Features :	LVDS (2 ch, 10-bit)			Connector		-
Interface Detail :	Brand Name	Model Name	Amount	Pins	Pin Pitch	Pin Configuration
Interface Detail :	JAE	FI-RE51S-HF	1 pcs	51 pins	0.5 mm

LG Display LD470DUN-TFC1 Packing Features

Package Box :	Amount	Weight	Size (L×W×H)
Package Box :	12 pcs / box	-	1440×1140×840 mm (L×W×H)

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
