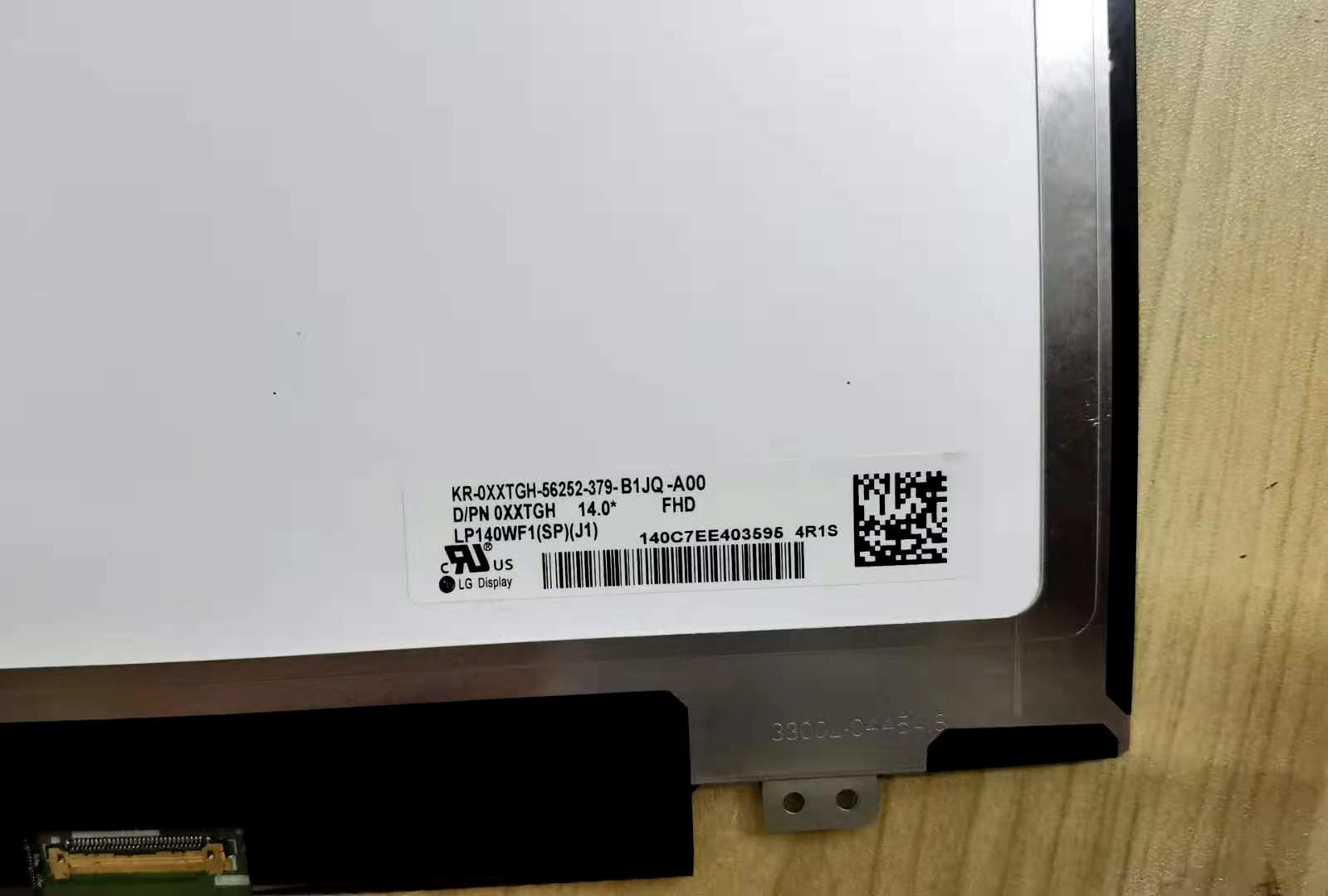

14.0" 157PPI TFT LCD Panel 1920×1080 300cd/M2 ISO9001 LP140WF1-SPJ1

Name: 140quot 157PPI TFT LCD Panel 19201080 300cdM2 ISO9001 LP140WF1SPJ1
Brand: LG Display
Price: 1 USD

Buy cheap 14.0" 157PPI TFT LCD Panel 1920×1080 300cd/M2 ISO9001 LP140WF1-SPJ1 product

Brand Name : LG Display

Model Number : LP140WF1-SPJ1

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Supply Ability : 120PCS

Delivery Time : 1-2 DAYS

Packaging Details : STANDARD PACKING

MODEL NUMBER : LP140WF1-SPJ1

BRAND : LG Display

SIZE : 14.0 inch

BRIGHTNESS : 300CD/M2

Lamp Type : WLED

RESOLUTION : 1920(RGB)×1080 (FHD) 157PPI

VIEWING ANGLEG : 80/80/80/80 (Min.)(CR≥10

TEMPERATURE RANGE : Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

Contact Now

LG Display LP140WF1-SPJ1 Application Features

Basic Information :	Brand Name	Model Name	Type	Model Alias
Basic Information :		LP140WF1-SPJ1	a-Si TFT-LCD , LCM	LP140WF1 (SP)(J1), LGD0406
Maximum Ratings :	RoHS	Operating Temperature	Storage Temperature	Vibration Level
Maximum Ratings :		0 ~ 50 °C	-20 ~ 60 °C

LG Display LP140WF1-SPJ1 Mechanical Features

Screen Size :	14.0"
Pixel Features :	Pixel Number	Pixel Format	Dot Pitch (H×V)	Pixel Pitch (H×V)
Pixel Features :	1920(RGB)×1080, FHD	RGB Vertical Stripe	0.0537×0.1611 mm	0.1611×0.1611 mm [157PPI]
Mechanical Size :	Display Area (H×V)	Bezel Opening (H×V)	Overall Dimension (H×V)	Overall Depth
Mechanical Size :	309.31×173.99 mm	312.5×177.1 mm	320.4×205.1 mm	2.8/3.0 (Typ./Max.) mm
Outline Features :	Form Shape	Aspect Ratio (H:V)	Orientation	Shape Style
Outline Features :	Flat Rectangle	16:9	Landscape type	Slim (PCBA Flat, T≤3.2mm)
Other Spec :	Mass	Panel Cover	Surface Treatment
Other Spec :	290/300g (Typ./Max.)	-	Glare (Haze 0%)
Holes & Brackets :	Face mounting holes (8 pcs) on up, down slugs

LG Display LP140WF1-SPJ1 Optical Features

Basic Information :	Luminance	Work Mode	Contrast Ratio
	300 cd/m² (Typ.)	AH-IPS, Normally Black, Transmissive	700:1 (Typ.) (Transmissive)
	Good View at	Viewing Angle	Response Time
	Symmetry	80/80/80/80 (Min.)(CR≥10)	35 (Typ.)(Tr+Td) (ms)
Dispaly Color :	Color Temperature:	Support Color	Color Coordinate
Dispaly Color :	6485K	262K (6-bit)	X:0.313; Y:0.329
1931 Color Gamlt :	NTSC Ratio	sRGB Coverage	Adobe RGB Coverage
	72%	91%	70%
	DCI-P3 Coverage	Rec.2020 Coverage	Remarks
	74%	54%	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
White Uniformity :	1.40/1.60 (Typ./Max.)(13 points)

LG Display LP140WF1-SPJ1 Backlight Features

Back-light Features:	Type	Position	Life(Hours)	Amount	Shape	Replacement
Back-light Features:	WLED	Edge light type	15K(Min.)	-	-	-
Interface Features :	WLED Driver State			Physical Type		Interface Position
Interface Features :	With LED Driver			Included in panel signal interface		-
WLED Driver Electrical :	Input Voltage		Input Current			Power Consumption
WLED Driver Electrical :	7.0/12.0/21.0V (Min./Typ./Max.)		335/345mA (Typ./Max.)			4.0/4.1W (Typ./Max.)

LG Display LP140WF1-SPJ1 Interface Features

Signal Electrical :	Input Voltage		Input Current			Power Consumption
Signal Electrical :	3.3V (Typ.)		320/365mA (Typ./Max.)			1.0/1.2W (Typ./Max.))
Interface Features :	Signal Type			Physical Type		Interface Position
Interface Features :	eDP (2 Lanes)			Connector
Interface Detail :	Brand Name	Model Name	Amount	Pins	Pin Pitch	Pin Configuration
Interface Detail :	HRS	KN38-30S-0.5H	1 pcs	30 pins	0.5 mm	EDP-30P2L-020A

LG Display LP140WF1-SPJ1 Packing Features

Package Box :	Amount	Weight	Size (L×W×H)
Package Box :	30 pcs / box	-	468×355×270 mm (L×W×H)

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
