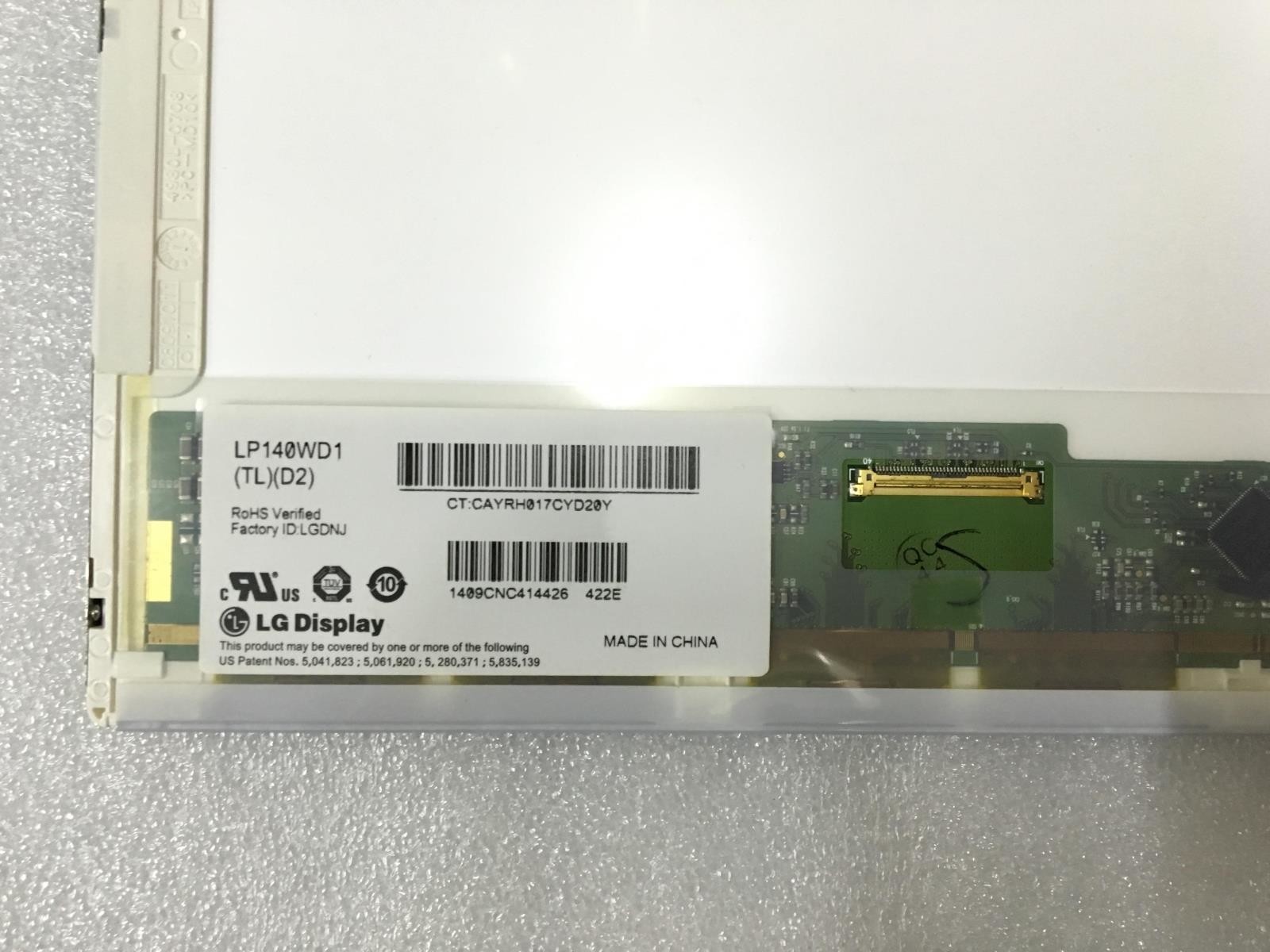

LP140WD1-TLD2 14.0" 1600x900 Industrial Lcd Panel 200cd/m2 89/89/89/89 (Typ.)(CR≥10)

Name: LP140WD1TLD2 140quot 1600x900 Industrial Lcd Panel 200cdm2 89898989 TypCR10
Brand: LG Display
Price: 1 USD

Buy cheap LP140WD1-TLD2 14.0" 1600x900 Industrial Lcd Panel 200cd/m2 89/89/89/89 (Typ.)(CR≥10) product

Brand Name : LG Display

Model Number : LP140WD1-TLD2

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Supply Ability : 120PCS

Delivery Time : 1-2 DAYS

Packaging Details : STANDARD PACKING

MODEL NUMBER : LP140WD1-TLD2

BRAND : LG Display

SIZE : 14.0 inch

BRIGHTNESS : 200CD/M2

Lamp Type : WLED

RESOLUTION : 1600(RGB)×900 [HD+] 131PPI

VIEWING ANGLEG : 40/40/10/30 (Typ.)(CR≥10

TEMPERATURE RANGE : Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

Contact Now

LG Display LP140WD1-TLD2 Application Details

Basic Information :	Brand LP140WD1-TLD2Model Type a-Si TFT-LCD , LCM Used For 14.0 inchScreen Size Alias LP140WD1 (TL)(D2), LGD0254
Environment :	Storage Temp. -20 ~ 60 °C Operating Temp. 0 ~ 50 °C

LG Display LP140WD1-TLD2 Mechanical Details

Pixel Features :	Resolution 1600(RGB)×900, HD+ Dot Pitch(mm) 0.0645×0.1935 (H×V) Pixel Format RGB Vertical Stripe Pixel Pitch(mm) 0.1935×0.1935 (H×V) [131PPI]
Mechanical Size :	Active Area(mm) 309.6(H) × 174.15(V) Bezel Area(mm) 316.0(H) × 177.4(V) Outline Dim.(mm) 323.5(H) × 192(V) Depth(mm) 4.9/5.2 (Typ./Max.)
Outline Features :	Form Style Flat Rectangle Shape Style Wedge (PCBA Bent, T≥5.2mm) Aspect Ratio 16:9 (H:V) Orientation Landscape type
Mounting :	Side mounting holes (6-M2) on left, right bezel
Other Spec :	Weight 375g (Max.) Treatment Antiglare

LG Display LP140WD1-TLD2 Optical Details

Basic Information :	Luminance(cd/m²) 200 (Typ.) Contrast Ratio 300:1 (Min.) (Transmissive) Viewing Angle 40/40/10/30 (Typ.)(CR≥10) Display Mode TN, Normally White, Transmissive Best View on 6 o'clock Response(ms) 8 (Typ.)(Tr+Td)
Color Performance :	White Coordinate Wx:0.313; Wy:0.329 Display Colors 262K (6-bit) Color Temperature 6485K White Uniformity 1.60 (Max.)(13 points)
1931 Color Gamlt :	NTSC Ratio 59% sRGB 83% coverage Adobe RGB 62% coverage DCI-P3 61% coverage Rec.2020 44% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

LG Display LP140WD1-TLD2 Interface Detail

Signal Electrical :	Voltage Supply 3.3V (Typ.) Current Supply 440±70mA Consumption 1.45W (Typ.)
Signal Type :	LVDS (2 ch, 6-bit) Logic Voltage -
Interface Features :	Position ConnectorType
Interface Detail :	Brand Model Pitch Pins Quantity Pin Configuration I-PEX 20455-040E-02 0.5 mm 40 pins 1 pcs LVDS-40P2C6B-010A

LG Display LP140WD1-TLD2 Backlight Details

Backlight Features :	Type WLED Quantity - Position Edge light type Replacement - Shape - Life Time 12K(Min.) (Hours)
Interface Features :	Position - Type Included in panel signal interface
Backlight Driver :	With LED Driver
Driver Electrical :	Voltage Supply 7.0/12.0/20.0V (Min./Typ./Max.) Current Supply 297/315mA (Typ./Max.) Consumption 3.65/3.78W (Typ./Max.)

LG Display LP140WD1-TLD2 Packing Details

Package Box :	Quantity	Weight	Box Size
Package Box :	30 pcs / box	-	490×390×256 mm (L×W×H)

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
