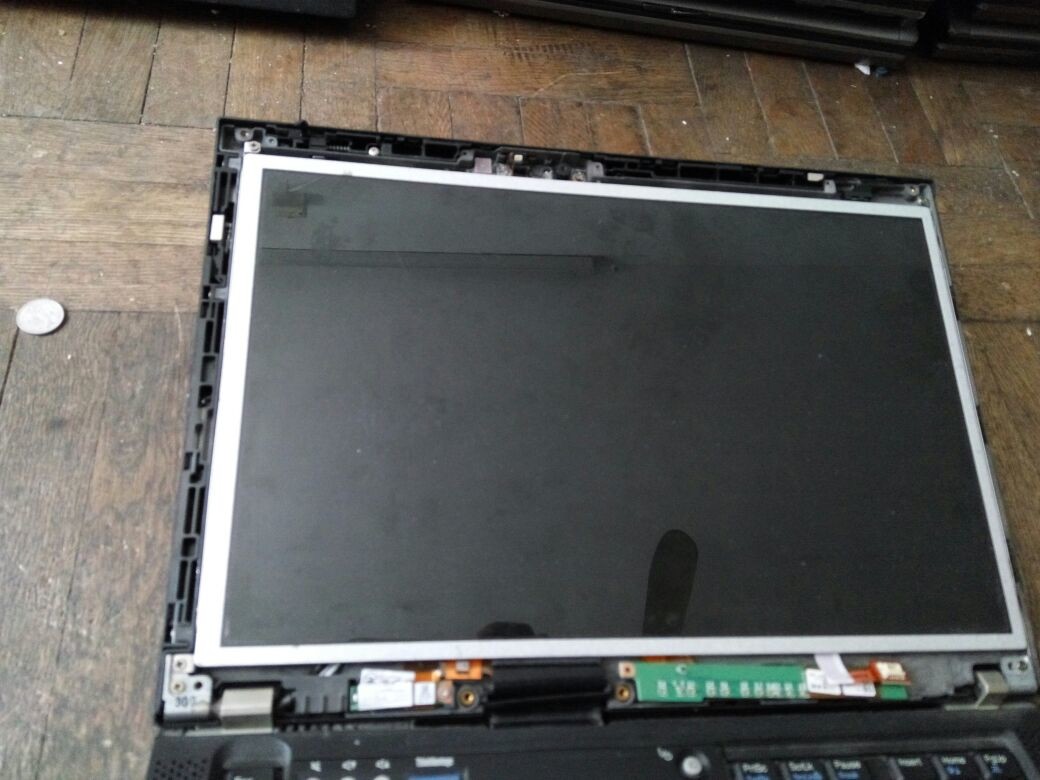

14.1" 1280x800 220cd/M2 Lcd Video Panel 107PPI LP141WX5-TLP2 40/40/10/30 (Min.)(CR≥10)

Name: 141quot 1280x800 220cdM2 Lcd Video Panel 107PPI LP141WX5TLP2 40401030 MinCR10
Brand: LG Display
Price: 1 USD

Buy cheap 14.1" 1280x800 220cd/M2 Lcd Video Panel 107PPI LP141WX5-TLP2 40/40/10/30 (Min.)(CR≥10) product

Brand Name : LG Display

Model Number : LP141WX5-TLP2

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Supply Ability : 120PCS

Delivery Time : 1-2 DAYS

Packaging Details : STANDARD PACKING

MODEL NUMBER : LP141WX5-TLP2

BRAND : LG Display

SIZE : 14.1INCH

BRIGHTNESS : 220CD/M2

Lamp Type : WLED

RESOLUTION : 1280(RGB)×800 (WXGA) 107PPI

VIEWING ANGLEG : 40/40/10/30 (Min.)(CR≥10)

TEMPERATURE RANGE : Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

Contact Now

LG Display LP141WX5-TLP2 Application Details

Basic Information :	Brand		Model	LP141WX5-TLP2
	Type	LCM a-Si TFT-LCD	Used For
	Screen Size	14.1"	Alias	LP141WX5 (TL)(P2), LEN4035
Environment :	Storage Temp.	-20 ~~ 60 °C	Operating Temp.	0 ~~ 50 °C

LG Display LP141WX5-TLP2 Mechanical Details

Pixel Features :	Resolution	1280(RGB)×800, WXGA	Dot Pitch(mm)	0.0791×0.2373 (H×V)
Pixel Features :	Pixel Format	RGB Vertical Stripe	Pixel Pitch(mm)	0.2373×0.2373 (H×V) [107PPI]
Mechanical Size :	Active Area(mm)	303.74(H) × 189.84(V)	Bezel Area(mm)	310.3(H) × 194.2(V)
Mechanical Size :	Outline Dim.(mm)	319.5(H) × 205.5(V)	Depth(mm)	5.5 (Max.)
Outline Features :	Form Style	Flat Rectangle	Outline Shape	Wedge (PCBA Bent, T≥5.2mm)
Outline Features :	Aspect Ratio	16:10 (H:V)	Orientation	Landscape type
Mounting :	Side mounting holes (8-M2) on left, right bezel
Other Spec :	Weight	400g (Max.)	Treatment	Antiglare

LG Display LP141WX5-TLP2 Optical Details

Basic Information :	Luminance(cd/m²)	220 (Typ.)	Contrast Ratio	300:1 (Typ.) (Transmissive)
	Viewing Angle	40/40/10/30 (Min.)(CR≥10)	Display Mode	TN, Normally White, Transmissive
	Best View on	6 o'clock	Response(ms)	16 (Typ.)(Tr+Td)
Color Performance :	White Coordinate	X:0.313; Y:0.329	Display Colors	262K (6-bit)
Color Performance :	Color Temperature	6485K	White Uniformity	1.43/1.67 (Typ./Max.)(9 points)
1931 Color Gamlt :	NTSC Ratio	42%	sRGB	58% coverage
	Adobe RGB	44% coverage	DCI-P3	43% coverage
	Rec.2020	31% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

LG Display LP141WX5-TLP2 Interface Details

Signal Electrical :	Voltage Supply	3.3V (Typ.)		Current Supply	360±55mA
Signal Electrical :	Consumption	1.2/1.4W (Typ./Max.)
Signal Type :	LVDS (1 ch, 6-bit)			Signal Voltage	-
Interface Features :	Position			Type	Connector
Interface Detail :	Brand	Model	Quantity	Pins	Pitch	Pin Configuration
Interface Detail :	LS Mtron	GT101-30S-HR11	1 pcs	30 pins	1.0 mm	LVDS-30P1C6B-060B

LG Display LP141WX5-TLP2 Backlight Details

Backlight Features:	Shape	-	Type	WLED	Position	Edge light type
Backlight Features:	Replacement	-	Quantity	-	Life Time	15K(Min.) (Hours)
Interface Features :	Position	-		Type	Connector
Interface Detail :	Brand	Model	Quantity	Pins	Pitch	Pin Configuration
Interface Detail :	AMP	1-179397-2	1 pcs	12 pins	0.8 mm	BLE-12PINS-ACACACNCNCNC
Backlight Driver :	No

LG Display LP141WX5-TLP2 Packing Details

Package Box :	Quantity	Weight	Box Size
Package Box :	30 pcs / box	-	484×372×288 mm (L×W×H)
