81PPI 27.0" 1920x1080 300cd/m2 Square LCD Panel LM270WF5-SLB1 89/89/89/89 (Typ.)(CR≥10)

Name: 81PPI 270quot 1920x1080 300cdm2 Square LCD Panel LM270WF5SLB1 89898989 TypCR10
Brand: LG Display
Price: 1 USD

Buy cheap 81PPI 27.0" 1920x1080 300cd/m2 Square LCD Panel LM270WF5-SLB1 89/89/89/89 (Typ.)(CR≥10) product

Brand Name : LG Display

Model Number : LM270WF5-SLB1

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Supply Ability : 200PCS

Delivery Time : 1-2 DAYS

Packaging Details : STANDARD PACKING

MODEL NUMBER : LM270WF5-SLB1

BRAND : LG Display

SIZE : 27.0INCH

BRIGHTNESS : 300CD/M2

Lamp Type : WLED

RESOLUTION : 1920(RGB)×1080, FHD, 81PPI

VIEWING ANGLEG : 89/89/89/89 (Typ.)(CR≥10)

TEMPERATURE RANGE : Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

Contact Now

LG Display LM270WF5-SLB1 Application Features

Basic Information :	Brand	Model	Type	Model Alias
Basic Information :		LM270WF5-SLB1	a-Si TFT-LCD , LCM	LM270WF5 (SL)(B1)
Reliability :	RoHS	Operating Temperature	Storage Temperature	Vibration Resistance
Reliability :		0 ~ 50 °C	-20 ~ 60 °C

LG Display LM270WF5-SLB1 Mechanical Features

Panel Size :	27.0 inch
Pixel Features :	Resolution	Pixel Arrangement	Dot Pitch (W×H)	Pixel Pitch (W×H)
Pixel Features :	1920(RGB)×1080, FHD	RGB Vertical Stripe	0.1038×0.3114 mm	0.3114×0.3114 mm [81PPI]
Mechanical Size :	Active Area (W×H)	Bezel Area (W×H)	Outline Dimension (W×H)	Outline Depth
Mechanical Size :	597.888×336.312 mm	602.0×340.4 mm	630×368.2 mm	8.7/12.2 (Typ./Max.) mm
Outline Features :	Form Style	Aspect Ratio	Orientation	Shape Style
Outline Features :	Flat Rectangle	16:9 (W : H)	Landscape type	Normal bezel
Fixation :	Side mounting holes (4-M3) on left, right bezel
Other Features :	Panel Cover	Weight	Surface
Other Features :	-	3.22/3.38Kgs (Typ./Max.)	Glare (Haze 0%), Hard coating (3H)

LG Display LM270WF5-SLB1 Optical Features

Basic Information :	Brightness	Operating Mode	Contrast Ratio
	300 cd/m² (Typ.)	IPS, Normally Black, Transmissive	1000:1 (Typ.) (Transmissive)
	Viewing Angle(L/R/U/D)	Viewing Direction	Response Speed
	89/89/89/89 (Typ.)(CR≥10)	Symmetry	8 (Typ.)(G to G) (ms)
Dispaly Color :	Color Temperature	Color Amount	White color Chromaticity
Dispaly Color :	6485K	16.7M (6-bit + Hi-FRC)	X:0.313; Y:0.329
1931 Color Gamlt :	NTSC Ratio	sRGB Coverage	Adobe RGB Coverage
	72%	96%	74%
	DCI-P3 Coverage	Rec.2020 Coverage	Remarks
	75%	54%	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Luminance Variation :	1.33 (Max.)(9 points)

LG Display LM270WF5-SLB1 Interface Features

Signal Electrical :	Current Input		Voltage Input			Consumption
Signal Electrical :	765/955mA (Typ./Max.)		5.0V (Typ.)			3.83/4.78W (Typ./Max.)
Interface Features :	Position	Type	Interface
Interface Features :		Connector	LVDS (2 ch, 8-bit)
Signal Interface :	Brand	Model	Amount	Pin Pitch	Pins	Pin Assignment
Signal Interface :	UJU	IS100-L30O-C23	1 pcs	1.0 mm	30 pins	LVDS-30P2C8B-160C

LG Display LM270WF5-SLB1 Backlight Features

Backlight Features:	Type	Position	Shape	Amount	Life(Hours)	Replacement
Backlight Features:	WLED	Edge light type (Right side)	3 strings	14S3P	30K(Min.)	-
WLED Electrical :	Current Input		Voltage Input			Consumption
WLED Electrical :	120/130mA (Typ./Max.)		44.1±2.8V			15.9/16.9W (Typ./Max.)
Interface Features :	Position	Type	WLED Driver
Interface Features :		Connector	No
Interface Detail	Brand	Model	Amount	Pin Pitch	Pins	Pin Assignment
Interface Detail	JST	SM06B-SHJH(HF)	1 pcs	1.0 mm	6 pins	BLE-6PINS-CNAACC

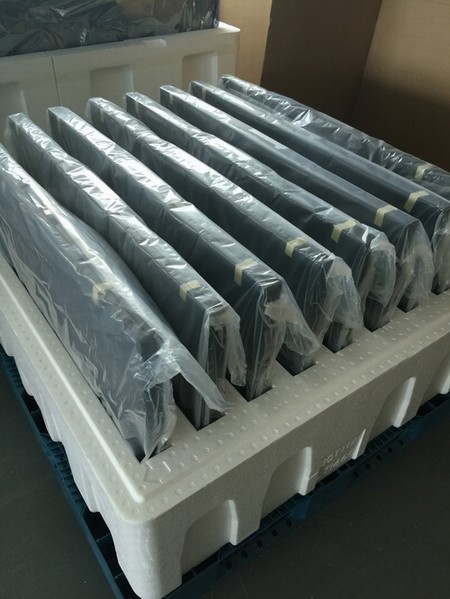

LG Display LM270WF5-SLB1 Packing Features

Package Carton :	Amount	Weight	Carton Size
Package Carton :	10 pcs / box	-	700×355×430 mm (L×W×H)

Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
