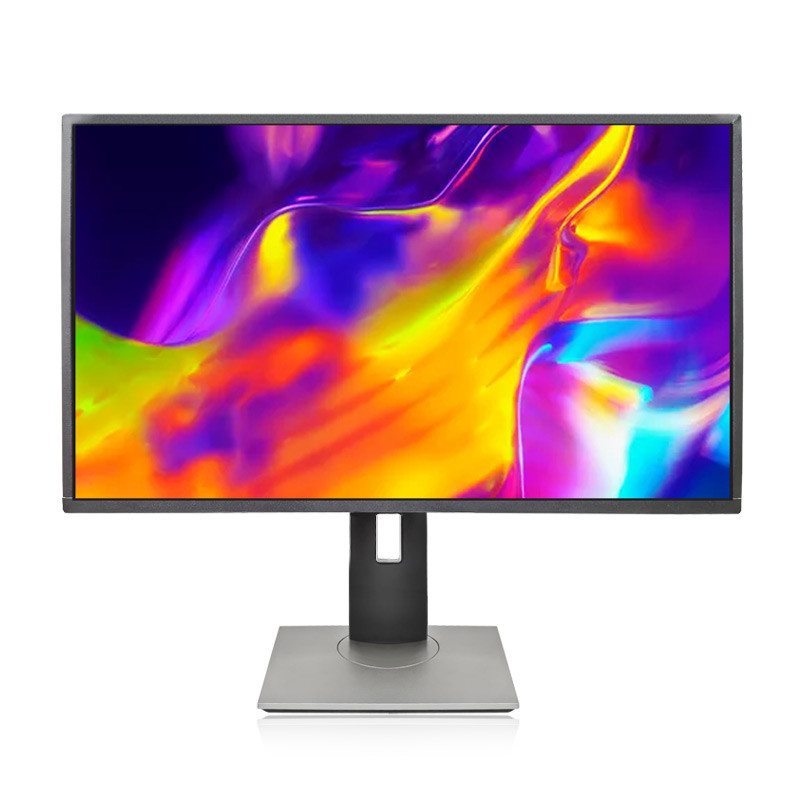

27.0" 3840×2160 1000cd/M2 Lcd Video Module 163PPI LB270WRM-SVA1

  • 1
  • 2
  • 3

Brand Name : LG DisplaLy

Model Number : LB270WRM-SVA1

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Supply Ability : 200PCS

Delivery Time : 1-2 DAYS

Packaging Details : STANDARD PACKING

MODEL NUMBER : LB270WRM-SVA1

BRAND : LG DisplaLy

SIZE : 27.0INCH

BRIGHTNESS : 1000CD/M2

Lamp Type : WLED

RESOLUTION : 3840(RGB)×2160 [UHD] 163PPI

VIEWING ANGLEG : 89/89/89/89 (Typ.)(CR≥10)

TEMPERATURE RANGE : Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

Contact Now

LG Display LB270WRM-SVA1 Application Details

Basic Info : Panel Brand   Panel Model LB270WRM-SVA1
Diagonal Size 27.0" Application





  •
  •
Panel Type LTPS TFT-LCD , LCM Model Alias LB270WRM (SV)(A1)
Reliability : Operating Temp. 0 ~ 50 °C Storage Temp. -20 ~ 60 °C
RoHS State   Vibration Rating 1.0G (9.8 m/s²)



LG Display LB270WRM-SVA1 Mechanical Details

Pixel Features : Pixel Format 3840(RGB)×2160 [UHD] Dot Pitch 0.0518×0.1554 mm (H×V)
Configuration RGB Vertical Stripe Pixel Pitch 0.1554×0.1554 mm (H×V) [163PPI]
Mechanical Size : Display Area 596.74×335.66 mm (H×V) Bezel Area 601.1×340.0 mm (H×V)
Outline Dim. 629.1×369 mm (H×V) Outline Depth 14.0/21.0 (Typ./Max.) mm
Outline Features : Form Factor Flat Rectangle Orientation Landscape type
Aspect Ratio 16:9 (H:V) Shape Style Normal bezel
Holes & Brackets : Rear mounting holes (11-M3)
Other Features : Weight - Surface Hard coating



LG Display LB270WRM-SVA1 Optical Details

Basic Information : Brightness 1000 cd/m² (Typ.) Contrast Ratio 1300:1 (Typ.) (Transmissive)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10) Optical Mode IPS, Normally Black, Transmissive
Viewing Direction Symmetry Response Time 14 (Typ.)(G to G) (ms)
Color Performance : Chromaticity Wx:0.313; Wy:0.329 Color Numbers 1.07B (10-bit)
Color Temperature 6485K White Uniformity 1.33 (Max.)(9 points)
1931 Color Gamlt : NTSC Ratio 82% sRGB 100% coverage
Adobe RGB 81% coverage DCI-P3 85% coverage
Rec.2020 61% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Dispaly Performance : Outdoor Visibility Sunlight Readable Transmittance -



LG Display LB270WRM-SVA1 Backlight Details

Back-light Features: Lamp Shape - Lamp Type WLED Life Time 30K(Min.) (Hours)
Replacement - Amount - Position Edge light type (Top and Bottom)
Lamp Electrical : Voltage Input 44.8V (Typ.) Current Input 85mA (Typ.)
Consumption 60.9W (Typ.)
Interface Features : Type Connector Position   Lamp Driver No
Interface Detail : Brand Model Pin Pitch Pins Amount Configuration
YEONHO 10035WS-H10D 1.0 mm 10 pins 2 pcs BLE-10PINS-CCCCAACCCC



LG Display LB270WRM-SVA1 Interface Details

Signal Systerm : V-by-One 8 lane Logic Voltage -
Signal Electrical : Voltage Input 12.0V (Typ.) Current Input 1.1/1.38A (Typ./Max.)
Consumption 13.2/16.56W (Typ./Max.)
Interface Features : Type Connector Position -
Connector Detail : Brand Model Pin Pitch Pins Amount Configuration
LS Mtron GT05S-51S-H38 0.5 mm 51 pins 1 pcs



LG Display LB270WRM-SVA1 Carton Details

Package Carton : Amount Net Weight Carton Size (L×W×H)
10 pcs / box - 814×543×509 mm



Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
