43in 51PPI Square Tft Display 1920×1080 300cd/M2 LC430EUE-FHM3 89/89/89/89 (Typ.)(CR≥10)

  • 1
  • 2
  • 3

Brand Name : LG DISPLAY

Model Number : LC430EUE-FHM3

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Supply Ability : 350PCS

Delivery Time : 1-2 DAYS

Packaging Details : STANDARD PACKING

MODEL NUMBER : LC430EUE-FHM3

BRAND : LG DISPLAY

SIZE : 43 inch

BRIGHTNESS : 300CD/M2

Lamp Type : WLED

RESOLUTION : 1920(RGB)×1080 (FHD) 51PPI

VIEWING ANGLEG : 89/89/89/89 (Typ.)(CR≥10)

TEMPERATURE RANGE : Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

Contact Now

LG Display LC430EUE-FHM3 Application Details

Basic Information : Brand   Model LC430EUE-FHM3
Type LCM a-Si TFT-LCD Used For
Screen Size 43" Alias LC430EUE (FH)(M3)
Environment : Storage Temp. -20 ~~ 60 °C Operating Temp. 0 ~~ 50 °C



LG Display LC430EUE-FHM3 Mechanical Details



Pixel Features : Resolution 1920(RGB)×1080, FHD Dot Pitch(mm) 0.1634×0.4902 (H×V)
Pixel Format RGB Vertical Stripe Pixel Pitch(mm) 0.4902×0.4902 (H×V) [51PPI]
Mechanical Size : Active Area(mm) 941.184(H) × 529.416(V) Bezel Area(mm) 945.8(H) × 533.87(V)
Outline Dim.(mm) 973(H) × 565.8(V) Depth(mm) 28.6 (Typ.)
Outline Features : Form Style Flat Rectangle Outline Shape
Aspect Ratio 16:9 (H:V) Orientation Landscape type
Other Spec : Weight 7.00/7.35Kgs (Typ./Max.) Treatment Antiglare (Haze 1%), Hard coating (3H)



LG Display LC430EUE-FHM3 Interface Details

Signal Electrical : Voltage Supply 12.7V (Typ.) Current Supply 350/450mA (Typ.)
Consumption 4.4/5.8W (Typ./Max.)
Signal Type : LVDS (2 ch, 8-bit) Signal Voltage -
Interface Features : Position   Type Connector
Interface Detail : Brand Model Quantity Pins Pitch Pin Configuration
JAE FI-RXE51S-HF 1 pcs 51 pins 0.5 mm



LG Display LC430EUE-FHM3 Backlight Details

Backlight Features: Shape - Type WLED Position Direct light type
Replacement - Quantity - Life Time 30K(Min.) (Hours)
Lamp Electrical : Voltage Supply 120.5/140.0V (Typ./Max.) Current Supply 180mA (Typ.)
Consumption 43.4/50.4W (Typ./Max.)
Interface Features : Position - Type Connector
Interface Detail : Brand Model Quantity Pins Pitch Pin Configuration
YEONHO SMH200-H07M 1 pcs 7 pins 2.0 mm BLE-7PINS-CNANCNA
Backlight Driver : No

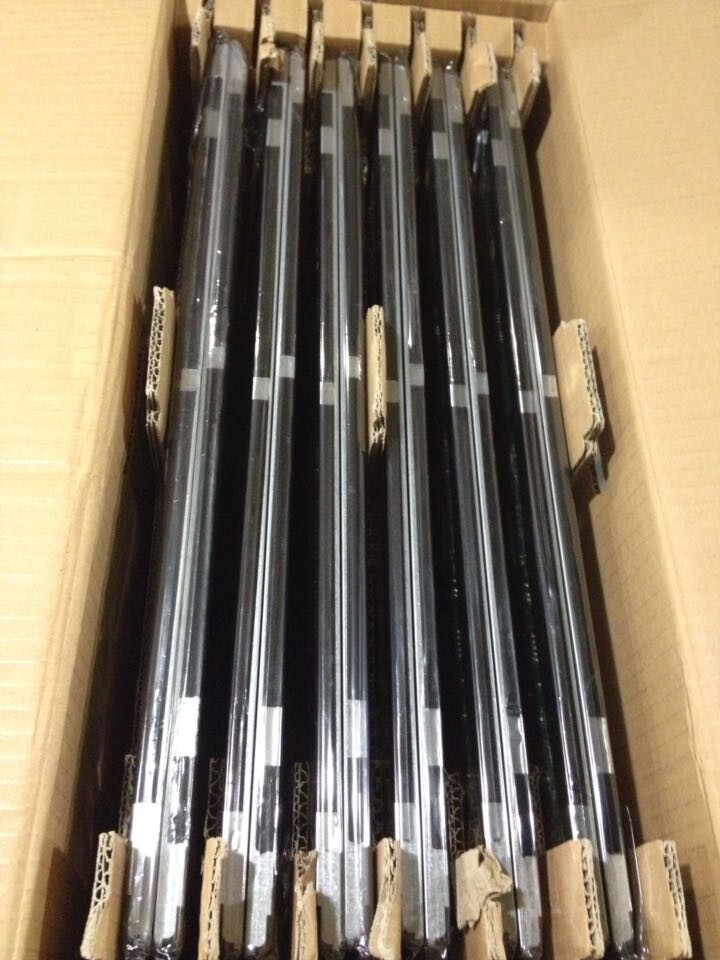

LG Display LC430EUE-FHM3 Packing Details

Package Box : Quantity Weight Box Size
26 pcs / box - 1300×1140×746 mm (L×W×H)






Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
