1920×1080 95PPI 250cd/m2 Industrial Lcd Display 23.0" LM230WF3-SLK1

Name: 19201080 95PPI 250cdm2 Industrial Lcd Display 230quot LM230WF3SLK1
Brand: LG DISPLAY
Price: 1 USD

Buy cheap 1920×1080 95PPI 250cd/m2 Industrial Lcd Display 23.0" LM230WF3-SLK1 product

Brand Name : LG DISPLAY

Model Number : LM230WF3-SLK1

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Supply Ability : 350PCS

Delivery Time : 1-2 DAYS

Packaging Details : STANDARD PACKING

MODEL NUMBER : LM230WF3-SLK1

BRAND : LG DISPLAY

SIZE : 23.0INCH

BRIGHTNESS : 250CD/M2

Lamp Type : WLED

RESOLUTION : 1920(RGB)×1080, FHD, 95PPI

VIEWING ANGLEG : 89/89/89/89 (Typ.)(CR≥10)

TEMPERATURE RANGE : Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

Contact Now

LG Display LM230WF3-SLK1 Application Features

Basic Information :	Manufacturer	Panel Model	Panel Type	Alias

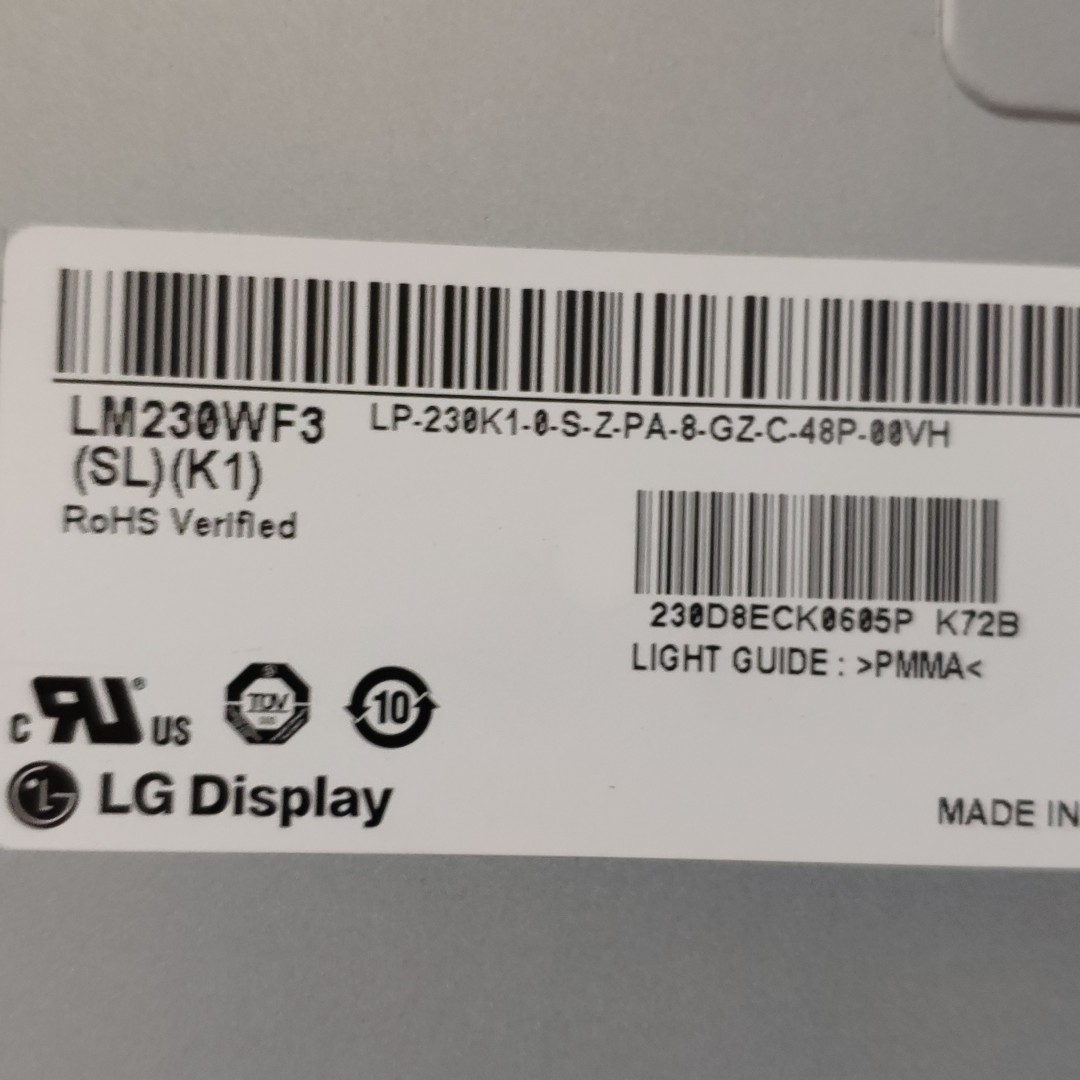

Basic Information :		LM230WF3-SLK1	a-Si TFT-LCD , LCM	LM230WF3 (SL)(K1)
Environment :	RoHS State	Operating Temp.	Storage Temp.	Vibration Level
Environment :		0 ~ 50 °C	-20 ~ 60 °C

LG Display LM230WF3-SLK1 Optical Features

Basic Information :	Luminance (cd/m²)	Viewing Angle (L/R/U/D)	Response Time (ms)
	250 (Typ.)	89/89/89/89 (Typ.)(CR≥10)	14 (Typ.)(G to G)
	Best View on	Display Mode	Contrast Ratio
	Symmetry	IPS, Normally Black, Transmissive	1000 : 1 (Typ.) (Transmissive)
Dispaly Color :	Color Temperature	Display Colors	White Coordinate
Dispaly Color :	6485K	16.7M (6-bit + Hi-FRC)	X:0.313; Y:0.329
1931 Color Gamlt :	NTSC Ratio	sRGB Coverage	Adobe RGB Coverage
	72%	95%	73%
	DCI-P3 Coverage	Rec.2020 Coverage	Remarks
	75%	54%	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
White Variation :	1.33 (Max.)(9 points)

LG Display LM230WF3-SLK1 Mechanical Features

Panel Size :	23.0"
Pixel Features :	Pixel Format	Pixel Configuration	Pixel Pitch (mm)	Dot Pitch (mm)
Pixel Features :	1920(RGB)×1080 [FHD]	RGB Vertical Stripe	0.2652×0.2652 [95PPI]	0.0884×0.2652
Mechanical Size :	Active Area (mm)	Bezel Area (mm)	Outline Dimension (mm)	Outline Depth (mm)
Mechanical Size :	509.184(H) × 286.416(V)	513.8(H) × 291.0(V)	533.2(H) × 312(V)	8.9/11.0 (Typ./Max.) mm
Outline Features :	Form Factor	Orientation	Aspect Ratio	Shape Style
Outline Features :	Flat Rectangle	Landscape type	16:9 (H:V)	Normal bezel
Mounting :	Side mounting holes (4-M3) on left, right bezel
Other Detail :	Weight	Panel Cover	Treatment
Other Detail :	2.19/2.30Kgs (Typ./Max.)	-	Antiglare, Hard coating (3H)

LG Display LM230WF3-SLK1 Backlight Features

Lamp Features:	Type	Position	Quantity	Shape	Life(Hours)	Lamp Exchange
Lamp Features:	WLED	Edge light type (Right side)	17S2P	2 strings	30K(Min.)	-
WLED Electrical :	Voltage Supply		Current Supply			Power
WLED Electrical :	52.7±3.4V		120/125mA (Typ./Max.)			12.6/13.5W (Typ./Max.)
Interface Features :	Position	Backlight Driver				Type
Interface Features :		No				Connector
Interface Detail :	Brand	Model	Pin Pitch	Pin Amount	Quantity	Configuration
Interface Detail :	JST	SM06B-SHJH(HF)	1.0 mm	6 pins	1 pcs	BLE-6PINS-CNAANC

LG Display LM230WF3-SLK1 Interface Features

Panel Driving Electrical :	Voltage Supply		Current Supply			Power
Panel Driving Electrical :	5.0V (Typ.)		790/990mA (Typ./Max.)			3.95/5.0W (Typ./Max.)
Interface Features :	Position	Signal				Type
Interface Features :		LVDS (2 ch, 8-bit)				Connector
Connector Detail :	Brand	Model	Pin Pitch	Pin Amount	Quantity	Configuration
Connector Detail :	UJU	IS100-L30O-C23	1.0 mm	30 pins	1 pcs	LVDS-30P2C8B-160A

LG Display LM230WF3-SLK1 Packing Features

Package Box :	Quantity	Weight	Box Size
Package Box :	12 pcs / box	-	365×315×618 mm (L×W×H)

Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
