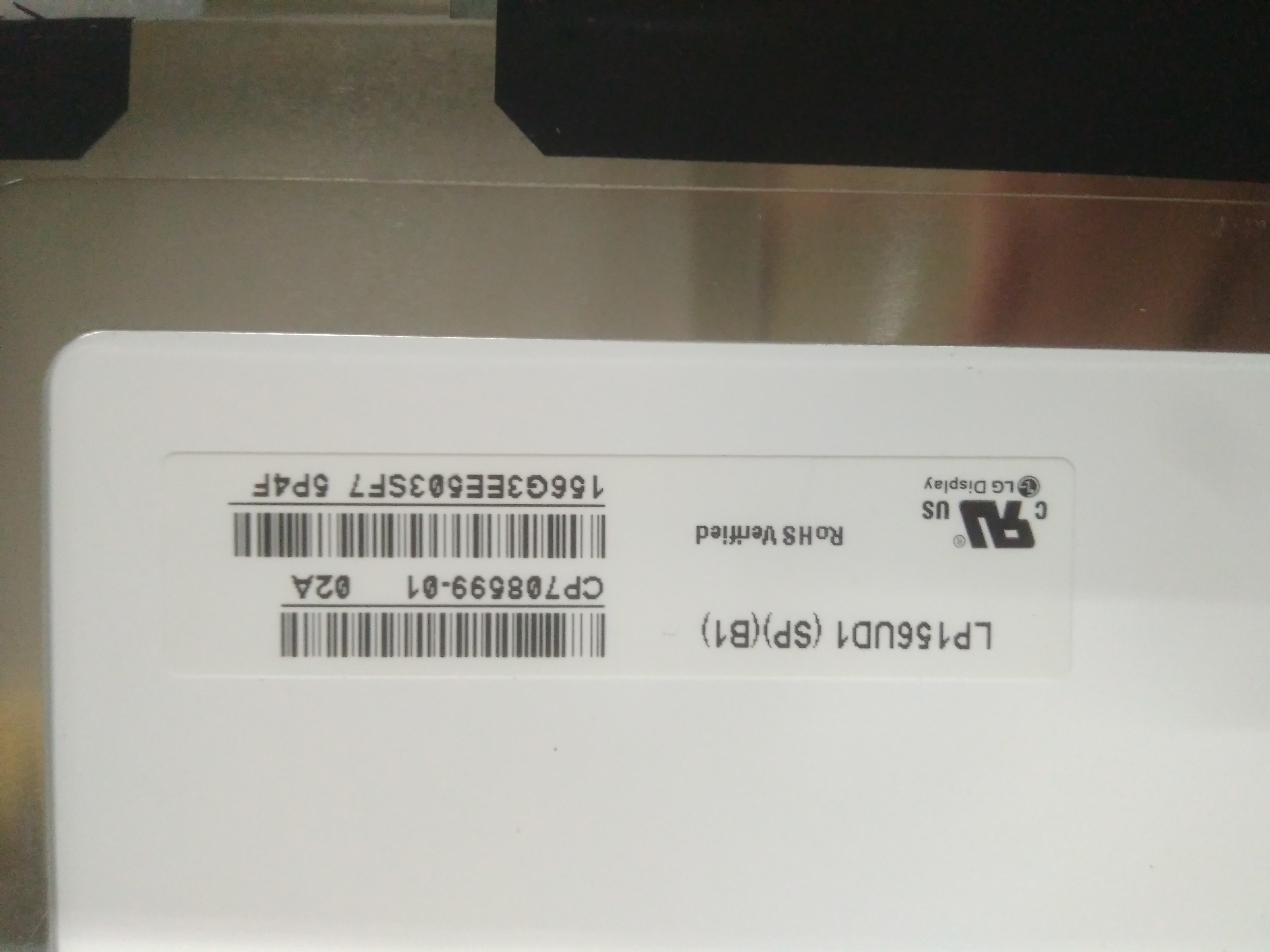

15.6" 231PPI Square Tft Display 3840×2160 300cd/m2 LP156UD1-SPC1

Name: 156quot 231PPI Square Tft Display 38402160 300cdm2 LP156UD1SPC1
Brand: LG DISPLAY
Price: 1 USD

Buy cheap 15.6" 231PPI Square Tft Display 3840×2160 300cd/m2 LP156UD1-SPC1 product

Brand Name : LG DISPLAY

Model Number : LP156UD1-SPC1

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Supply Ability : 350PCS

Delivery Time : 1-2 DAYS

Packaging Details : STANDARD PACKING

MODEL NUMBER : LP156UD1-SPC1

BRAND : LG DISPLAY

SIZE : 15.6 inch

BRIGHTNESS : 300CD/M2

Lamp Type : WLED

RESOLUTION : 3840(WR/GB)×2160, UHD, 231PPI

VIEWING ANGLEG : 85/85/85/85 (Typ.)(CR≥10)

TEMPERATURE RANGE : Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

Contact Now

LG Display LP156UD1-SPC1 Application Features

Basic Information :	Brand Name	Model Name	Type	Model Alias
Basic Information :		LP156UD1-SPC1	a-Si TFT-LCD , LCM	LP156UD1 (SP)(C1), LGD04E0
Maximum Ratings :	RoHS	Operating Temperature	Storage Temperature	Vibration Level
Maximum Ratings :		0 ~ 50 °C	-20 ~ 60 °C

LG Display LP156UD1-SPC1 Mechanical Features

Screen Size :	15.6"
Pixel Features :	Pixel Number	Pixel Format	Dot Pitch (H×V)	Pixel Pitch (H×V)
Pixel Features :	3840(WR/GB)×2160, UHD	RG/BW LCD PenTile	0.04485×0.08970 mm	0.08970×0.08970 mm [231PPI]
Mechanical Size :	Display Area (H×V)	Bezel Opening (H×V)	Overall Dimension (H×V)	Overall Depth
Mechanical Size :	344.448×193.752 mm	347.75×197.05 mm	359.5×233.8 mm	2.45/2.6 (Typ./Max.) mm
Outline Features :	Form Shape	Aspect Ratio (H:V)	Orientation	Shape Style
Outline Features :	Flat Rectangle	16:9	Landscape type	Slim (PCBA Flat, T≤3.2mm)
Other Spec :	Mass	Panel Cover	Surface Treatment
Other Spec :	295g (Typ.)	-	Glare (Haze 0%), Hard coating (3H)
Holes & Brackets :	Face mounting holes (8 pcs) on up, down slugs

LG Display LP156UD1-SPC1 Optical Features

Basic Information :	Luminance	Work Mode	Contrast Ratio
	300 cd/m² (Typ.)	IPS, Normally Black, Transmissive	800:1 (Typ.) (Transmissive)
	Good View at	Viewing Angle	Response Time
	Symmetry	85/85/85/85 (Typ.)(CR≥10)	25 (Typ.)(Tr+Td) (ms)
Dispaly Color :	Color Temperature:	Support Color	Color Coordinate
Dispaly Color :	6485K	16.7M (8-bit)	X:0.313; Y:0.329
1931 Color Gamlt :	NTSC Ratio	sRGB Coverage	Adobe RGB Coverage
	72%	96%	74%
	DCI-P3 Coverage	Rec.2020 Coverage	Remarks
	75%	54%	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
White Uniformity :	1.40/1.60 (Max.)(5/13 points)

LG Display LP156UD1-SPC1 Backlight Features

Back-light Features:	Type	Position	Life(Hours)	Amount	Shape	Replacement
Back-light Features:	WLED	Edge light type	15K(Min.)	-	-	-
Interface Features :	WLED Driver State			Physical Type		Interface Position
Interface Features :	With LED Driver			Included in panel signal interface		-
WLED Driver Electrical :	Input Voltage		Input Current			Power Consumption
WLED Driver Electrical :	6.0/12.0/21.0V (Min./Typ./Max.)		540/570mA (Typ./Max.)			6.5/6.8W (Typ./Max.)

LG Display LP156UD1-SPC1 Interface Features

Signal Electrical :	Input Voltage		Input Current			Power Consumption
Signal Electrical :	3.3V (Typ.)		640/700mA (Typ./Max.)			2.11/2.31W (Typ./Max.)
Interface Features :	Signal Type			Physical Type		Interface Position
Interface Features :	eDP (4 Lanes), HBR2 (5.4G/lane)			Connector
Interface Detail :	Brand Name	Model Name	Amount	Pins	Pin Pitch	Pin Configuration
Interface Detail :	JAE	HD1S040HA2	1 pcs	40 pins	0.5 mm

LG Display LP156UD1-SPC1 Packing Features

Package Box :	Amount	Weight	Size (L×W×H)
Package Box :	20 pcs / box	-	478×365×328 mm (L×W×H)

Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
