92PPI 23.8" Square Tft Display 250cd/m2 LM238WF2-SSG1 89/89/89/89 (Min.)(CR≥10)

Brand Name : LG DISPLAY

Model Number : LM238WF2-SSG1

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Supply Ability : 350PCS

Delivery Time : 1-2 DAYS

Packaging Details : STANDARD PACKING

MODEL NUMBER : LM238WF2-SSG1

BRAND : LG DISPLAY

SIZE : 23.8 INCH

BRIGHTNESS : 250CD/M2

Lamp Type : WLED

RESOLUTION : 1920(RGB)×1080 [FHD] 92PPI

VIEWING ANGLEG : 89/89/89/89 (Typ.)(CR≥10)

TEMPERATURE RANGE : Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

Contact Now

LG Display LM238WF2-SSG1 Application Features

Basic Information : Manufacturer Panel Model Panel Type Alias
  LM238WF2-SSG1 a-Si TFT-LCD , LCM LM238WF2 (SS)(G1)
Environment : RoHS State Operating Temp. Storage Temp. Vibration Level
  0 ~ 50 °C -20 ~ 60 °C



LG Display LM238WF2-SSG1 Optical Features

Basic Information : Luminance (cd/m²) Viewing Angle (L/R/U/D) Response Time (ms)
250 (Typ.) 89/89/89/89 (Typ.)(CR≥10) 14 (Typ.)(G to G)
Best View on Display Mode Contrast Ratio
Symmetry AH-IPS, Normally Black, Transmissive 1000 : 1 (Typ.) (Transmissive)
Dispaly Color : Color Temperature Display Colors White Coordinate
6485K 16.7M (6-bit + Hi-FRC) X:0.313; Y:0.329
1931 Color Gamlt : NTSC Ratio sRGB Coverage Adobe RGB Coverage
73% 97% 75%
DCI-P3 Coverage Rec.2020 Coverage Remarks
76% 54% sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
White Variation : 1.33 (Max.)(9 points)



LG Display LM238WF2-SSG1 Mechanical Features

Panel Size : 23.8"
Pixel Features : Pixel Format Pixel Configuration Pixel Pitch (mm) Dot Pitch (mm)
1920(RGB)×1080 [FHD] RGB Vertical Stripe 0.2745×0.2745 [92PPI] 0.0915×0.2745
Mechanical Size : Active Area (mm) Bezel Area (mm) Outline Dimension (mm) Outline Depth (mm)
527.04(H) × 296.46(V) - 535(H) × 313(V) 8.7/13.2 (Typ./Max.) mm
Outline Features : Form Factor Orientation Aspect Ratio Shape Style
Flat Rectangle Landscape type 16:9 (H:V) 3-side borderless
Mounting : Rear mounting poles (15-M3)
Other Detail : Weight Panel Cover Treatment
1.91/2.01Kgs (Typ./Max.) - Glare (Haze 0%), Hard coating (3H)



LG Display LM238WF2-SSG1 Backlight Features

Lamp Features: Type Position Quantity  Shape Life(Hours) Lamp Exchange
WLED Edge light type (Bottom side) 15S3P 3 strings 30K(Min.) -
WLED Electrical : Voltage Supply Current Supply Power
45.3±3V 85/90mA (Typ./Max.) 11.6/12.2W (Typ./Max.)
Interface Features : Position Backlight Driver Type
  No Connector
Interface Detail : Brand Model Pin Pitch Pin Amount Quantity Configuration
JST BM06B-SHJS-TB(HF) 1.0 mm 6 pins 1 pcs BLE-6PINS-CCAANC



LG Display LM238WF2-SSG1 Interface Features

Panel Driving Electrical : Voltage Supply Current Supply Power
5.0V (Typ.) 410/510mA (Typ./Max.) 2.05/2.55W (Typ./Max.)
Interface Features : Position Signal Type
  LVDS (2 ch, 8-bit) Connector
Connector Detail : Brand Model Pin Pitch Pin Amount Quantity Configuration
UJU IS100-L30O-C23 1.0 mm 30 pins 1 pcs LVDS-30P2C8B-160B



LG Display LM238WF2-SSG1 Packing Features

Package Box : Quantity Weight Box Size
10 pcs / box - 635×370×400 mm (L×W×H)




Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.



92PPI 23.8" Square Tft Display 250cd/m2 LM238WF2-SSG1 89/89/89/89 (Min.)(CR≥10)


Product Tags:

23.8" Square Tft Display



92PPI Square Tft Display



250cd/m2 Tft Lcd Screen


Buy cheap 92PPI 23.8" Square Tft Display 250cd/m2 LM238WF2-SSG1 89/89/89/89 (Min.)(CR≥10) product

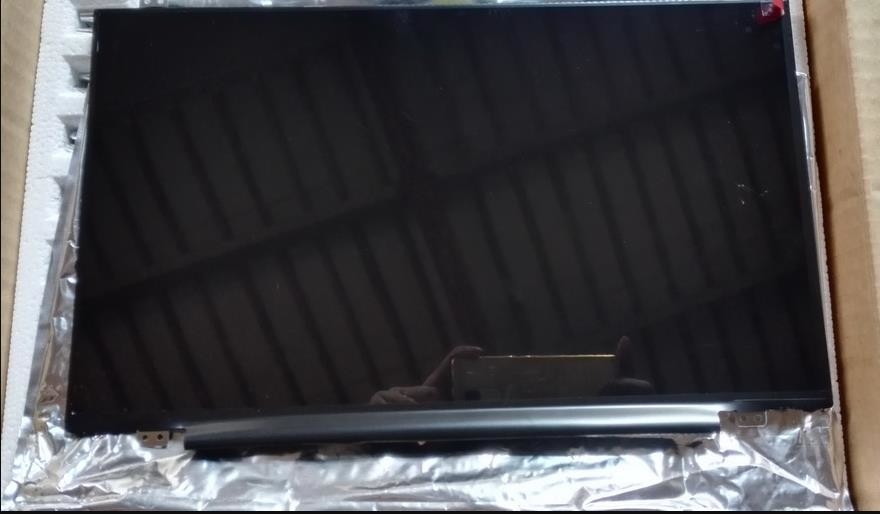

92PPI 23.8" Square Tft Display 250cd/m2 LM238WF2-SSG1 89/89/89/89 (Min.)(CR≥10) Images
