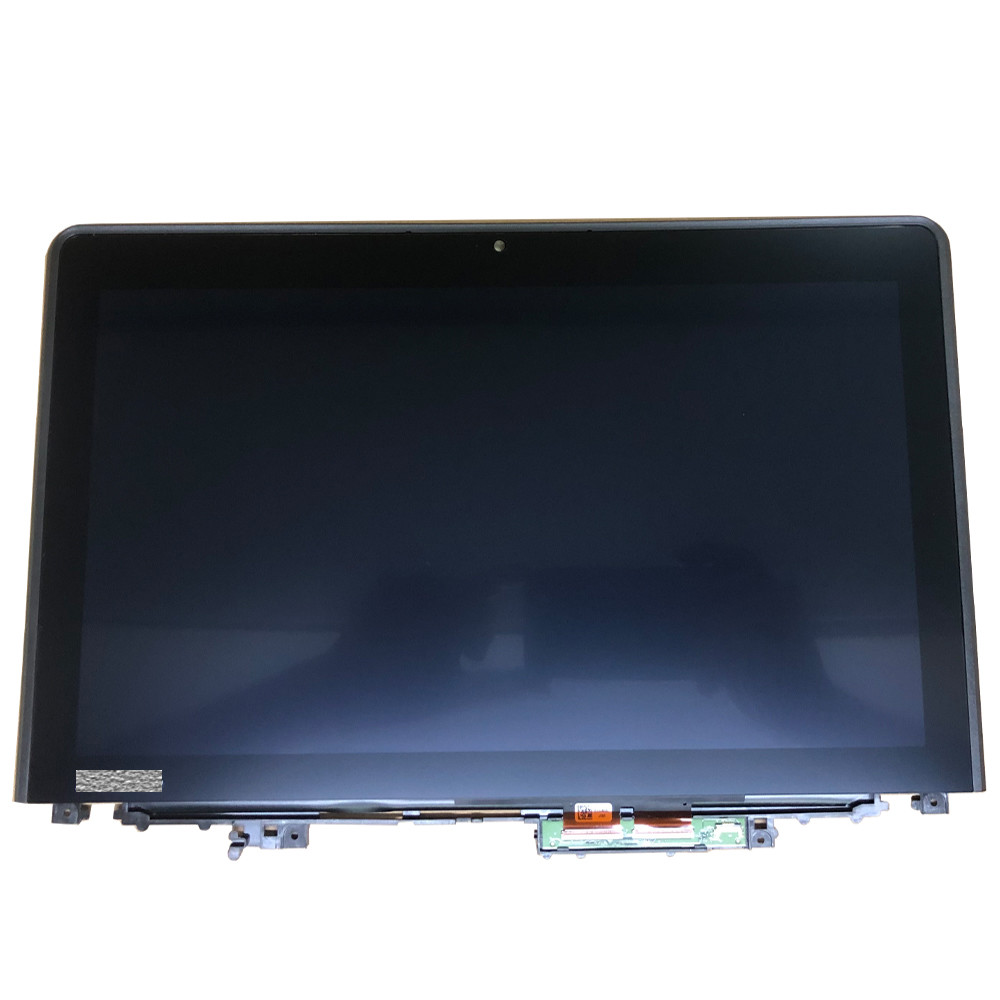

176PPI 12.5" 300cd/m2 TFT LCD Screen 1920×1080 LP125WF4-SPH1 85/85/85/85 (Typ.)(CR≥10)

Name: 176PPI 125quot 300cdm2 TFT LCD Screen 19201080 LP125WF4SPH1 85858585 TypCR10
Brand: LG DISPLAY
Price: 1 USD

Buy cheap 176PPI 12.5" 300cd/m2 TFT LCD Screen 1920×1080 LP125WF4-SPH1 85/85/85/85 (Typ.)(CR≥10) product

Brand Name : LG DISPLAY

Model Number : LP125WF4-SPH1

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Supply Ability : 350PCS

Delivery Time : 1-2 DAYS

Packaging Details : STANDARD PACKING

MODEL NUMBER : LP125WF4-SPH1

BRAND : LG DISPLAY

SIZE : 12.5 inch

BRIGHTNESS : 300CD/M2

Lamp Type : WLED

RESOLUTION : 1920(RGB)×1080 (FHD) 176PPI

VIEWING ANGLEG : 85/85/85/85 (Typ.)(CR≥10)

TEMPERATURE RANGE : Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

Contact Now

LG Display LP125WF4-SPH1 Application Details

Basic Information :	Brand		Model	LP125WF4-SPH1
	Type	LCM a-Si TFT-LCD	Used For
	Screen Size	12.5"	Alias	LP125WF4 (SP)(H1), LGD054C
Environment :	Storage Temp.	-20 ~~ 60 °C	Operating Temp.	0 ~~ 50 °C
Environment :	RoHS		Vibration	1.0G (9.8 m/s²)

LG Display LP125WF4-SPH1 Mechanical Details

Pixel Features :	Resolution	1920(RGB)×1080, FHD	Dot Pitch(mm)	0.048×0.144 (H×V)
Pixel Features :	Pixel Format	RGB Vertical Stripe	Pixel Pitch(mm)	0.144×0.144 (H×V) [176PPI]
Mechanical Size :	Active Area(mm)	276.48(H) × 155.52(V)	Bezel Area(mm)	-
Mechanical Size :	Outline Dim.(mm)	290.5(H) × 180.9(V)	Depth(mm)	2.0/2.3 (Typ./Max.)
Outline Features :	Form Style	Flat Rectangle	Outline Shape	Slim (PCBA Flat, T≤3.2mm)
Outline Features :	Aspect Ratio	16:9 (H:V)	Orientation	Landscape type
Mounting :	Without
Other Spec :	Weight	155g (Max.)	Treatment	Antiglare

LG Display LP125WF4-SPH1 Optical Details

Basic Information :	Luminance(cd/m²)	300 (Typ.)	Contrast Ratio	700:1 (Typ.) (Transmissive)
	Viewing Angle	85/85/85/85 (Typ.)(CR≥10)	Display Mode	IPS, Normally Black, Transmissive
	Best View on	Symmetry	Response(ms)	25 (Typ.)(Tr+Td)
Color Performance :	White Coordinate	X:0.313; Y:0.329	Display Colors	262K (6-bit)
Color Performance :	Color Temperature	6485K	White Uniformity	1.40/1.60 (Max.)(5/13 points)
1931 Color Gamlt :	NTSC Ratio	-	sRGB	68% coverage
	Adobe RGB	50% coverage	DCI-P3	50% coverage
	Rec.2020	36% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

LG Display LP125WF4-SPH1 Interface Details

Signal Electrical :	Voltage Supply	3.3V (Typ.)		Current Supply	242/273mA (Typ./Max.)
Signal Electrical :	Consumption	0.8/0.9W (Typ./Max.)
Signal Type :	eDP (2 Lanes), HBR1 (2.7G/lane)			Signal Voltage	-
Interface Features :	Position			Type	Connector
Interface Detail :	Brand	Model	Quantity	Pins	Pitch	Pin Configuration
Interface Detail :	JAE	HD2S030HA1	1 pcs	30 pins	0.5 mm	EDP-30P2L-020A

LG Display LP125WF4-SPH1 Backlight Details

Backlight Features:	Shape	-	Type	WLED	Position	Edge light type
Backlight Features:	Replacement	-	Quantity	-	Life Time	15K(Min.) (Hours)
Interface Features :	Position	-		Type	Included in panel signal interface
Backlight Driver :	With LED Driver
Driver Electrical :	Voltage Supply	5.0/12.0/21.0V (Min./Typ./Max.)		Current Supply	217/223mA (Typ./Max.)
Driver Electrical :	Consumption	2.6/2.67W (Typ./Max.)

LG Display LP125WF4-SPH1 Packing Details

Package Box :	Quantity	Weight	Box Size
Package Box :	20 pcs / box	-	478×365×244 mm (L×W×H)

Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
