34.0" 3440×1440 109PPI Square Tft Screen 320cd/m2 LM340UW1-SSA3

Name: 340quot 34401440 109PPI Square Tft Screen 320cdm2 LM340UW1SSA3
Brand: LG DISPLAY
Price: 1 USD

Buy cheap 34.0" 3440×1440 109PPI Square Tft Screen 320cd/m2 LM340UW1-SSA3 product

Brand Name : LG DISPLAY

Model Number : LM340UW1-SSA3

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Supply Ability : 600PCS

Delivery Time : 1-2 DAYS

Packaging Details : STANDARD PACKING

MODEL NUMBER : LM340UW1-SSA3

BRAND : LG DISPLAY

SIZE : 34.0INCH

BRIGHTNESS : 320CD/M2

Lamp Type : WLED

RESOLUTION : 3440(RGB)×1440 109PPI

VIEWING ANGLEG : 89/89/89/89 (Typ.)(CR≥10)

TEMPERATURE RANGE : Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

Contact Now

LG Display LM340UW1-SSA3 Application Details

Basic Information :	Brand LM340UW1-SSA3Model Type a-Si TFT-LCD , LCM Used For Screen Size 34 inch Alias LM340UW1 (SS)(A3)
Environment :	Storage Temp. -20 ~ 60 °C Operating Temp. 0 ~ 50 °C

LG Display LM340UW1-SSA3 Mechanical Details

Pixel Features :	Resolution 3440(RGB)×1440 Dot Pitch(mm) 0.0775×0.2535 (H×V) Pixel Format RGB Vertical Stripe Pixel Pitch(mm) 0.2325×0.2325 (H×V) [109PPI]
Mechanical Size :	Active Area(mm) 799.8(H) × 334.8(V) Bezel Area(mm) - Outline Dim.(mm) 820.8(H) × 361(V) Depth(mm) 11.8/19.8 (Typ./Max.)
Outline Features :	Form Style Flat Rectangle Shape Style 3-side borderless Aspect Ratio 21:9 (H:V) Orientation Landscape type
Mounting :	Rear mounting poles (13-M3)
Other Spec :	Weight 3.79/3.98Kgs (Typ./Max.) Treatment Antiglare, Hard coating (3H)

LG Display LM340UW1-SSA3 Optical Details

Basic Information :	Luminance(cd/m²) 320 (Typ.) Contrast Ratio 1000:1 (Typ.) (Transmissive) Viewing Angle 89/89/89/89 (Typ.)(CR≥10) Display Mode AH-IPS, Normally Black, Transmissive Best View on Symmetry Response(ms) 14 (Typ.)(G to G)
Color Performance :	White Coordinate Wx:0.313; Wy:0.329 Display Colors 1.07B (8-bit + Hi-FRC) Color Temperature 6485K White Uniformity 1.33 (Max.)(9 points)
1931 Color Gamlt :	NTSC Ratio 77% sRGB 100% coverage Adobe RGB 78% coverage DCI-P3 80% coverage Rec.2020 57% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

LG Display LM340UW1-SSA3 Interface Detail

Signal Electrical :	Voltage Supply 10.0V (Typ.) Current Supply 0.8/1.0A (Typ./Max.) Consumption 8.0/10W (Typ./Max.)
Signal Type :	eDP (4 Lanes) Logic Voltage -
Interface Features :	Position ConnectorType
Interface Detail :	Brand Model Pitch Pins Quantity Pin Configuration LS Mtron GT05Q-30S-H10-MN 0.5 mm 30 pins 1 pcs EDP-30P4L-050A

LG Display LM340UW1-SSA3 Backlight Details

Backlight Features :	Type WLED Quantity 3 strings × 2CN Position Edge light type (Bottom side) Replacement - Shape 3 strings × 2CN Life Time 30K(Min.) (Hours)
Lamp Electrical :	Voltage Supply 40.6±2.8V Current Supply 85/90mA (Typ./Max.) Consumption 20.7/22.1W (Typ./Max.)
Interface Features :	Position ConnectorType
Interface Detail :	Brand Model Pitch Pins Quantity Pin Configuration JST SM06B-SHJH(HF) 1.0 mm 6 pins 2 pcs BLE-6PINS-CNAACC
Backlight Driver :	No

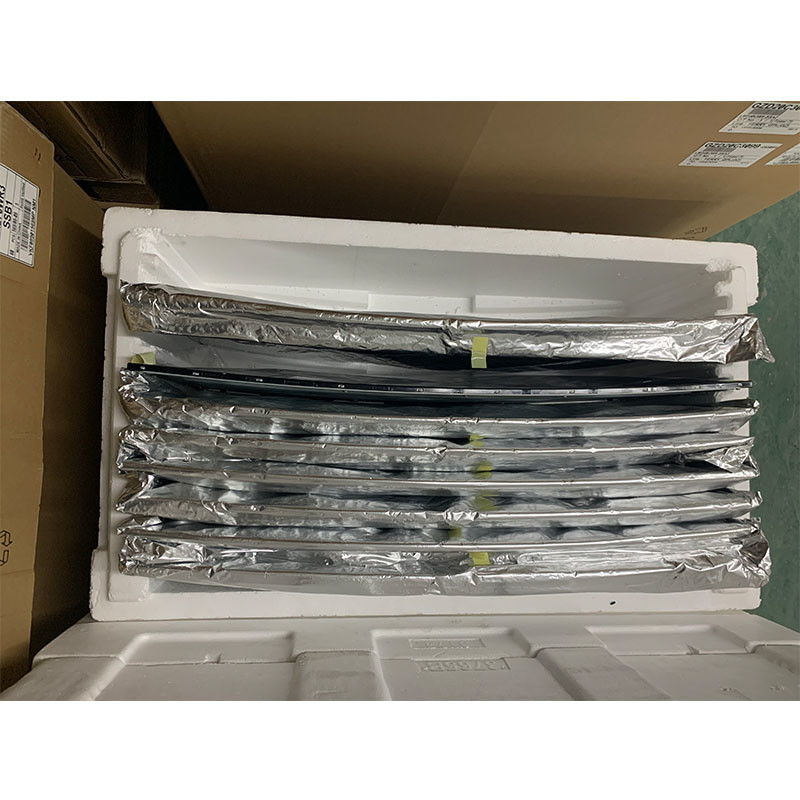

LG Display LM340UW1-SSA3 Packing Details

Package Box :	Quantity	Weight	Box Size
Package Box :	48 pcs / box	-	1140×990×1037 mm (L×W×H)

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
