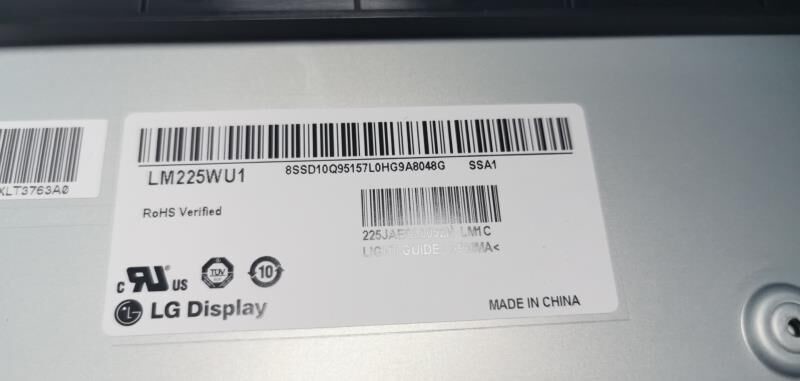

22.5in 250cd/m2 100PPI WLED TFT Panel LM225WU1-SSA1 89/89/89/89 (Typ.)(CR≥10)

Name: 225in 250cdm2 100PPI WLED TFT Panel LM225WU1SSA1 89898989 TypCR10
Brand: LG DISPLAY
Price: 1 USD

Buy cheap 22.5in 250cd/m2 100PPI WLED TFT Panel LM225WU1-SSA1 89/89/89/89 (Typ.)(CR≥10) product

Brand Name : LG DISPLAY

Model Number : LM225WU1-SSA1

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Supply Ability : 600PCS

Delivery Time : 1-2 DAYS

Packaging Details : STANDARD PACKING

MODEL NUMBER : LM225WU1-SSA1

BRAND : LG DISPLAY

SIZE : 22.5 inch

BRIGHTNESS : 250CD/M2

Lamp Type : WLED

RESOLUTION : 1920(RGB)×1200, WUXGA, 100PPI

VIEWING ANGLEG : 89/89/89/89 (Typ.)(CR≥10)

TEMPERATURE RANGE : Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

Contact Now

LG Display LM225WU1-SSA1 Application Details

Basic Information :	Brand		Model	LM225WU1-SSA1
	Type	LCM a-Si TFT-LCD	Used For
	Screen Size	22.5"	Alias	LM225WU1 (SS)(A1)
Environment :	Storage Temp.	-20 ~~ 60 °C	Operating Temp.	0 ~~ 50 °C

LG Display LM225WU1-SSA1 Mechanical Details

Pixel Features :	Resolution	1920(RGB)×1200, WUXGA	Dot Pitch(mm)	0.08475×0.24765 (H×V)
Pixel Features :	Pixel Format	RGB Vertical Stripe	Pixel Pitch(mm)	0.25425×0.24765 (H×V) [100PPI]
Mechanical Size :	Active Area(mm)	488.16(H) × 297.18(V)	Bezel Area(mm)	-
Mechanical Size :	Outline Dim.(mm)	496.2(H) × 313.9(V)	Depth(mm)	8.35/12.1 (Typ./Max>)
Outline Features :	Form Style	Flat Rectangle	Outline Shape	3-side borderless
Outline Features :	Aspect Ratio	-	Orientation	Landscape type
Mounting :	Rear mounting holes (9-M3)
Other Spec :	Weight	1.76Kgs (Typ.)	Treatment	Antiglare, Hard coating (3H)

LG Display LM225WU1-SSA1 Optical Details

Basic Information :	Luminance(cd/m²)	250 (Typ.)	Contrast Ratio	1000:1 (Typ.) (Transmissive)
	Viewing Angle	89/89/89/89 (Typ.)(CR≥10)	Display Mode	IPS, Normally Black, Transmissive
	Best View on	Symmetry	Response(ms)	14 (Typ.)(G to G)
Color Performance :	White Coordinate	X:0.313; Y:0.329	Display Colors	16.7M (6-bit + Hi-FRC)
Color Performance :	Color Temperature	6485K	White Uniformity	1.33 (Max.)(9 points)
1931 Color Gamlt :	NTSC Ratio	72%	sRGB	95% coverage
	Adobe RGB	74% coverage	DCI-P3	75% coverage
	Rec.2020	54% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

LG Display LM225WU1-SSA1 Interface Details

Signal Electrical :	Voltage Supply	5.0V (Typ.)		Current Supply	0.5/0.63A (Typ./Max.)
Signal Electrical :	Consumption	2.5/3.13W (Typ./Max.)
Signal Type :	LVDS (2 ch, 8-bit)			Signal Voltage	-
Interface Features :	Position	-		Type	Connector
Interface Detail :	Brand	Model	Quantity	Pins	Pitch	Pin Configuration
Interface Detail :	UJU	IS100-L30O-C23	1 pcs	30 pins	1.0 mm	LVDS-30P2C8B-160B

LG Display LM225WU1-SSA1 Backlight Details

Backlight Features:	Shape	3 strings	Type	WLED	Position	Edge light type (Bottom side)
Backlight Features:	Replacement	-	Quantity	3 strings	Life Time	30K(Min.) (Hours)
Lamp Electrical :	Voltage Supply	53±3.8V		Current Supply	55/60mA (Typ./Max.)
Lamp Electrical :	Consumption	8.8/9.4W (Typ./Max.)
Interface Features :	Position			Type	Connector
Interface Detail :	Brand	Model	Quantity	Pins	Pitch	Pin Configuration
Interface Detail :	YEONHO	10035WR-H06D	1 pcs	6 pins	1.0 mm	BLE-6PINS-CCAANC
Backlight Driver :	No

LG Display LM225WU1-SSA1 Electronics Details

Frame Rate :	60Hz
Reverse Scan :	No
Power Consumption :	11.3W (Typ.)

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
