LG Display LD550EQE-FPA1 Application Details
| Basic Information : | Brand | | Model | LD550EQE-FPA1 |
| Type | LCM a-Si TFT-LCD | Used For | |
| Screen Size | 55" | Alias | LD550EQE (FP)(A1) |
| Environment : | Storage Temp. | -20 ~~ 60 °C | Operating Temp. | 0 ~~ 50 °C |
LG Display LD550EQE-FPA1 Mechanical Details
| Pixel Features : | Resolution | 3840(RGB)×2160, UHD | Dot Pitch(mm) | 0.105×0.315 (H×V) |
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.315×0.315 (H×V) [80PPI] |
| Mechanical Size : | Active Area(mm) | 1209.6(H) × 680.4(V) | Bezel Area(mm) | 1214.6(H) × 685.4(V) |
| Outline Dim.(mm) | 1233.4(H) × 706.8(V) | Depth(mm) | 30.1 (Max.) |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 16:9 (H:V) | Orientation | Landscape / Portrait |
| Other Spec : | Weight | 14.6/15.3Kgs (Typ./Max.) | Treatment | Antiglare (Haze 28%), Hard coating (2H) |
LG Display LD550EQE-FPA1 Optical Details
| Basic Information : | Luminance(cd/m²) | 700 (Typ.) | Contrast Ratio | 1100:1 (Typ.) (Transmissive) |
| Viewing Angle | 89/89/89/89 (Min.)(CR≥10) | Display Mode | IPS, Normally Black, Transmissive |
| Best View on | Symmetry | Response(ms) | 8 (Typ.)(G to G) |
| Color Performance : | White Coordinate | X:0.279; Y:0.292 | Display Colors | 1.07B (8-bit + Dithering) |
| Color Temperature | 9972K | White Uniformity | 1.54 (Max.)(9 points) |
| 1931 Color Gamut : | NTSC Ratio | 79% | sRGB | 99% coverage |
| Adobe RGB | 77% coverage | DCI-P3 | 82% coverage |
| Rec.2020 | 59% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmissivity | - |
LG Display LD550EQE-FPA1 Interface Details
| Signal Electrical : | Voltage Supply | 12.0V (Typ.) | Current Supply | 1.06/1.38A (Typ./Max.) |
| Consumption | 12.66/16.46W (Typ./Max.) |
| Signal Type : | V-by-One 8 lane | Signal Voltage | - |
| Interface Features : | Position | - | Type | Connector |
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| JAE | FI-RE51S-HF | 1 pcs | 51 pins | 0.5 mm |
LG Display LD550EQE-FPA1 Backlight Details
| Backlight Features: | Shape | - | Type | WLED | Position | Edge light type |
| Replacement | - | Quantity | - | Life Time | 50K(Typ.) (Hours) |
| Lamp Electrical : | Voltage Supply | 97.9/106.3/112.3V (Min./Typ./Max.) | Current Supply | |
| Consumption | 76.9/83.8/91.2W (Min./Typ./Max.) |
| Interface Features : | Position | - | Type | Connector |
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| UJU | HS100-L08N-N62 | 1 pcs | 8 pins | 1.0 mm | BLE-8PINS-CCCCCCNA |
| UJU | HS100-L08N-N62-A | 1 pcs | 8 pins | 1.0 mm | BLE-8PINS-ANCCCCCC |
| Backlight Driver : | No |
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 1209.6(W)×680.4(H) mm, outline size of 1233.4(W)×706.8(H)×30.1(D) mm, viewing area size of 1214.6(W)×685.4(H) mm, with surface treament of Antiglare (Haze 28%), Hard coating (2H), net weight of 14.6/15.3Kgs (Typ./Max.). As a IPS, Normally Black, Transmissive LCM product, LD550EQE-FPA1 can provides 700 cd/m² display brightness 1100:1 transimissive contrast ratio, 89/89/89/89 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 8 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit + Dithering gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 79% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, external backlight driver is additionally needed. LD550EQE-FPA1 utilizes V-by-One 8 lane as it's signal inputting systerm, which connected by 51 pins Connector with power supply voltage of 12.0V (Typ.)
|
|

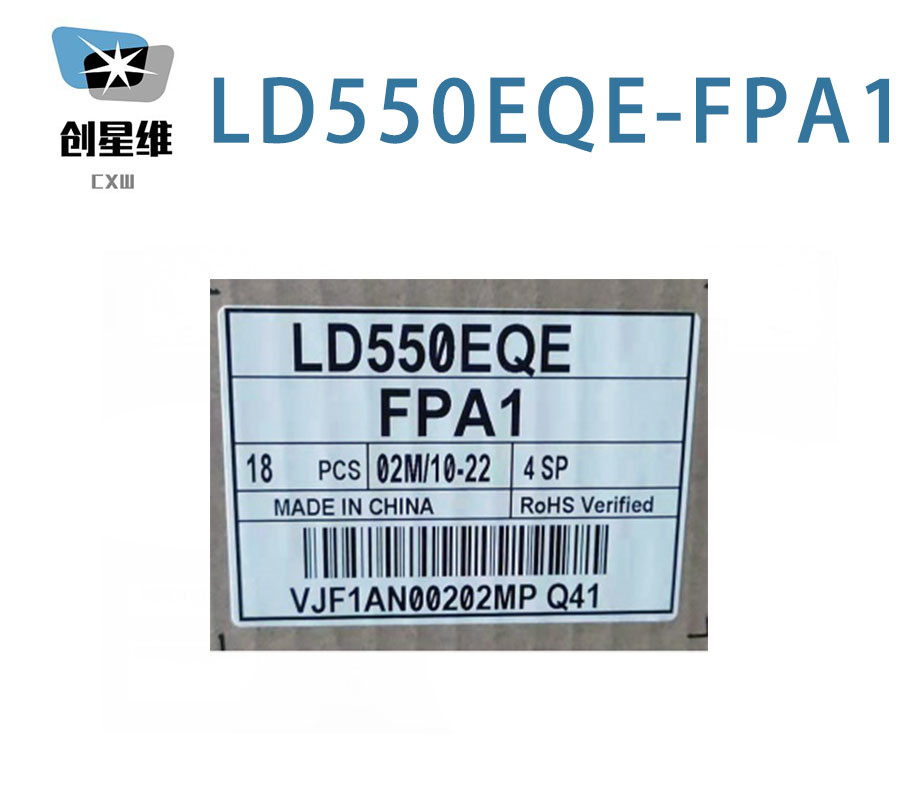

LD550EQE-FPA1 LG Display 55" 3840(RGB)×2160, 700 (Typ.)(cd/m²) INDUSTRIAL LCD DISPLAY Images
|
