Mitsubishi AA104SJ02 Application Details
| Basic Info : | Panel Brand | | Panel Model | AA104SJ02 1 Compatible |
| Diagonal Size | 10.4" | Application | |
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | T-51513D104J-LW-A-ANN |
| Reliability : | Operating Temp. | -30 ~ 80 °C | Storage Temp. | -30 ~ 80 °C |
| RoHS State | | Vibration Rating | 1.0G (9.8 m/s²) |
Mitsubishi AA104SJ02 Mechanical Details
| Pixel Features : | Pixel Format | 800(RGB)×600 [SVGA] | Dot Pitch | 0.088×0.264 mm (H×V) |
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.264×0.264 mm (H×V) [96PPI] |
| Mechanical Size : | Display Area | 211.2×158.4 mm (H×V) | Bezel Area | 215.4×161.8 mm (H×V) |
| Outline Dim. | 230×180.2 mm (H×V) | Outline Depth | 9.5±0.5 mm |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 4:3 (H:V) | Shape Style | |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel |
| Other Features : | Weight | 450g (Typ.) | Surface | Antiglare, Hard coating (3H) |
Mitsubishi AA104SJ02 Optical Details
| Basic Information : | Brightness | 600 cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Optical Mode | SWV, Normally Black, Transmissive |
| Viewing Direction | Symmetry | Response Time | 12/12 (Typ.)(Tr/Td) (ms) |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| Color Temperature | 6485K | White Uniformity | 1.30 (Max.)(5 points) |
| 1931 Color Gamut : | NTSC Ratio | 73% | sRGB | 97% coverage |
| Adobe RGB | 75% coverage | DCI-P3 | 76% coverage |
| Rec.2020 | 54% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
Mitsubishi AA104SJ02 Backlight Details
| Back-light Features: | Lamp Shape | - | Lamp Type | WLED | Life Time | 100K(Typ.) (Hours) |
| Replacement | No | Amount | - | Position | Edge light type |
| Interface Features : | Type | Connector | Position | - | Lamp Driver | With LED Driver |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JAE | FI-S6P-HFE | 1.25 mm | 6 pins | 1 pcs | |
| Driver Electrical : | Voltage Input | 12.0±1.2V | Current Input | 0.54A (Typ.) |
Mitsubishi AA104SJ02 Interface Details
| Signal Systerm : | LVDS (1 ch, 6/8-bit) | Logic Voltage | - |
| Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | 420mA (Typ.) |
| Interface Features : | Type | Connector | Position | | |
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JAE | FI-SEB20P-HFE | 1.25 mm | 20 pins | 1 pcs | LVDS-20P1C8B-010H |
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 211.2(W)×158.4(H) mm, outline size of 230(W)×180.2(H)×10(D) mm, viewing area size of 215.4(W)×161.8(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 450g (Typ.). As a SWV, Normally Black, Transmissive LCM product, AA104SJ02 can provides 600 cd/m² display brightness 1000:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 12/12 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 100K hours, With LED Driver. AA104SJ02 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.)
|
|

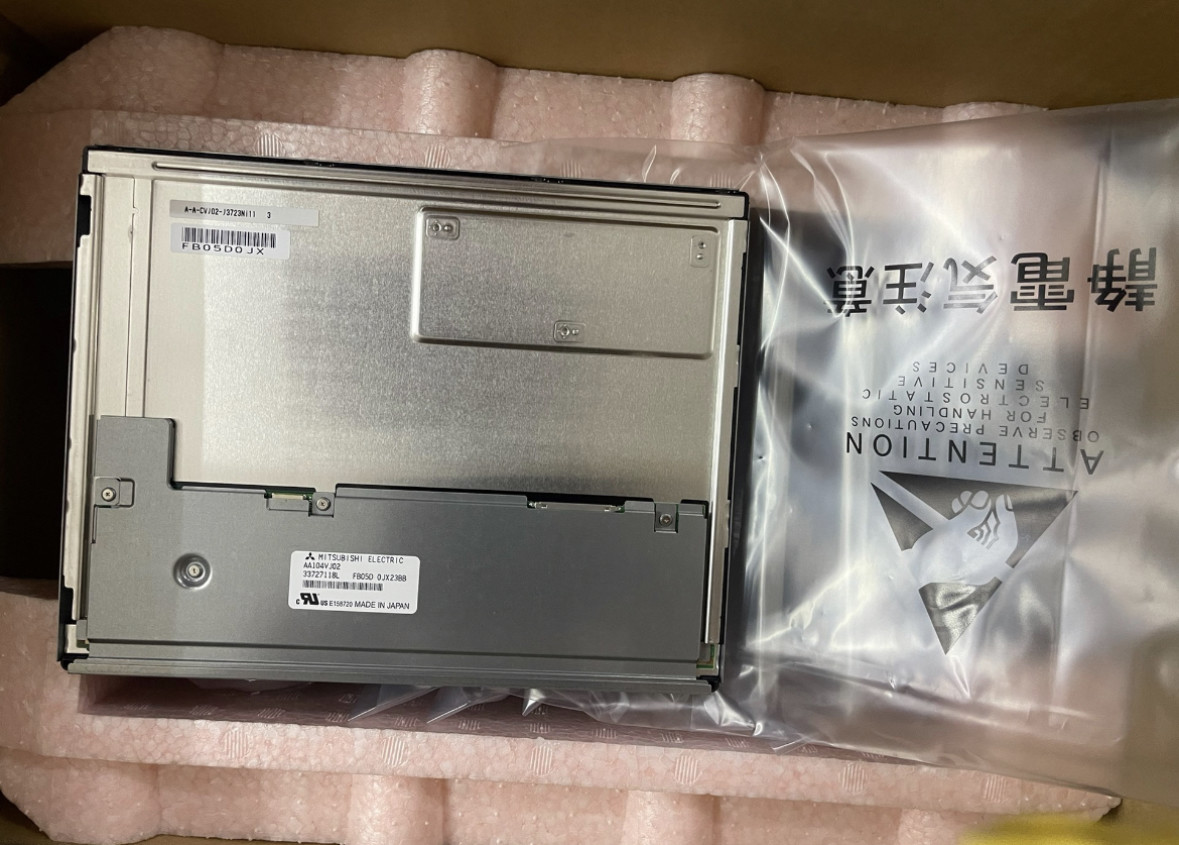

AA104SJ02 Mitsubishi 10.4" 800(RGB)×600, 600 cd/m² INDUSTRIAL LCD DISPLAY Images
|
